PREPARING YOUR RADIO FOR INITIAL
USE
Setting Up The Charger

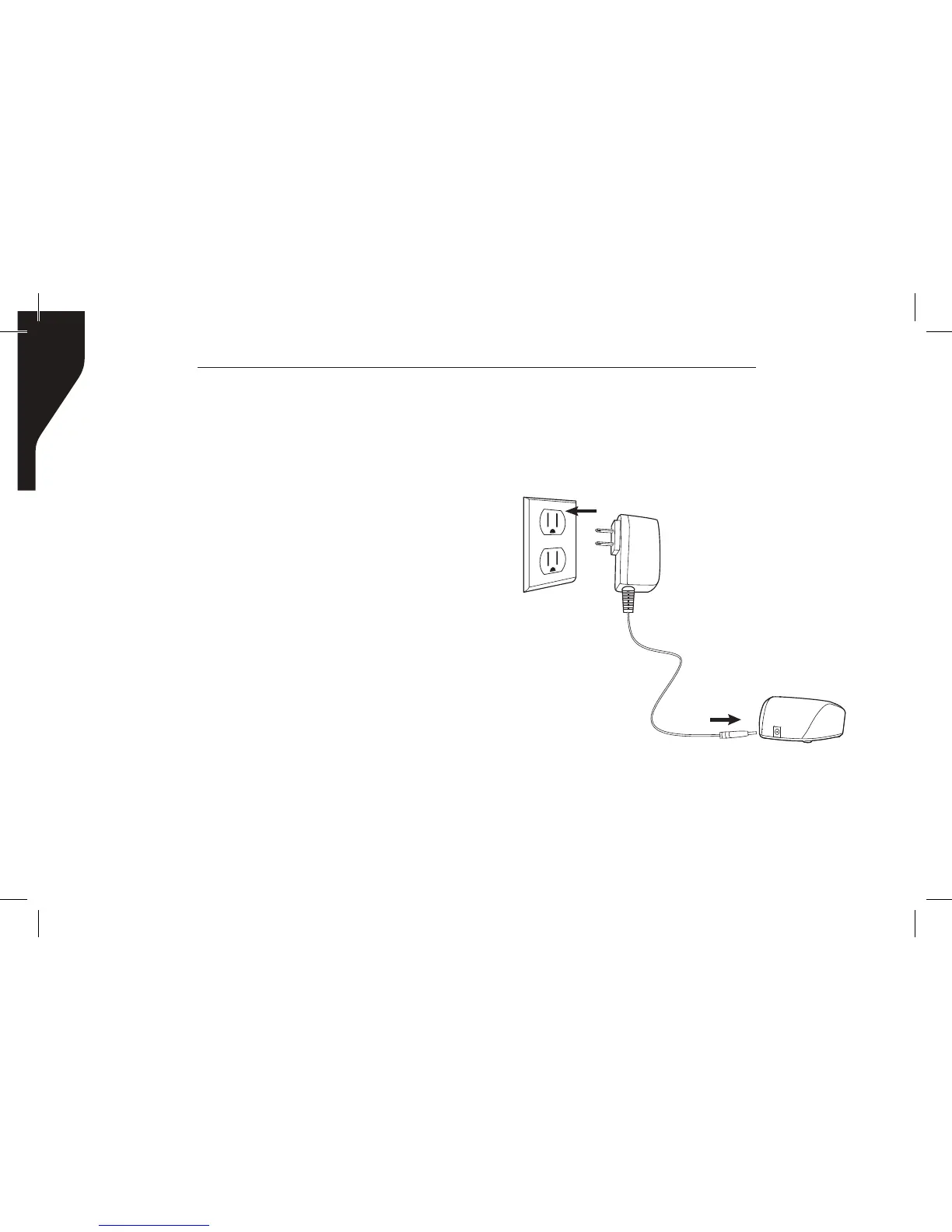

1. Plug the adapter’s AC connector into the AC
outlet socket. (See Figure 1)
2. Plug the adapter’s DC connector into the DC
socket on the back of the charger. (See Figure 2)
3. Place the radio with the battery attached, or
the battery alone, in the charger. (See Figure 3
on page 7.)
4. Make sure the battery contact is touching the
charging terminals. The charging process begins
when the red LED light on the battery charger
illuminates.
5. The green LED light on the battery charger
will illuminate approximately two hours later,
indicating the battery is fully charged.
Figure 1
Figure 2
