Connections & Setup

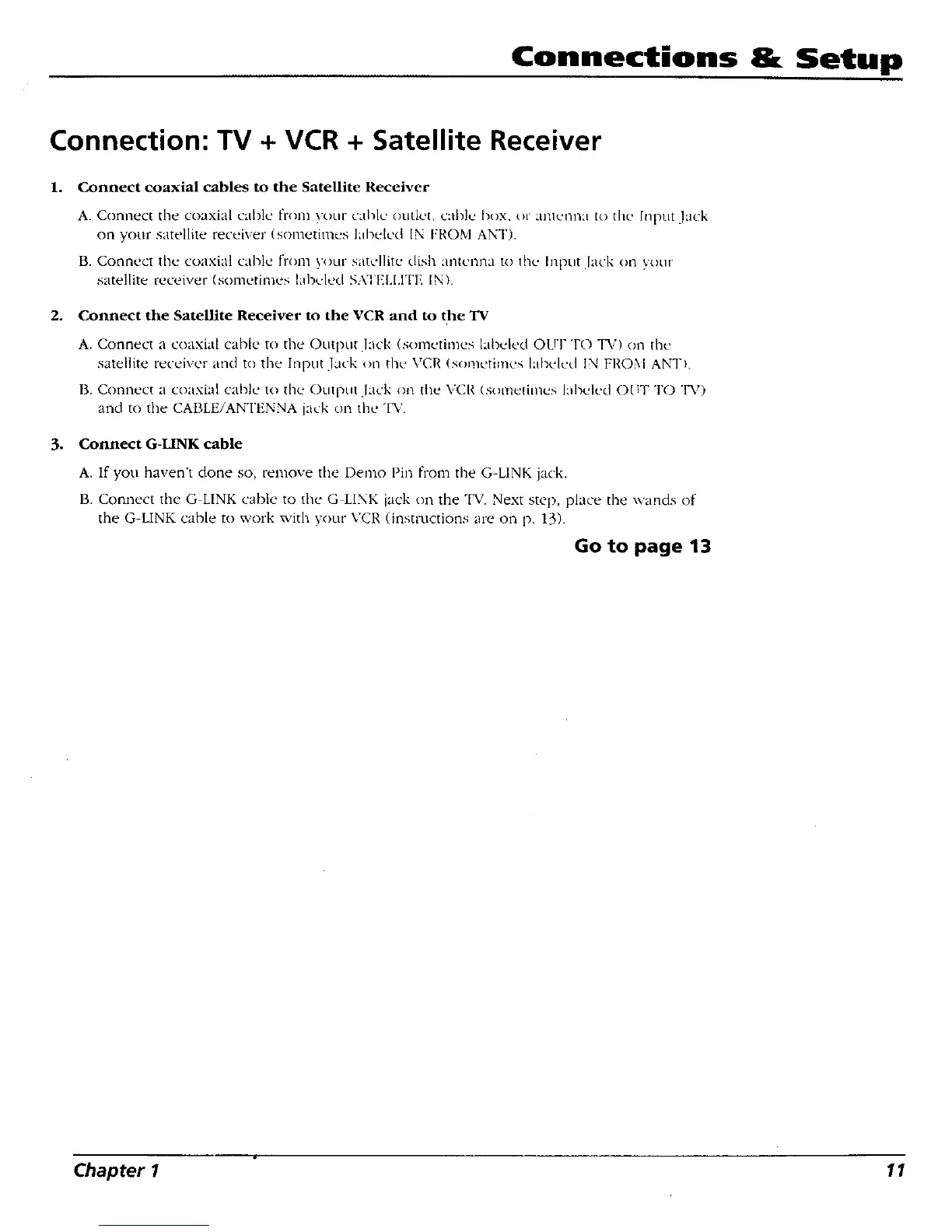

Connection: TV + VCR + Satellite Receiver
L Connect coaxial cables to the Satellite Receiver
A. Connect tile coaxial ca[)]c from VOUl tablc outl_'t, c:tt)]c box, or anl_'nna to the Input Jack
on your satellite rec_.iver tsometimes labeled IN FROM ANT).
B. Connect the coaxial cable flonl y<)klr satellite _.lisla antcnna to lhe lnptlt Jack on your
satellite receiver (sometimes labeled SAI'ELIYFE IN).
2. Connect the Satellite Receiver to the VCR and to the TV
A. Connect a coaxial cane to the Output Jack (sometimes labeled OUI" TO "IA,')on the
satellite receiver and to the Input Jack on tile VCR (sometimes labeled IN FROM ANI'}.
B. Connect a coaxial cable to the Output Jack on d_e VCR ¢,s(lulctinxcs labeled OUT TO "1%,')
and to the CABLE/ANTENNA jack on the TV.
, Connect G-LINK cable
A. If you haven't done so, remove the Demo Pin from the G-LINK jack.
B. Connect the G LINK cable to the G LINK jack on the TV. Next step, place the wands of
the G-LINK cable to work with your VCR (instructions are on p. !3).
Go to page 13
Chapter I 11
