RCA J22C760 - Page 24

Chapter 1: Connections and Setup
24

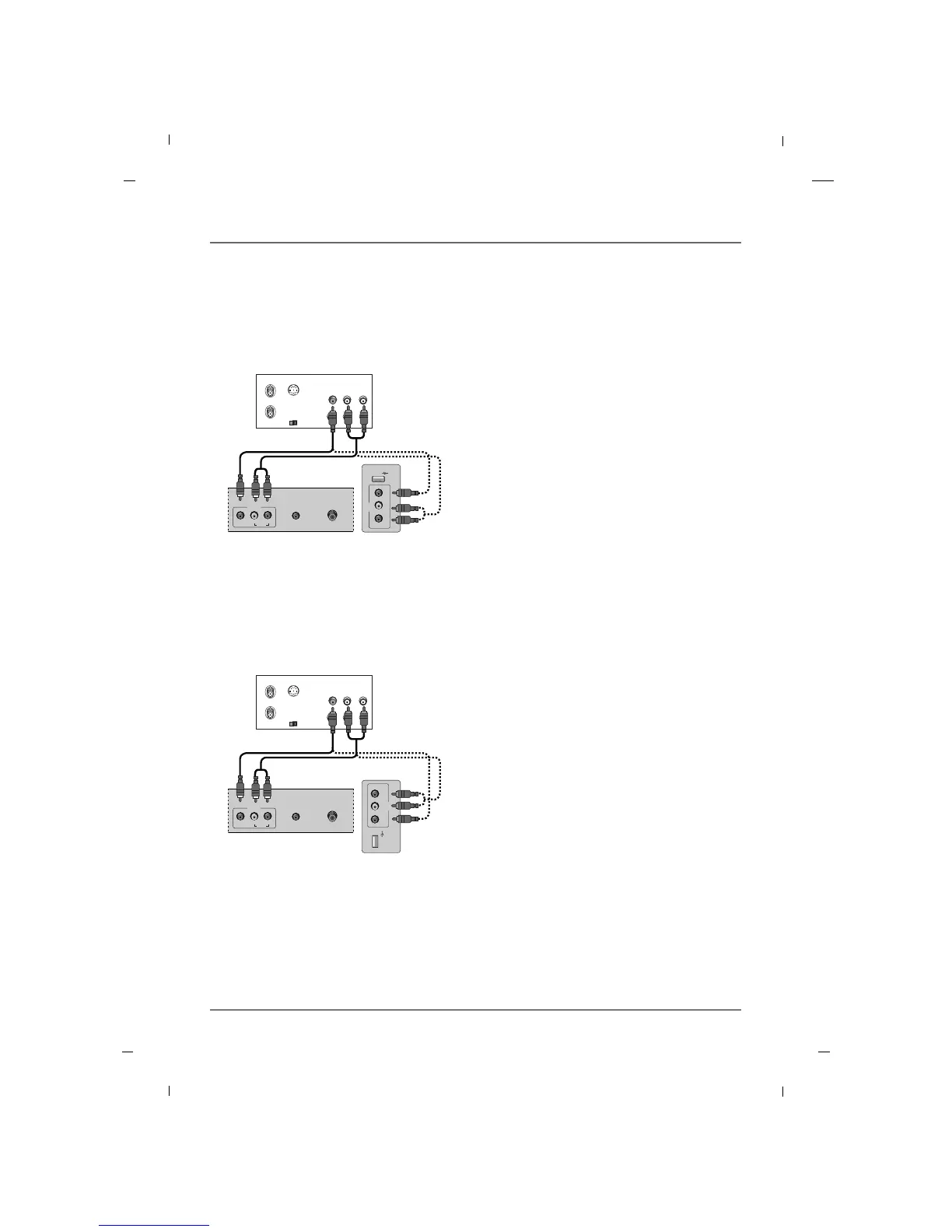

AA When connecting with an RCA cable - 42 inch
AV2
VIDEO L - AUDIO - R
USB IN
AUDIO IN
(RGB/DVI)
ANTENNA/
CABLE IN
AV1
AUDIO
L
VIDEO
R
ANT IN
ANT OUT S-VIDEO
IN
OUT
(L) AUDIO (R)VIDEO
OUTPUT
SWITCH
1. Connect the AUDIO/VIDEO jacks between TV and
VCR. Match the jack colors (Video = yellow, Audio
Left = white, and Audio Right = red)
2. Insert a video tape into the VCR and press PLAY
on the VCR.
3. Select the AV1 or AV2 input source using the
INPUT button on the remote control.
4. Refer to the VCR manual for operating instruc-
tions.
VCR
Rear panel of the set
Side panel of the set
Chapter 1
AA When connecting with an RCA cable - 32 inch
USB IN
AV2
VIDEO L - AUDIO - R
AUDIO IN
(RGB/DVI)
ANTENNA/
CABLE IN
AV1
AUDIO
L
VIDEO
R
ANT IN
ANT OUT S-VIDEO
IN
OUT
(L) AUDIO (R)VIDEO
OUTPUT
SWITCH
1. Connect the AUDIO/VIDEO jacks between TV and
VCR. Match the jack colors (Video = yellow, Audio
Left = white, and Audio Right = red)
2. Insert a video tape into the VCR and press PLAY
on the VCR.
3. Select the AV1 or AV2 input source using the
INPUT button on the remote control.
4. Refer to the VCR manual for operating instruc-
tions.
VCR
Rear panel of the set
Side panel of the set
