Chapter 1
Chapter 1: Connections and Setup
9

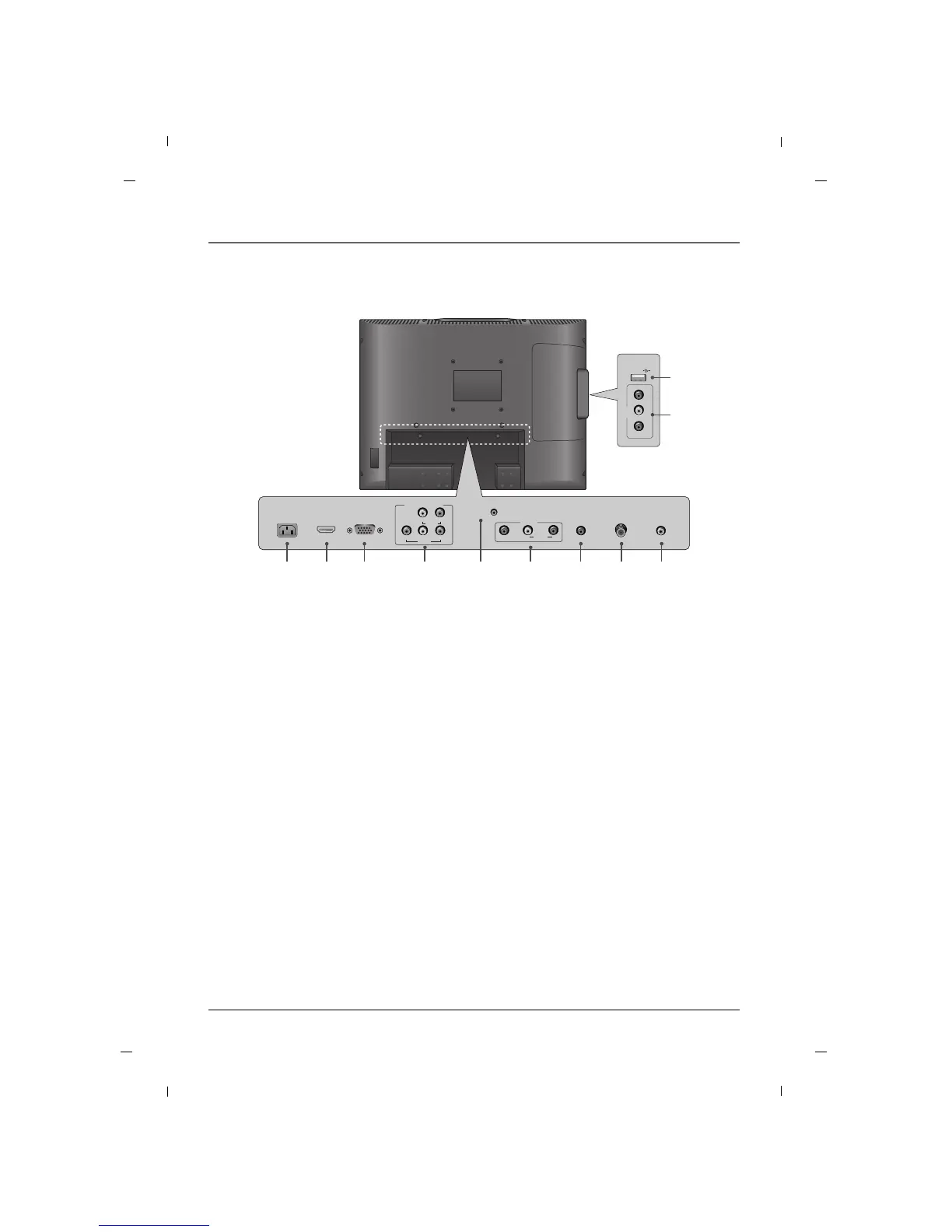

Rear Panel - J22C760
10
11
VIDEO
L-AUDIO-R
AV2
USB IN
HDMI/DVI
IN
RGB IN
(PC)
AUDIO IN
(RGB/DVI)
DIGITAL AUDIO
OUT(COAXIAL)
ANTENNA/
CABLE IN
3 7 8 92
VIDEO
YPbPr
LR
COMPONENT IN
AUDIO
4 651
AC IN
SERVICE
AV1
AUDIO
L
VIDEO
R
Note
- Image shown may differ from your TV.
1. AC IN
This TV operates on AC power.
2. HDMI/DVI IN
Connect to the HDMI jack on devices with an
HDMI output.
This input can also be used as a DVI connection
with separate analog audio inputs.
3. RGB IN (PC)
Connect to the video output jack on your PC.
4. COMPONENT IN (YPbPr)
Video/Audio inputs for Component.
5. SERVICE
Used by clone device to learn settings in TV.
6. AV1
Connects to your Audio/Video devices using a
composite (Yellow/Red/White) cable.
7. AUDIO IN (RGB/DVI)
Connect to the audio output jack on your PC.
8. ANTENNA/CABLE IN
Connect to your antenna or cable box for TV sig-
nal.
9. DIGITAL AUDIO OUT(COAXIAL)
Connect digital audio to various types of equip-
ment.
10.USB IN
USB device interface.
11.AV2
Connects to your Audio/Video devices using a
composite (Yellow/Red/White) cable.
