RCA RDR9000

Service Manual 2.Product Controls
3
2. Product Controls

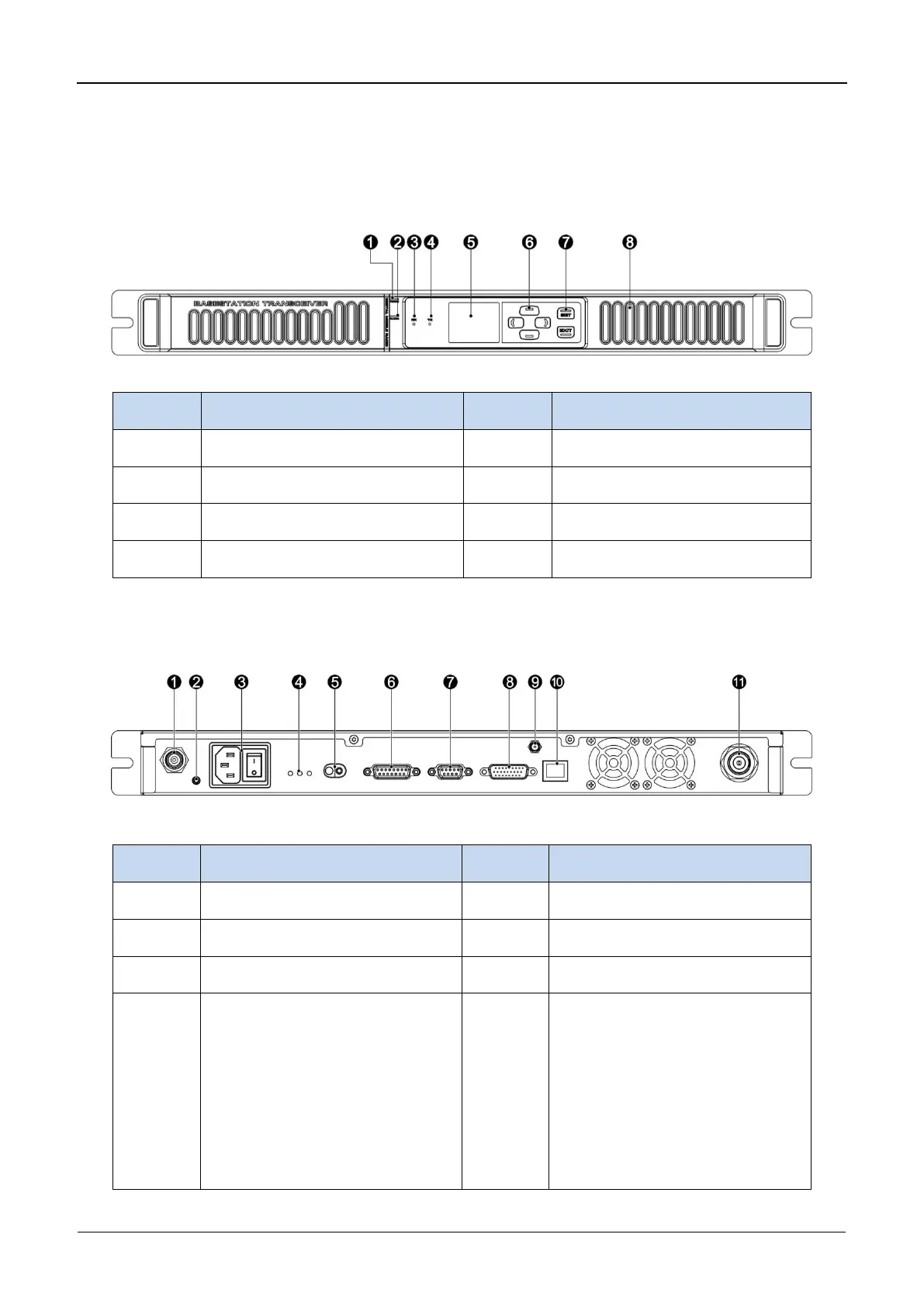

Front Panel
No.
Part Name
No.
Part Name
1
Power Indicator
5
LCD Display
2
Alarm Indicator
6
Navigation Keys
3
RX Indicator
7
SET/EXIT Key
4
TX Indicator
8
Speaker
Rear Panel
No.
Part Name
No.
Part Name
1
RX Connector (BNC)
7
DB9 Connector
2
Ground Screw
8
DB26 Connector
3
AC Power Inlet and Switch
9
SMA Connector
4
LED Indicators
 Green LED: Indicates
power supply is normal
when lit.
 Blue LED: Indicates
overload or short circuit
occurs for the power
10
RJ45 Ethernet Connector
