Service Manual 3. Baseband Section
16
3.3.3 Audio PA
TDA7297SA (U3009) is adopted as the audio PA for the repeater unit. This 10 W + 10 W dual
bridge amplifier of Class AB generates balanced output.

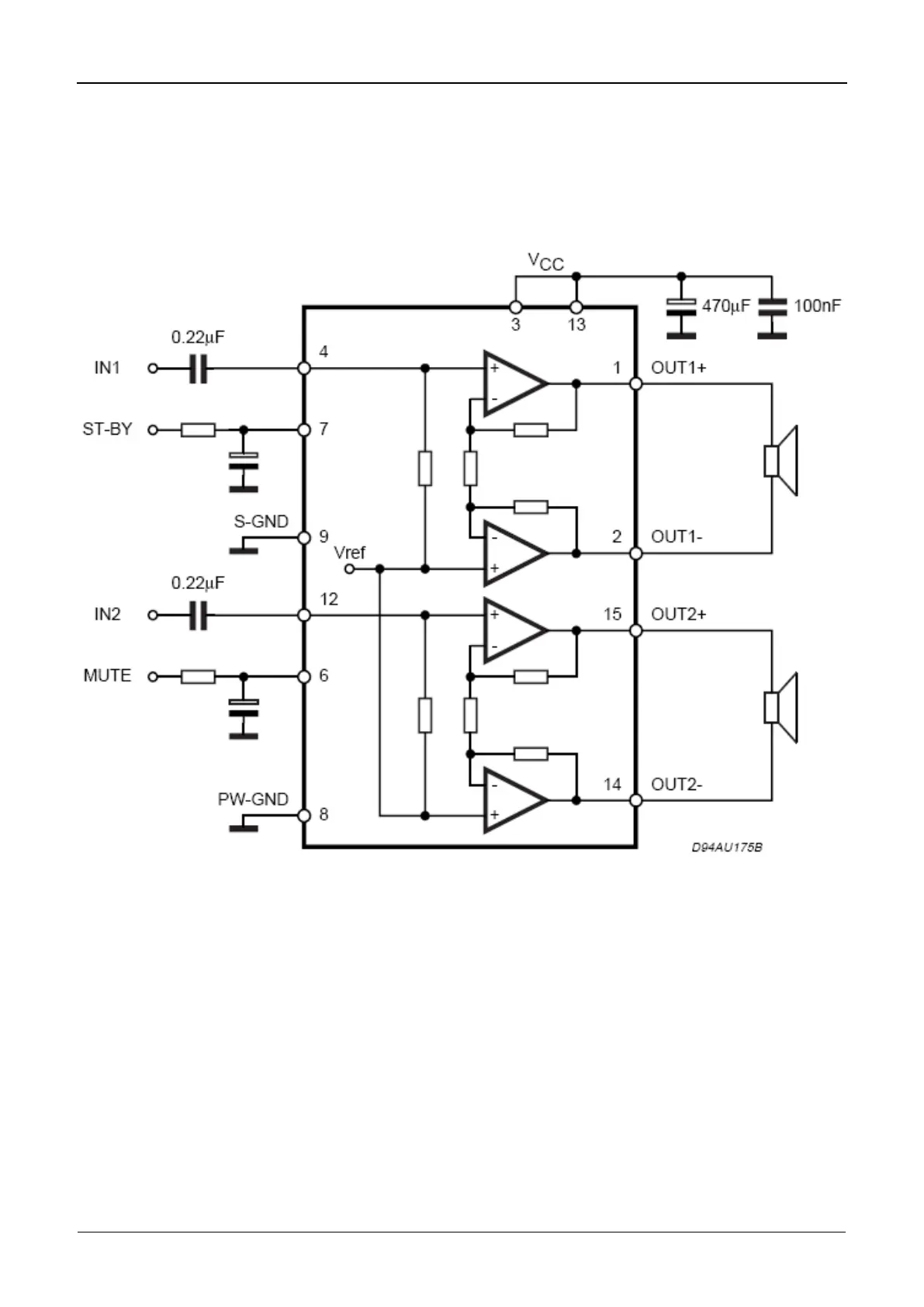

Figure 3-9 Diagram of Audio PA Circuit
