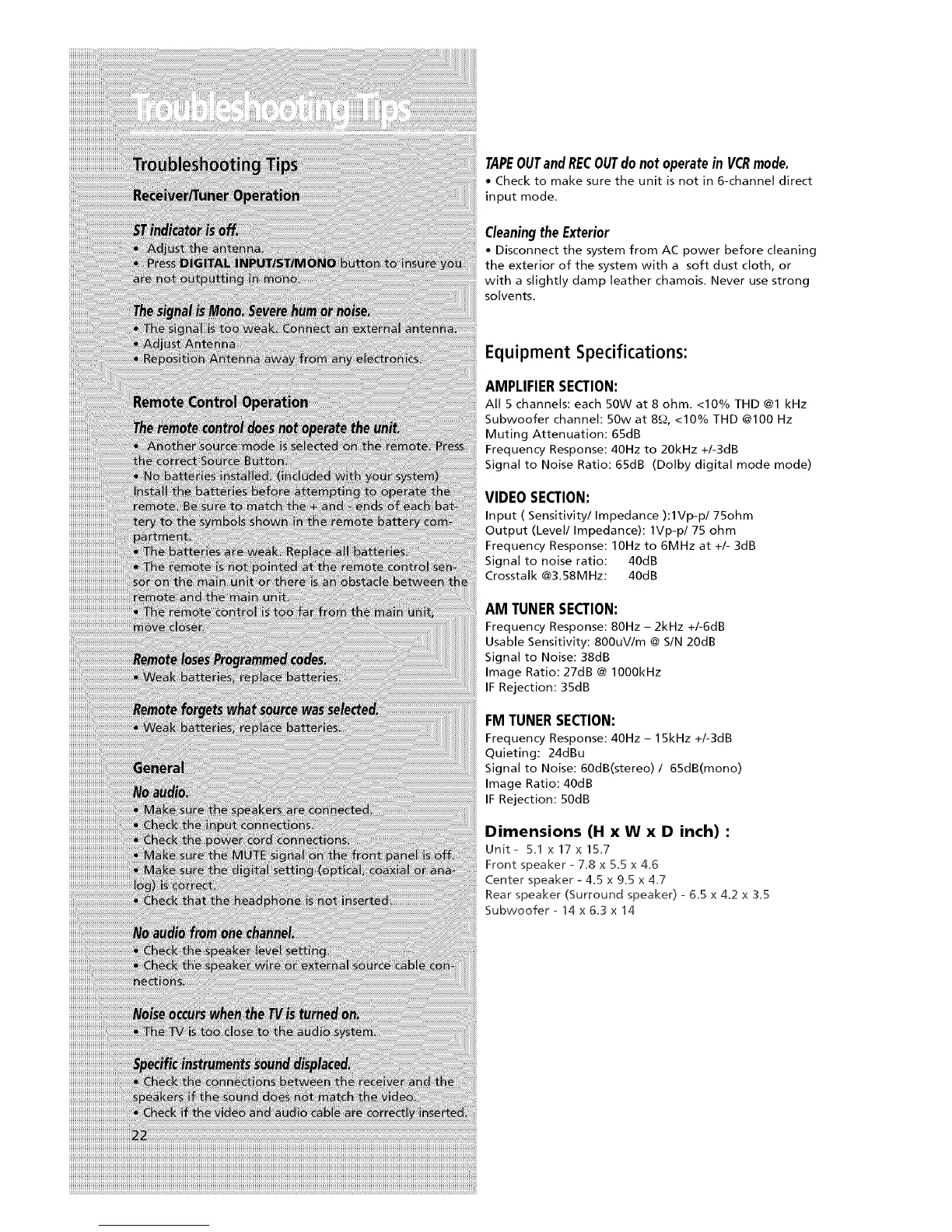

TAPEOUTandRECOUTdo notoperatein VCRmode.
• Check to make sure the unit is not in 6-channel direct
input mode.
CleaningtheExterior
• Disconnect the system from AC power before cleaning
the exterior of the system with a soft dust cloth, or
with a slightly clamp leather chamois. Never use strong
solvents.
Equipment Specifications:
AMPLIFIERSECTION:
All 5 channels: each 50W at 8 ohm. <10% THD @1 kHz
Subwoofer channel: 50w at 8_2, <10% THD @100 Hz
Muting Attenuation: 65dB
Frequency Response: 40Hz to 20kHz +/-3dB
Signal to Noise Ratio: 65dB (Dolby digital mode mode)
VIDEO SECTION:
Input ( Sensitivity/Impedance ):lVp-p/75ohm
Output (Level/Impedance): lVp-p/75 ohm
Frequency Response: 10Hz to 6MHz at +/- 3dB
Signal to noise ratio: 40dB
Crosstalk @3.58MHz: 40dB
AM TUNERSECTION:
Frequency Response: 80Hz - 2kHz +/-6dB
Usable Sensitivity: 800uV/m @ SIN 20dB
Signal to Noise: 38dB
Image Ratio: 27dB @ 1000kHz
IF Rejection: 35dB
FM TUNERSECTION:
Frequency Response: 40Hz - 15kHz +/-3dB
Quieting: 24dBu
Signal to Noise: 60dB(stereo) / 65dB(mono)
Image Ratio: 40dB
IF Rejection: 50dB
Dimensions (H x W x D inch) :
Unit- 5.1 x 17x 15.7
Front speaker - 7.8 x 5.5 x 4.6
Center speaker - 4.5 x 9.5 x 4.7
Rear speaker (Surround speaker) - 6.5 x 4.2 x 3.5
Subwoofer - 14 x 6.3 x 14
