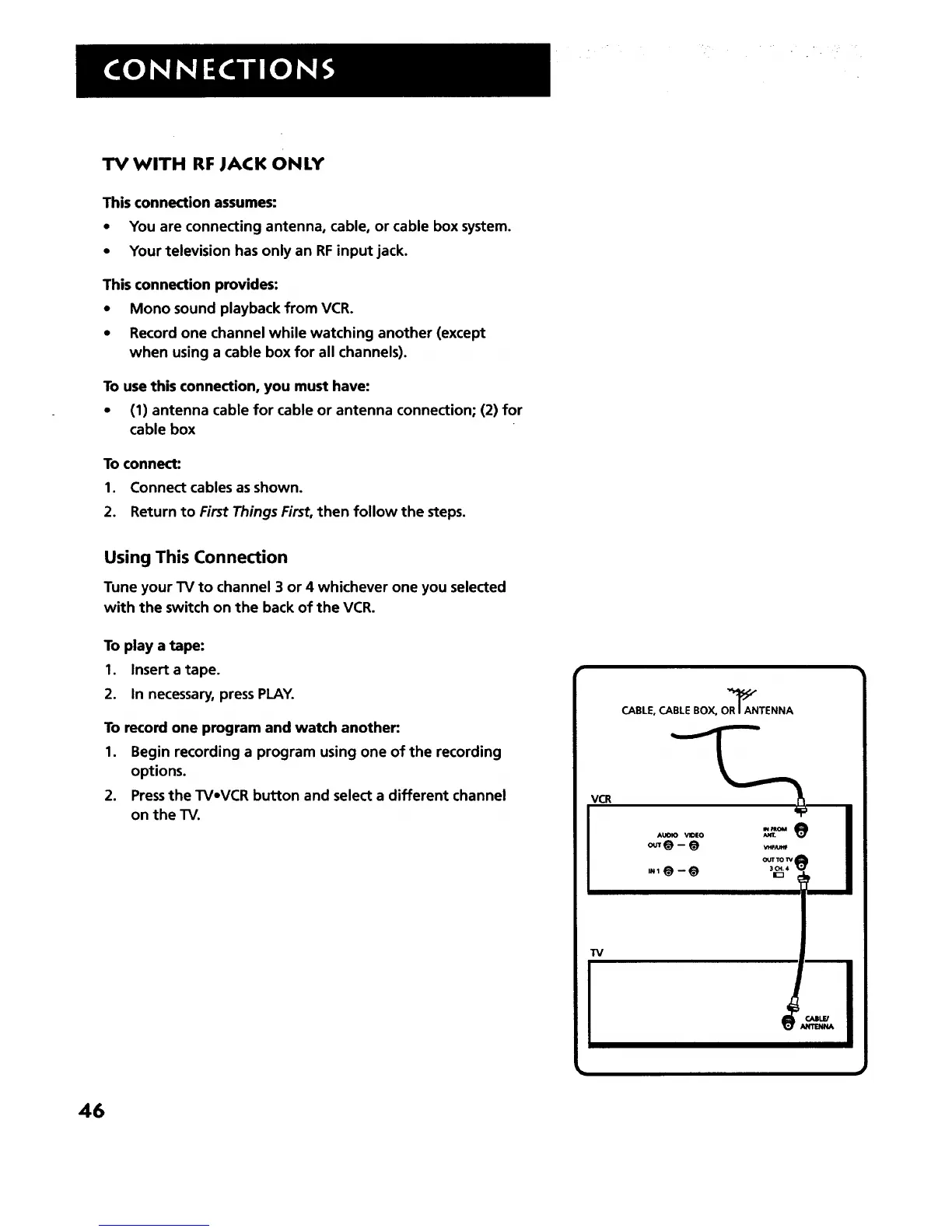

"IV WITH RF JACK ONLY
This connection assumes:
• You are connecting antenna, cable, or cable box system.
• Your television has only an RFinput jack.
This connection provides:
• Mono sound playback from VCR.
• Record one channel while watching another (except
when using a cable box for all channels).
To use this connection, you must have:
• (1) antenna cable for cable or antenna connection; (2) for
cable box
To connect:
1. Connect cables as shown.
2. Return to First Things First, then follow the steps.
Using This Connection
Tune your TV to channel 3 or 4 whichever one you selected
with the switch on the back of the VCR.
To play a tape:
1. Insert a tape.
2. In necessary,press PLAY.
To record one program and watch another:
1. Begin recording a program using one of the recording
options.
2. Pressthe TVoVCR button and select a different channel
on the "IV.
VCR
CABLE, CABLE BOX, OR_ANTENNA
AUDIO VIOEO ANT.
out@- @ ,.,,_,
,._@- _ _:_
"iV
46
