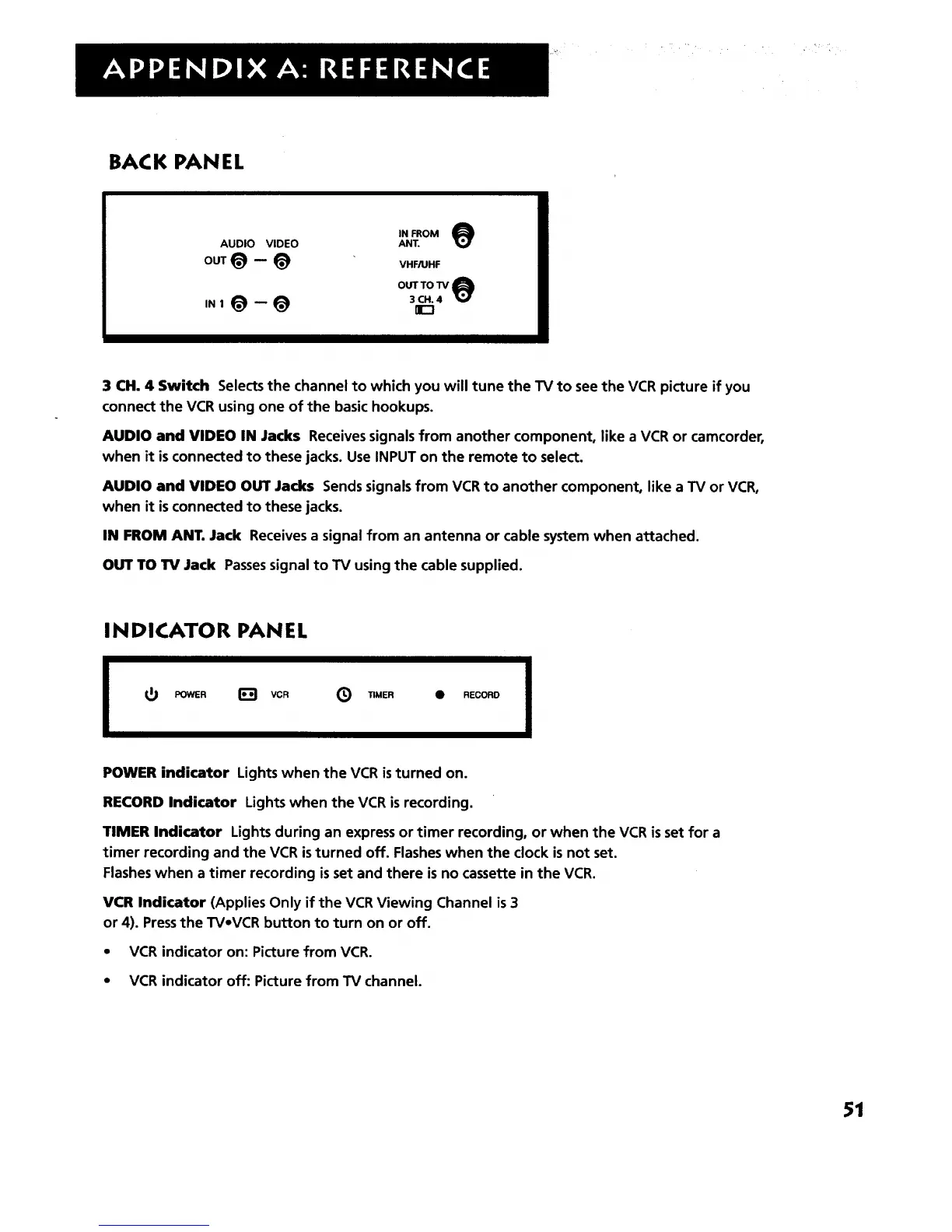

BACK PANEL
AUDIO VIDEO
IN FROM e
ANT.
OUT _) -- _) VHF/UHF
ourToTVe
IN1 @ -- @ 3CH. 4
RE3
3 CH. 4 Switch Selectsthe channel to which you will tune the TV to see the VCR picture if you
connect the VCR using one of the basic hookups.
AUDIO and VIDEO IN Jacks Receives signals from another component, like a VCR or camcorder,
when it is connected to these jacks. Use INPUT on the remote to select.
AUDIO and VIDEO OUT Jacks Sends signals from VCR to another component, like a TV or VCR,
when it is connected to these jacks.
IN FROM ANT. Jack Receives a signal from an antenna or cable system when attached.
OUT TO TV Jack Passessignal to TV using the cable supplied.
IN DICATOR PAN EL
_WER G VCR Q _.ER • RECORO
POWER indicator Lights when the VCR isturned on.
RECORD Indicator Lights when the VCR is recording.
TIMER Indicator Lights during an express or timer recording, or when the VCR is set for a
timer recording and the VCR isturned off. Flasheswhen the clock is not set.
Flasheswhen a timer recording isset and there is no cassette in the VCR.
VCR Indicator (Applies Only if the VCR Viewing Channel is 3
or 4). Pressthe TV-VCR button to turn on or off.
• VCR indicator on: Picture from VCR.
• VCR indicator off: Picture from TV channel.
