INSTALLATION

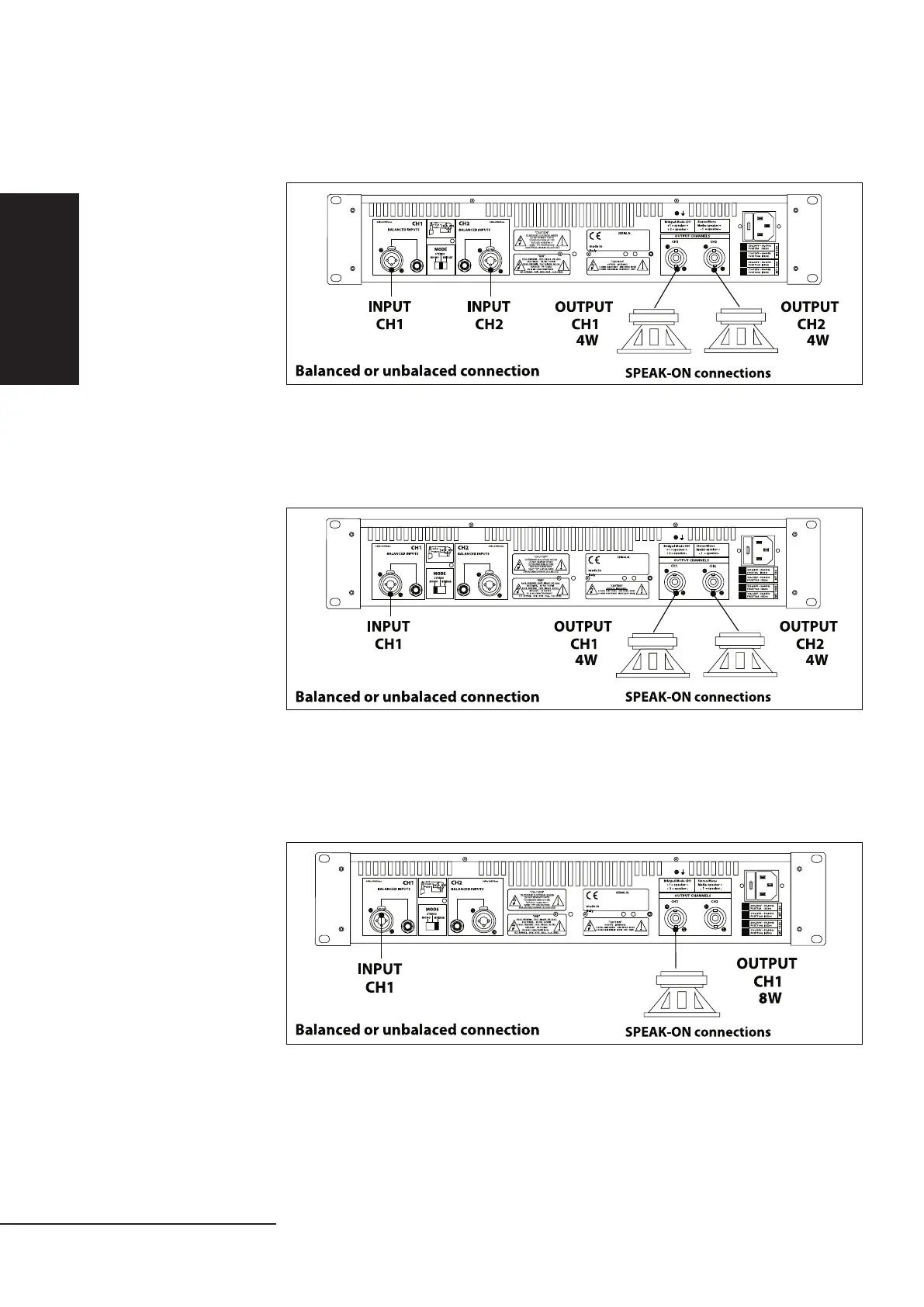

STEREO MODE
Set the MODE selector to STEREO.
Use both audio inputs and the respective volume controls.
The loudspeaker impedance must NOT be less than 4 Ω per channel.
MONO MODE
Set the MODE selector to MONO. Use the CH1 audio input only.
The CH1 volume control adjusts the level on both channels.
The loudspeaker impedance must NOT be less than 4 Ω per channel.
BRIDGE MODE
Set the MODE selector to BRIDGE. Use the CH1 audio input only.
The CH1 volume control adjusts the output level. Take the output signal from the CH1 SPEAKON
connector only. Note: pay attention to the particular SPEAKON connector wiring in BRIDGE mode.
The loudspeaker impedance must NOT be less than 8 Ω.
