RCF EVOX 8 User Manual

6
ENGLISH
RCF S.P.A. THANKS YOU FOR PURCHASING THIS PRODUCT, WHICH HAS BEEN
MADE TO GUARANTEE RELIABILITY AND HIGH PERFORMANCE.
DESCRIPTION
EVOX 12 is a portable active sound system (made of a satellite plus a subwoofer) that
combines quality and reliability of RCF transducers with high amplication power.
EVOX 12 features eight 4.0” full range transducers in the line source satellite and a deep
sounding 15” woofer in a bass reex enclosure.
INNOVATIVE DSP PROCESSING
EVOX DSP processing is the result of many years of experience in line array design
combined with innovative and dedicated algorithms. Thanks to the frequency dependent
drivers excursion and control of distortion, EVOX DSP processing is capable to guarantee
a high output from these small systems. A dedicated vocal processing has been specically
studied for speech reproduction during presentations or conferences.
RCF TECHNOLOGY
EVOX speakers include high technology RCF transducers.
The ultra-compact full-range 4” driver can handle extremely high sound pressure levels and
power. The high excursion woofers are able to extend to the lowest frequencies and offer
a quick and precise response up to the crossover point.
Specic attention has been dedicated to mid-low frequencies as well.
CONTROLLED DIRECTIVITY PATTERN
EVOX array design features a constant horizontal directivity coverage of 90°, offering a
perfect listening experience to the audience.
The vertical array design is progressively shaped to guarantee a correct listening from the
rst row.
MULTIFUNCTIONAL TOP HANDLE
The top steel plate joins the handle and the insert for pole mounting.
A rubber hand grip has been added for great portability.
CLASS D AMPLIFICATION
EVOX systems include high power class D ampliers.
Each system features a two-way amplier with DSP controlled crossover.

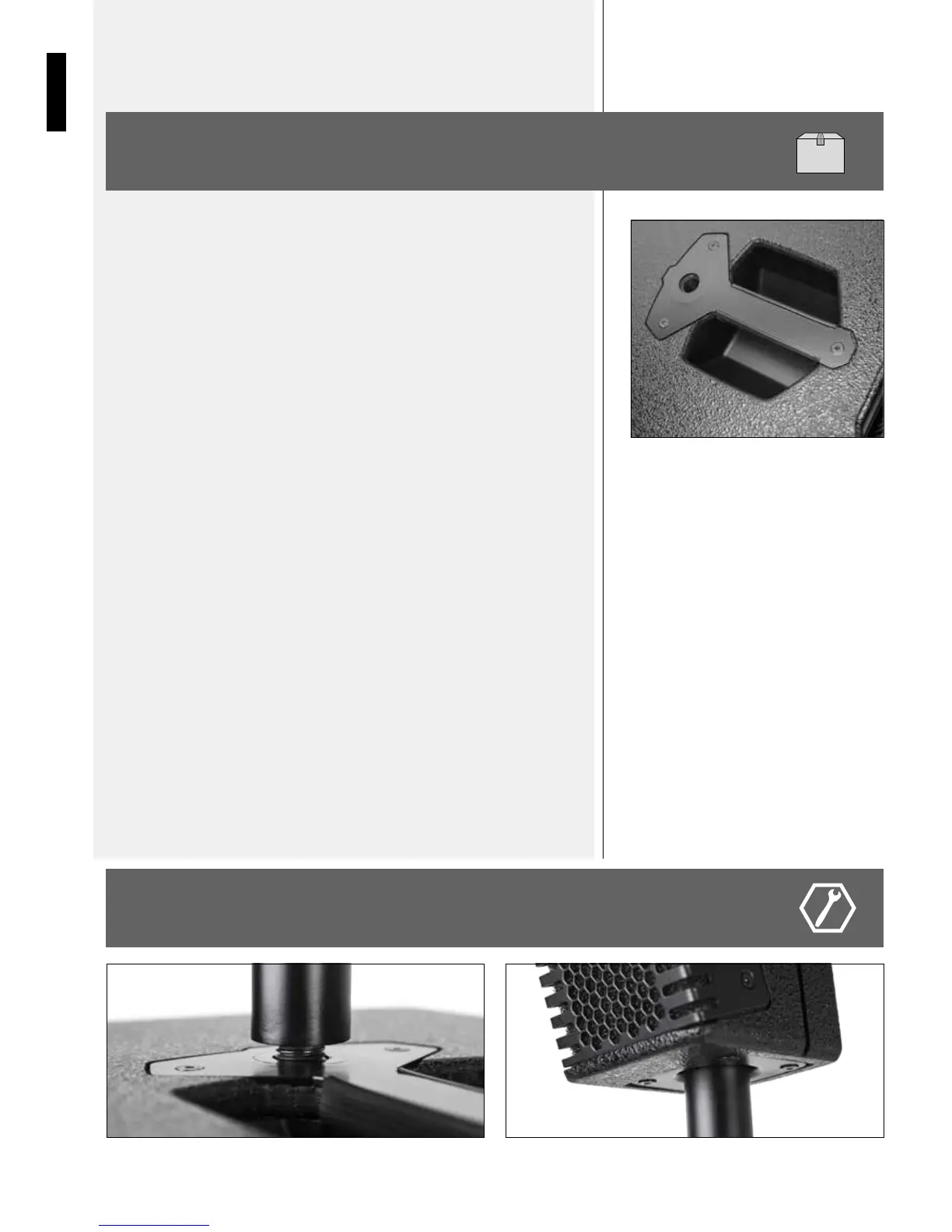

INSTALLATION
Loose the stand bolt, adjust the satellite speaker height from the oor
and tighten the bolt again, then insert the satellite speaker into its
complete stand and aim it correctly.
Screw the lower part of the satellite speaker stand (the pole) into the
subwoofer insert for pole mounting.

RCF EVOX 8 Specifications

General

Max SPL	128 dB
Input Connectors	XLR, Jack
Vertical Coverage Angle	30°
Total Power	1400 W Peak
HF Power	400 W Peak
LF Power	1000 W Peak
Amplifier Class	Class D
Output Connectors	XLR
Protections	Thermal, RMS
Limiter	Soft Limiter
Controls	Volume, EQ
Cabinet Material	Baltic birch plywood
Hardware	Pole mount
Color	Black
Weight	23.8 kg
LF Driver	12", 2.5" voice coil
Input Sensitivity	+4 dBu
Standard Compliance	CE
Woofer	12"
Crossover Frequency	2.2 kHz
