RCF EVOX 8 User Manual

7
ENGLISH
INSTALLATION

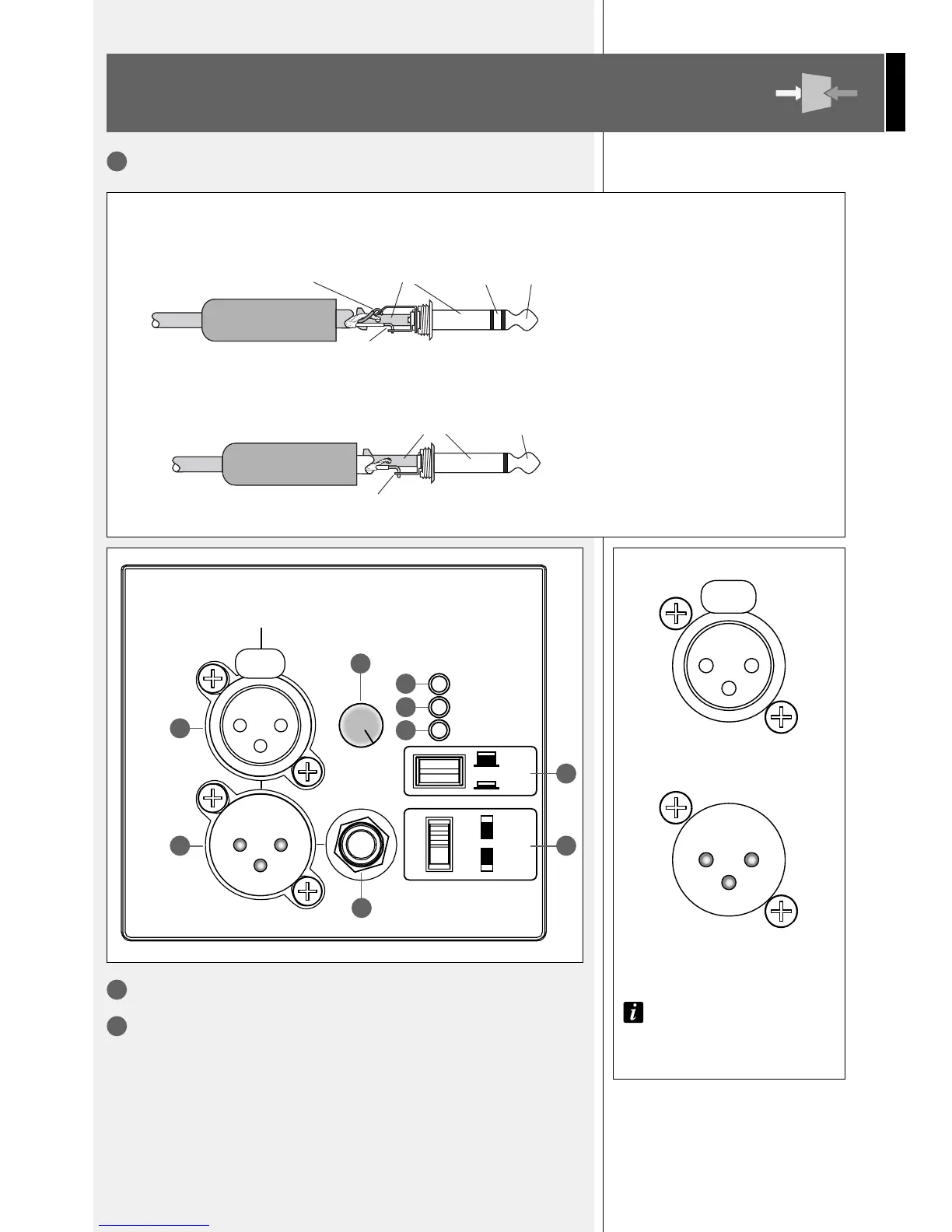

SUBWOOFER REAR PANEL
AND CONNECTIONS
1/4” TRS JACK CONNECTOR
UNBALANCED CONNECTION
TIP: SIGNAL
SLEEVE: GND
BALANCED CONNECTION
TIP: + HOT
RING: – COLD
SLEEVE: GND
ring = cold (–) sleeve (gnd) ring tip
tip
= hot (+)
sleeve (gnd) tip
tip
= signal
1
Balanced audio input (1/4” TRS jack)
2
Balanced audio input (female XLR connector)
3
Balanced parallel audio output (male XLR connector).
This output is linked in parallel with the audio input and is useful to connect another
amplier.
Female XLR connector
PUSH
2 1
3
Male XLR connector
21
3
PUSH
2 1
3
21
3
MAX
VOLUME
LIMITER
FLAT
BOOST
LINE
MIC
SIGNAL
STATUS
BALANCED
INPUT/LINK
INPUT SENSITIVITY
– 󰌨
2
3
4
7
8
9
6
5
1
Xlr pins:
1 ground, 2 audio signal (+ , hot),
3 audio signal (–, cold).

RCF EVOX 8 Specifications

General

Max SPL	128 dB
Input Connectors	XLR, Jack
Vertical Coverage Angle	30°
Total Power	1400 W Peak
HF Power	400 W Peak
LF Power	1000 W Peak
Amplifier Class	Class D
Output Connectors	XLR
Protections	Thermal, RMS
Limiter	Soft Limiter
Controls	Volume, EQ
Cabinet Material	Baltic birch plywood
Hardware	Pole mount
Color	Black
Weight	23.8 kg
LF Driver	12", 2.5" voice coil
Input Sensitivity	+4 dBu
Standard Compliance	CE
Woofer	12"
Crossover Frequency	2.2 kHz
