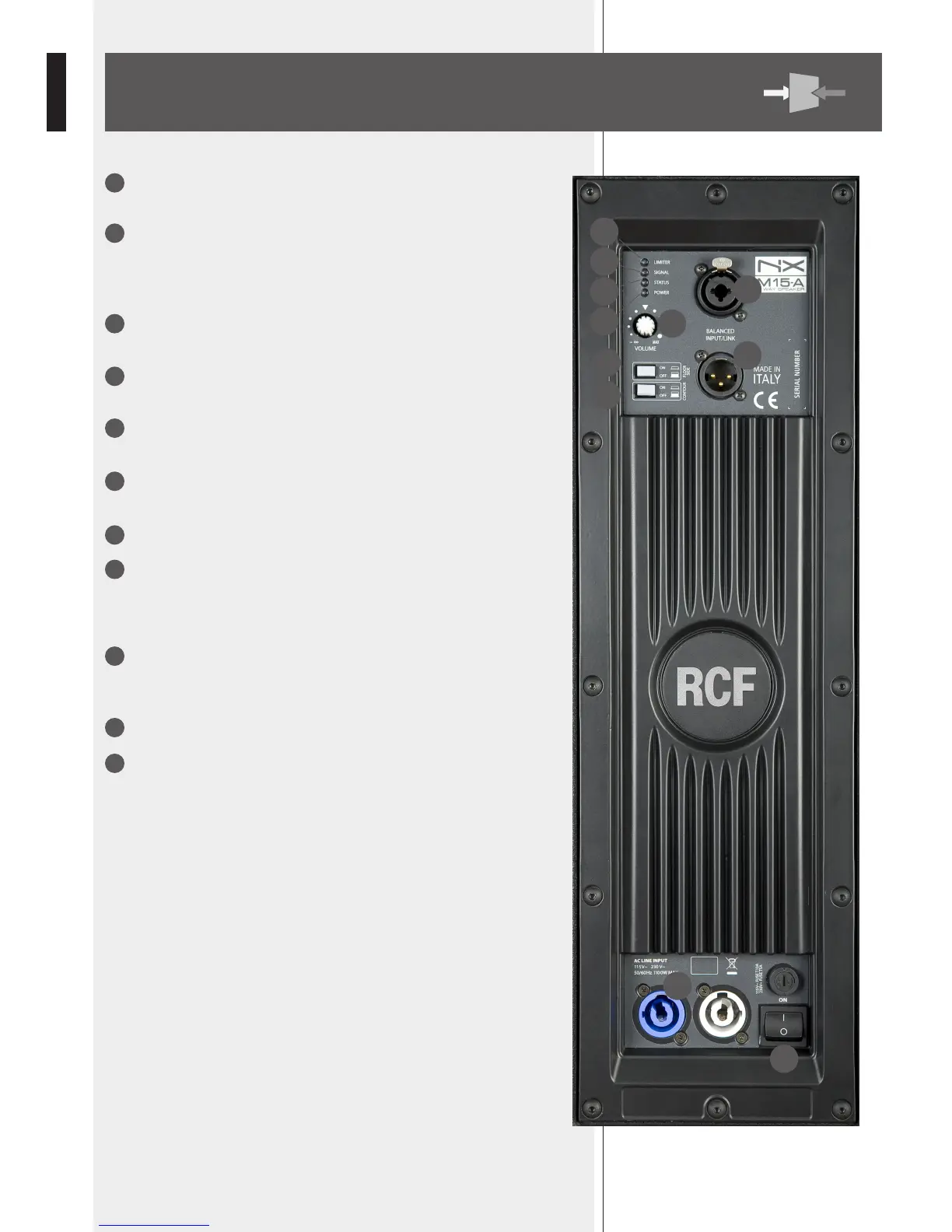

REAR
PANEL
9
8
1
6
7
11
10
2
3
4
5
JACK/FEMALE XLR INPUTS (BAL/UNBAL). The system accept jack or XLR
input connectors.
LIMITER LED. The amplifier has a built in limiter circuit to prevent clipping of
the amplifiers or overdriving the transducers. When the soft clipping circuit is active
the LED blinks orange. It is okay if the limit LED blinks occasionally. If the LED blinks
frequently or lights continuously, turn down the signal level.
SIGNAL LED. The signal indicator lights green if there is signal present on the
main XLR input.
STATUS LED. The status indicator flash if the temperature protection is
active.
POWER LED. This green led is ON when the speaker is connected to the
main power supply and the ON/OFF is in ON position.
MALE XLR SIGNAL OUTPUT. The output XLR connector provides a loop
trough for speakers daisy chaining.
VOLUME CONTROL. Adjust the amplifier volume.
CONTOUR SWITCH. Set the flat or shaped equalization. “Contour” equalization
is a loudness recommended for background music applications, when the
system plays at a low level. For all other applications normal flat equalisation is
recommended.
FLOOR/SIDE SWITCH. Set a specific equalisation for stage monitor position
or in case of two speaker “side to side” (reduction of mid-lows and improvement
of vocal clarity).
NEUTRIK POWERCON AC IN-OUT SOCKET. In-Out AC Powercon Sockets.
POWER MAIN SWITCH. The power switch turns the AC power ON and OFF.
1
2
3
4
5
6
7
8
9
10
11
