WorkHorse Mariner ADCP User's Guide
P/N 957-6169-00 (April 2005) page 5

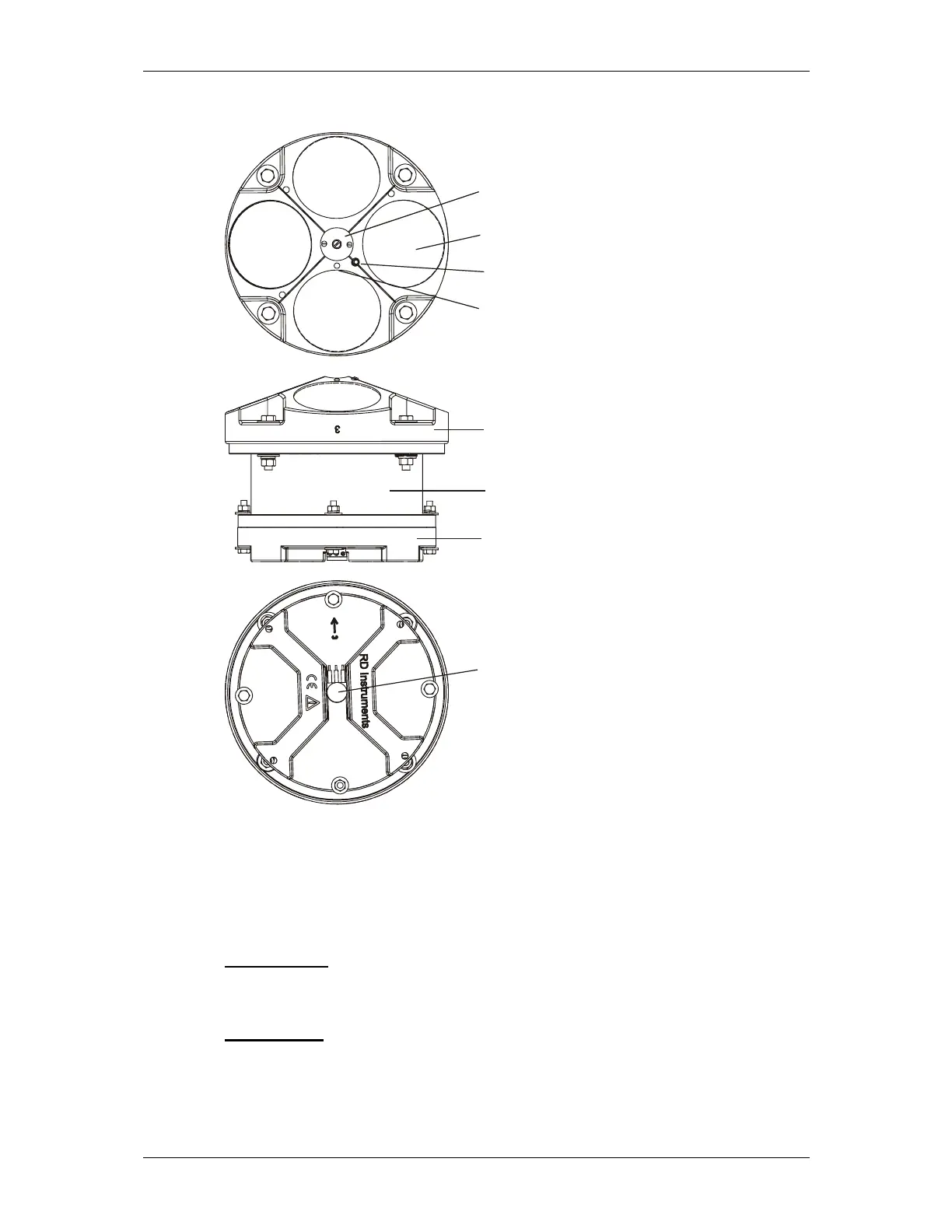

URETHANE FACE
BEAM 3 MARK
THERMISTOR
PRESSURE SENSOR
(OPTIONAL)
TRANSDUCER
HEAD
HOUSING
END-CAP
I/O CABLE
CONNECTOR
Figure 2. Mariner ADCP Overview
3.2 Deck Box Overview
The deck Box contains all interfaces to/from the ADCP, computer/terminal,
optional vessel gyrocompass, and power.
Power Switch – The power switch is a combination switch/circuit breaker.
The Power Status LED next to the circuit breaker lights when power is ap-
plied to the Deck Box.
Reset Button – Pushing the Reset button sends a break to the ADCP.
