Installation
SAE Flange Coupling
3. Fit the 1/8" BSP - 1/4" BSP Adaptor
and Dowty seal to one of the two 1/8"
BSP ports on the flange. Fit the
blanking plug with Dowty seal to the
remaining 1/8" BSP port (fig. 3).
4. Slacken and remove the four flange
fixing bolts and split the coupling.
Insert the flange plate ensuring that
the 'O' rings are properly seated and
that the 1/4" BSP port is in a
convenient orientation.
5. Replace the hose using the longer
bolts provided in the kit. Take care to
ensure the 'O' rings stay in place.
Check the 1/8" BSP port is oriented to
allow room to connect the hose (fig.
4).
Torque the bolts as per the manufac-
turers recommendation. If this is not
known use the following torques:
¾" flange 21-29 lb-ft 2.8-3.9 kgm
1" flange 27-35 lb-ft 3.6-4.8 kgm
1¼" flange 35-45 lb-ft 4.8-6.2 kgm

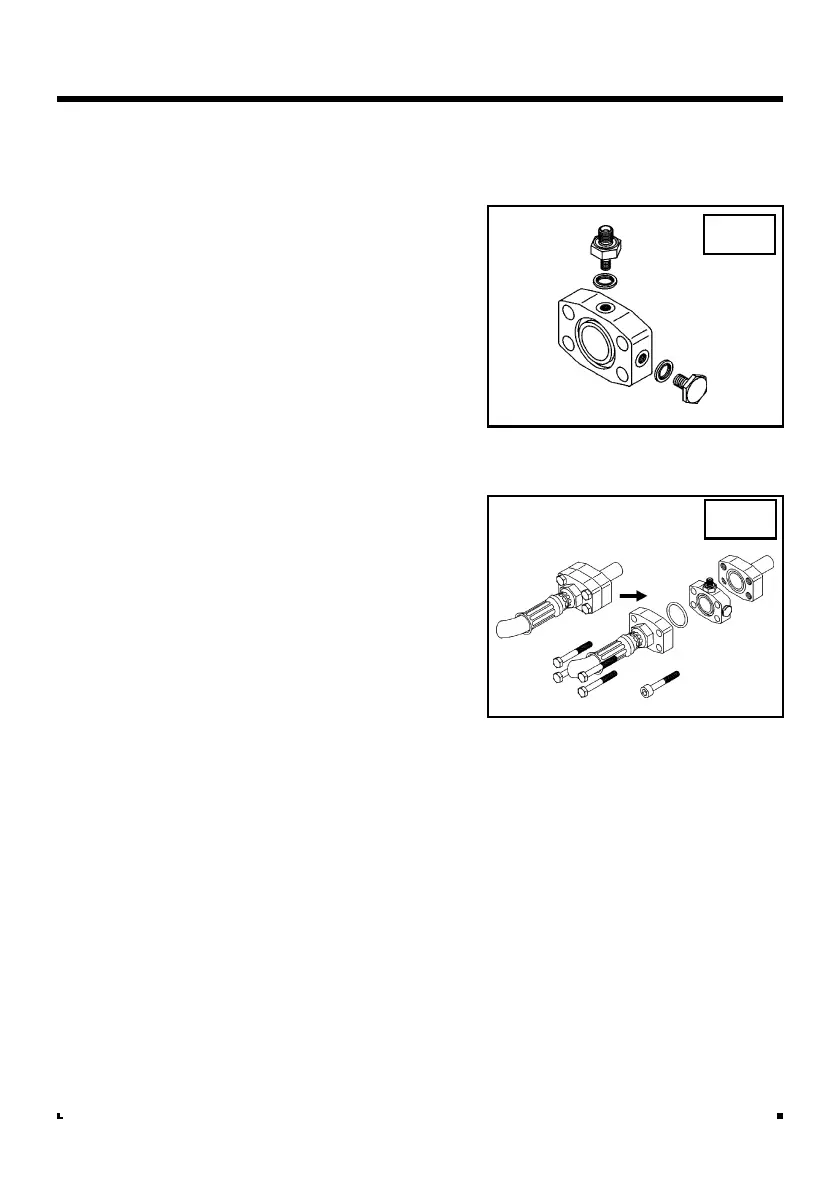

Fig. 3
Fig. 4
