Servicing (continued):

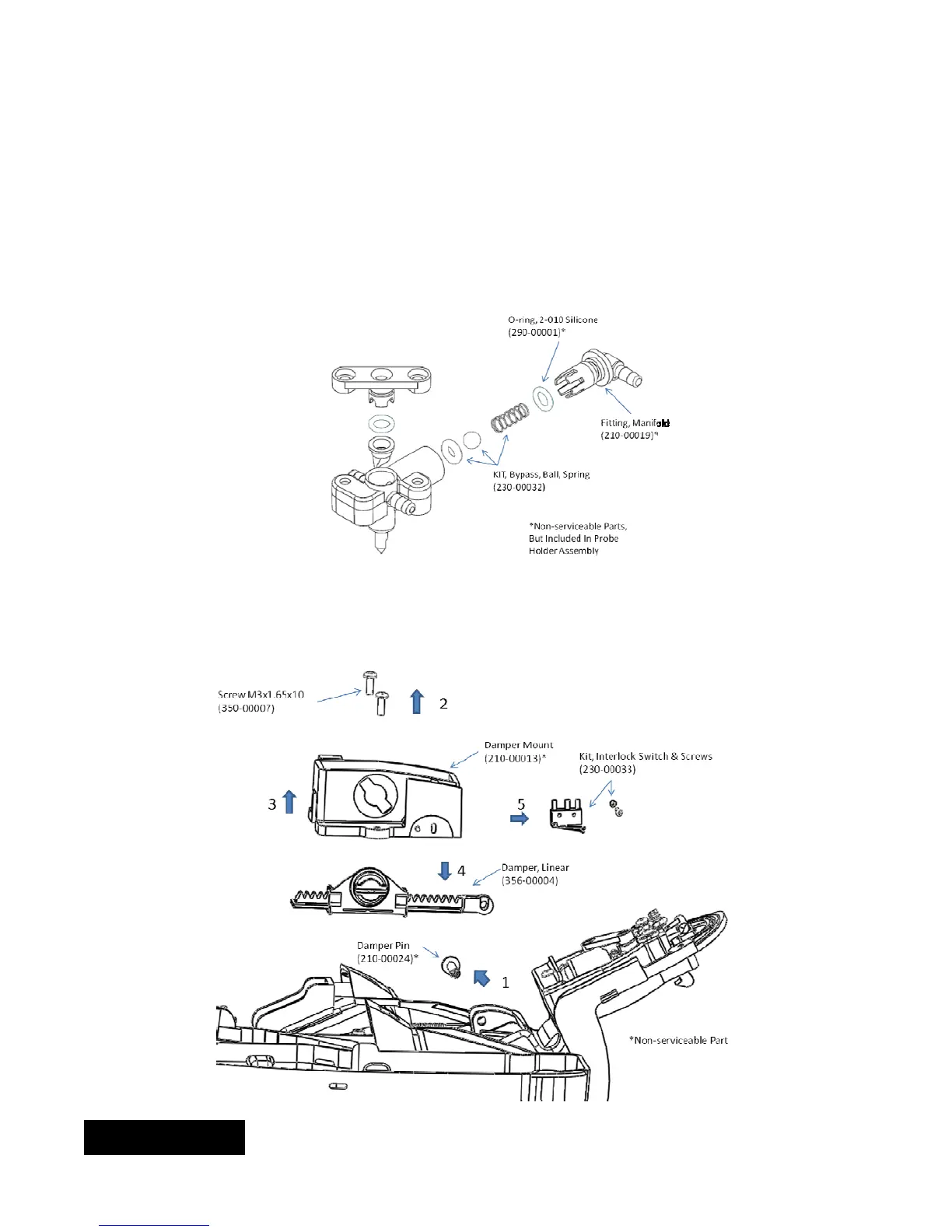

The sketch below shows the bypass kit on the probe holder assembly. To service by pass on probe holder
assembly:
 Pull the Manifold Fitting away from the probe holder.
 Remove the bypass parts.
 Replace the spring, ring, and ball as shown. Please make sure that the spring is sitting properly inside
of the manifold fitting. If is not, the bypass will not operate properly.
5f) Servicing the Linear Damper and the Interlock Switch. This assembly is located behind the brew chamber.
Follow the directions below to service:
