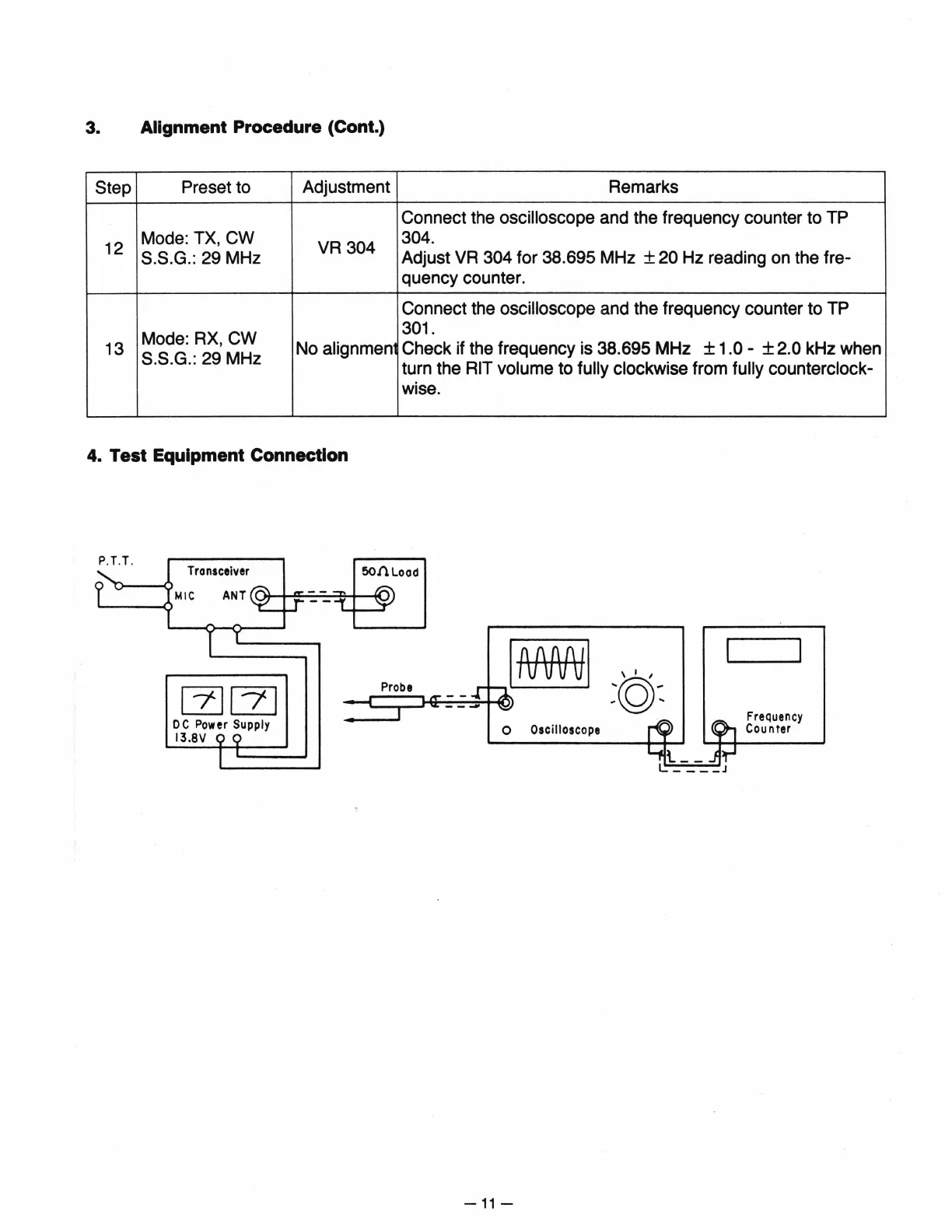

3.
Alignment Procedure (Cont.)
Step
Preset to
Adjustment Remarks
Connect the
oscilloscope and the frequency counter to TP
12
Mode: TX,
CW
VR304
304.
S.S.G.:
29 MHz
Adjust
VR
304 for 38.695 MHz ± 20 Hz reading on the fre-
quency counter.
Connect the
oscilloscope and the frequency counter to TP
Mode: RX,
CW
301.
13
No
alignmen
1
Check if the frequency is 38.695 MHz ± 1.0 - ± 2.0 kHz when
S.S.G.: 29 MHz
turn the
RIT volume to fully clockwise from fully counterclock-
wise.
4. Test Equipment Connection
P.T.T.
Transceiver
501l.Lood
EJITJ
DC
Power
Supply
13.8V
o Oscilloscope
-11-
Frequency
Counter
To Next Page
