Step
Preset to
Adjustment Remarks
9
Mode:
CW
No Check if the RF power level is 23 rv 29 W reading on the RF
KEYSW:
ON
alignment
power meter.
Mode:
CW
10
(Low Power)
No Check if the RF power
level is 3 rv 7 W reading on the RF
Pull RF Gain Con-
alignment power meter.
trol

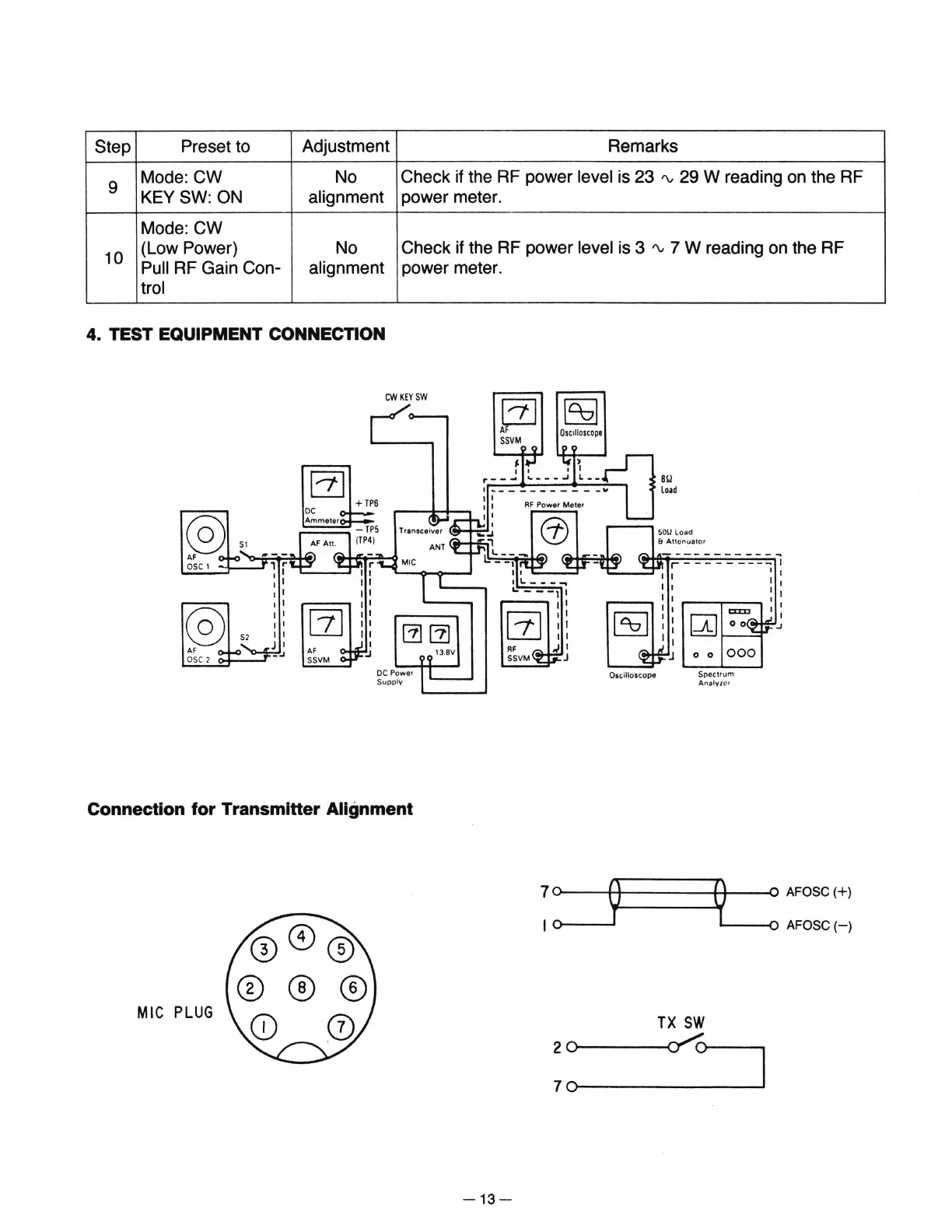

4. TEST EQUIPMENT CONNECTION
CW KEY SW
~
SSVM
Osc i lloscope
+TP6
DC
0 0 000
Oscilloscope Spectrum
Analyz e r
Connection for Transmitter Alignment
MIC PLUG
-13-
TX SW
::----c/o
: AFOSC(+)
AFOSC(-)
