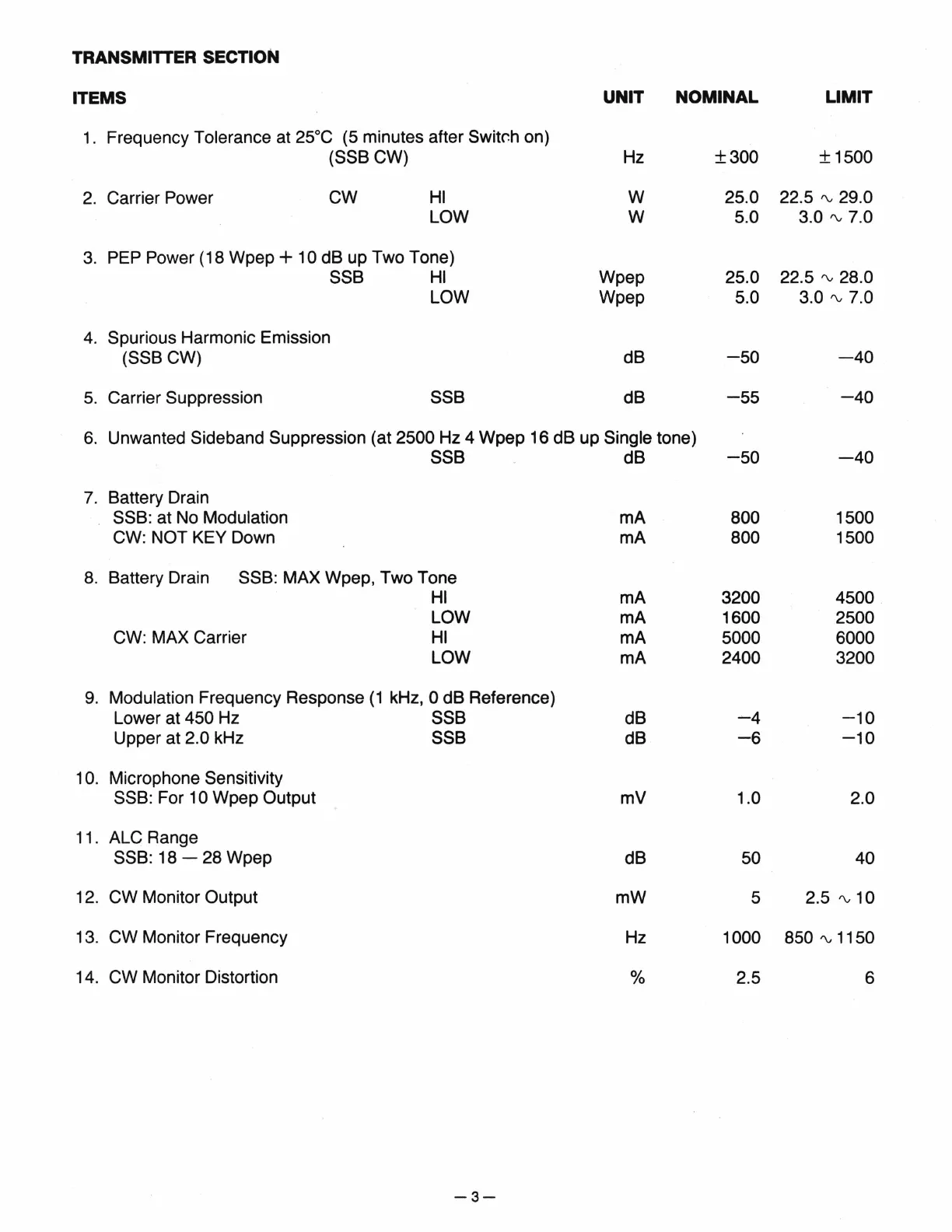

TRANSMilTER SECTION
ITEMS
UNIT NOMINAL
LIMIT
1.
Frequency Tolerance at 25°C (5 minutes after Swit~h on)
(SSB CW) Hz ±300
±1500
2.
Carrier Power
cw
HI w 25.0
22.5 "v 29.0
LOW
w 5.0
3.0
"v 7.0
3.
PEP Power (18 Wpep + 10 dB up Two Tone)
SSB
HI Wpep 25.0
22.5 "v 28.0
LOW
Wpep
5.0
3.0
"v 7.0
4. Spurious Harmonic Emission
(SSB CW)
dB
-50 -40
5.
Carrier Suppression
SSB
dB
-55
-40
6.
Unwanted Sideband Suppression (at
2500Hz 4 Wpep 16 dB up Single tone)
SSB dB
-50 -40
7. Battery Drain
SSB: at No Modulation
mA
800 1500
CW: NOT KEY Down
mA
800
1500
8. Battery Drain SSB: MAX Wpep, Two Tone
HI
mA
3200
4500
LOW
mA 1600 2500
CW: MAX Carrier
HI mA
5000 6000
LOW
mA
2400
3200
9. Modulation Frequency Response (1 kHz, 0 dB Reference)
Lower at
450 Hz SSB dB
---4
-10
Upper at 2.0 kHz
SSB dB
-6 -10
10.
Microphone Sensitivity
SSB: For 1 0 Wpep Output
mV 1.0 2.0
11. ALC Range
SSB: 18 - 28 Wpep
dB
50 40
12. CW Monitor Output
mW
5
2.5 Av10
13. CW Monitor Frequency
Hz
1000 850 'V 1150
14. CW Monitor Distortion
o/o
2.5
6
-3-
