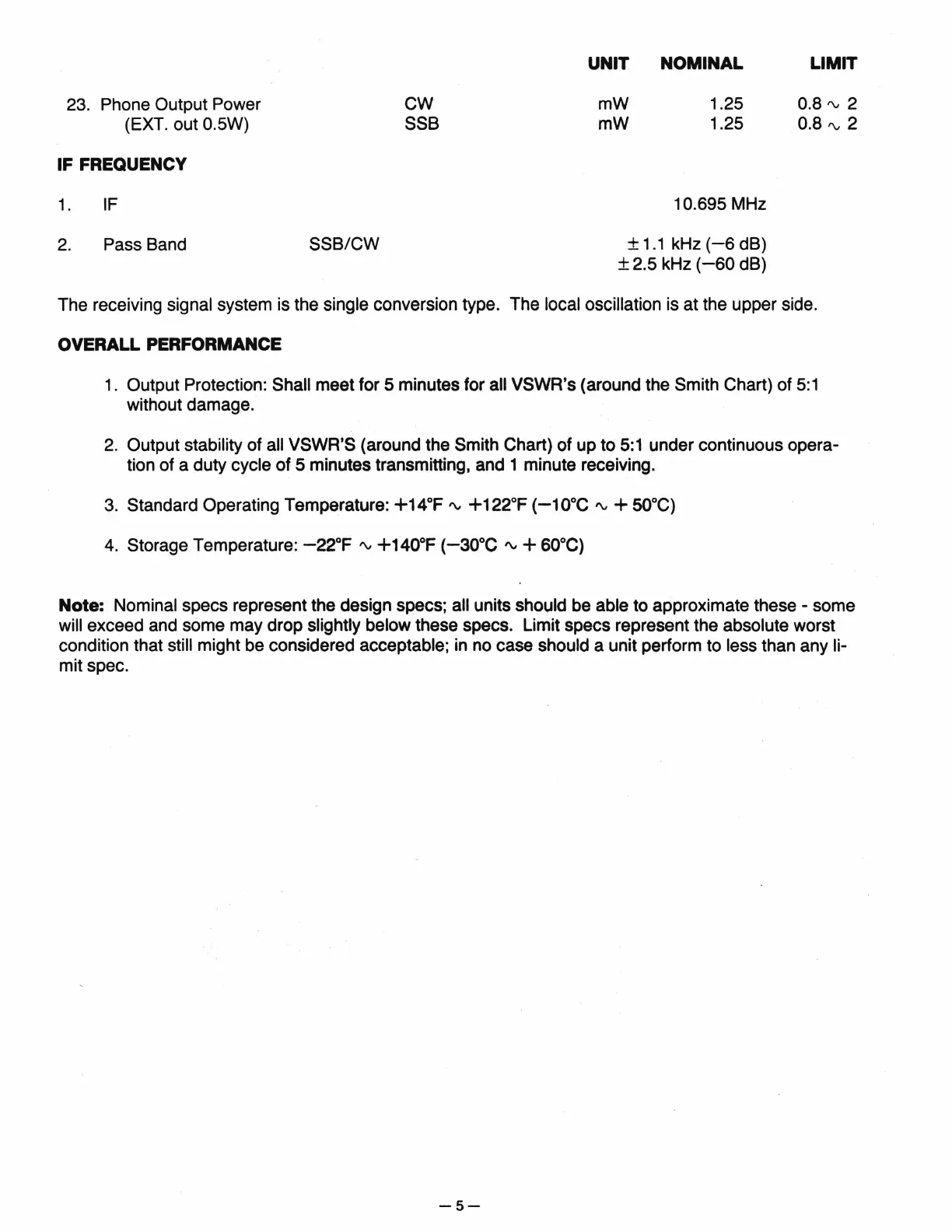

23. Phone Output Power
(EXT. out
0.5W)
IF FREQUENCY
1.
IF
2.
Pass Band
SSB/CW
cw
SSB
UNIT NOMINAL
mW
mW
1.25
1.25
10.695
MHz
±
1.1
kHz
(-6
dB)
± 2.5 kHz
(-60
dB)
LIMIT
0.8
'V
2
0.8
'V
2
The receiving signal system is the single conversion type. The local oscillation is at the upper side.
OVERALL PERFORMANCE
1.
Output Protection: Shall meet for 5 minutes for all VSWR's (around the Smith Chart) of
5:1
without damage.
2.
Output stability of all VSWR;S (around the Smith Chart) of up to
5:1
under continuous opera-
tion of a duty cycle of 5 minutes transmitting, and 1 minute receiving.
3.
Standard Operating Temperature: +14°F
rv
+122°F
(-10°C
rv
+ 50°C)
Note: Nominal specs represent the design specs; all units should be able to approximate
these-
some
will exceed and some may drop slightly below these specs. Limit specs represent the absolute worst
condition that
still might be considered acceptable;
in
no case should a unit perform to less than any li-
mit spec.
-5-
