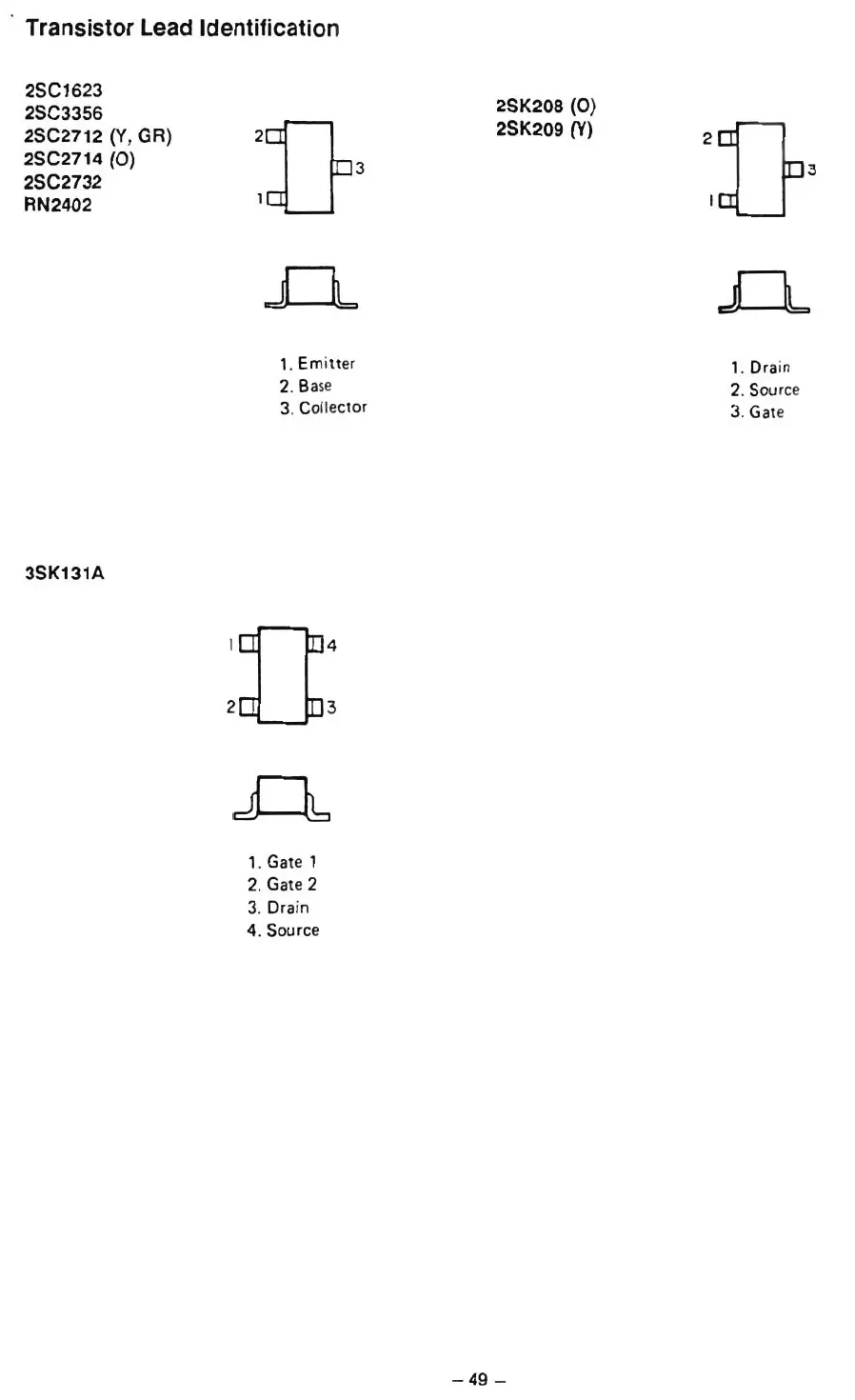

Transistor Lead Identification
2SC1623
2SC3356
2SC2712 (V, GA)
2SC2714
(
0)
2SC2732
AN2402
1. Emitter
2. Base
3. Collector
3SK131A
10
4
2
U3
1.
Gate
1
2. Gate 2
3. Drain
4. Source
2SK20S (0 )
2SK209
(Y
)
- 49 -
1. Drain
2. Sou ree
3. Gate
