Realistic TRC-422A - Technical Specifications; Receiver and Transmitter Specifications; System and Physical Specifications

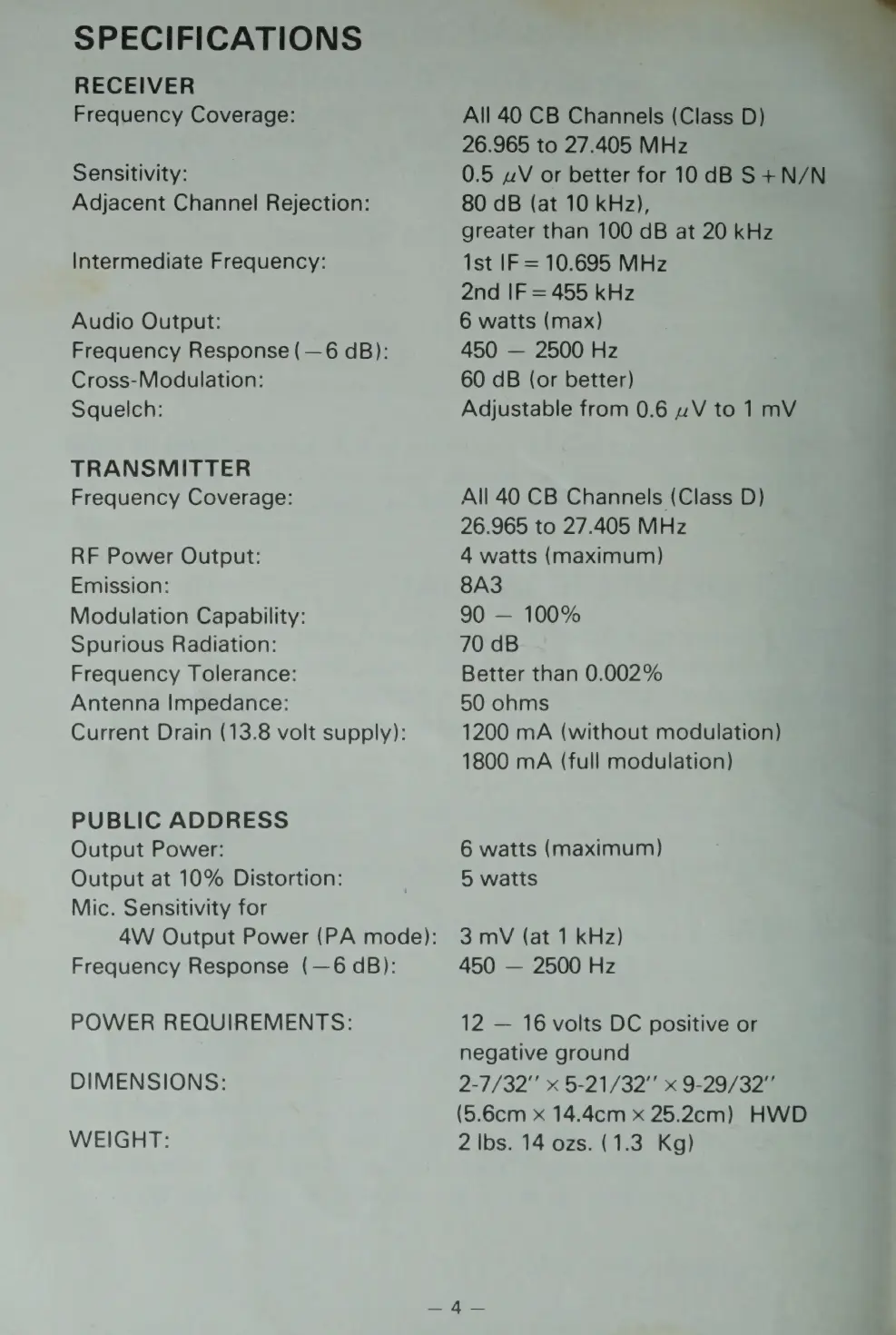

SPECIFICATIONS
RECEIVER
Frequency Coverage:
Sensitivity:
Adjacent Channel Rejection:
Intermediate Frequency:
Audio Output:
Frequency Response (—6 dB):
Cross-Modulation:
Squelch:
TRANSMITTER
Frequency Coverage:
RF Power Output:
Emission:
Modulation Capability:
Spurious Radiation:
Frequency Tolerance:
Antenna Impedance:
Current Drain (13.8 volt supply):
PUBLIC ADDRESS
Output Power:
Output at 10% Distortion:
Mic. Sensitivity for
AW Output Power (PA mode):
Frequency Response (—6 dB):
POWER REQUIREMENTS:
DIMENSIONS:
WEIGHT:
All 40 CB Channels (Class D)
26.965 to 27.405 MHz
0.5 uV or better for 10 dB S+N/N
80 dB (at 10 kHz),
greater than 100 dB at 20 kHz
1st IF = 10.695 MHz
2nd IF = 455 kHz
6 watts (max) |
450 — 2500 Hz :
60 dB (or better)
Adjustable from 0.6 wV to 1 mV
All 40 CB Channels (Class D)
26.965 to 27.405 MHz
4 watts (maximum)
8A3
90 — 100%
70 dB
Better than 0.002%
50 ohms
1200 mA (without modulation)
1800 mA (full modulation)
6 watts (maximum)
5 watts
3 mV (at 1 kHz)
450 — 2500 Hz
12 — 16 volts DC positive or
negative ground
2-1/32" x 5-21/32" x S-2Z9/32e
(5.6cm x 14.4cm x 25.2cm) HWD
2 Ibs. 14 ozs. (1.3 Kg)
