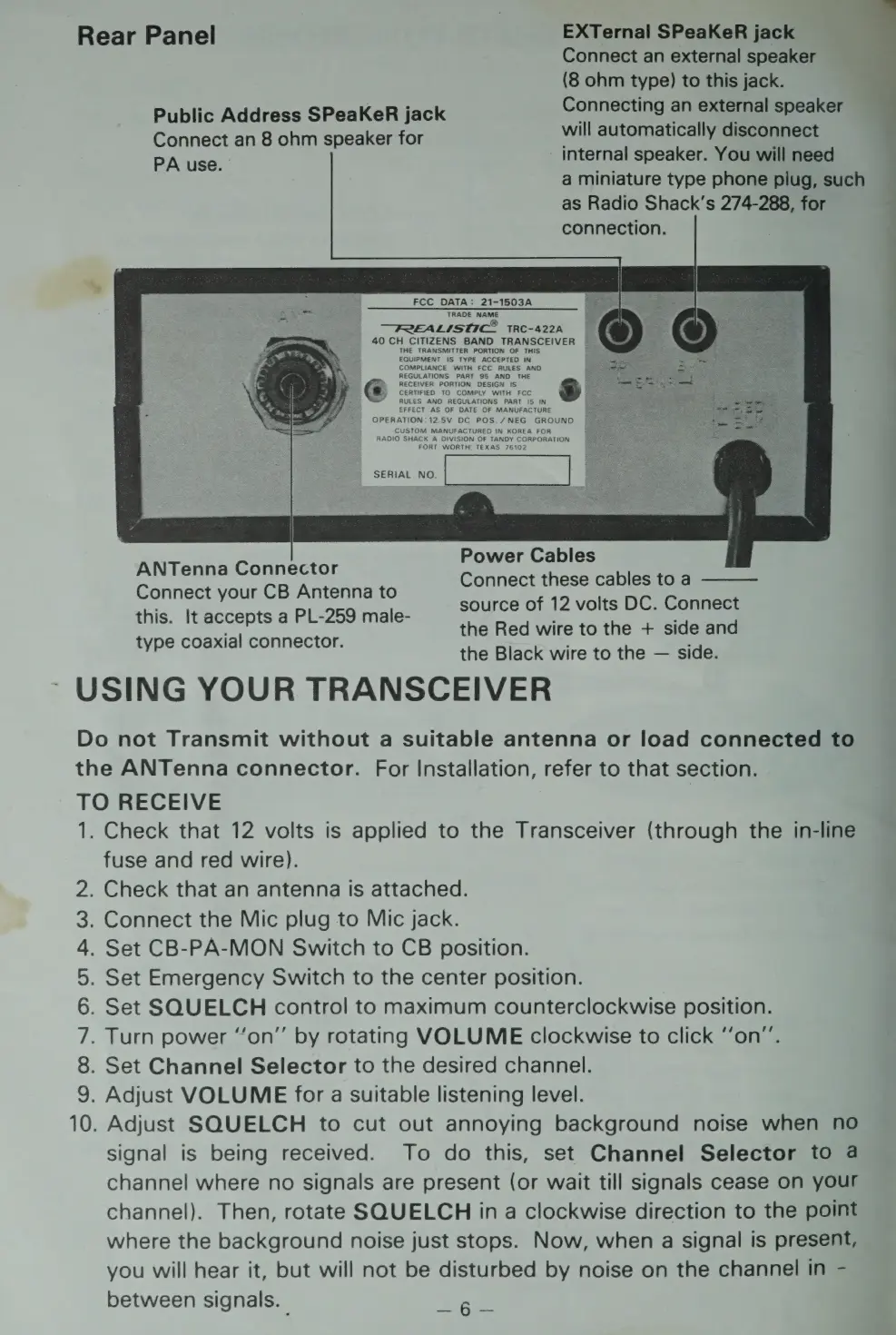

Rear Panel EXTernal SPeaKeR jack
Connect an external speaker
(8 ohm type) to this jack.
Public Address SPeaKeR jack Connecting an external speaker
Connect an 8 ohm speaker for will automatically disconnect
PA-use internal speaker. You will need
a miniature type phone plug, such
as Radio Shack’s 274-288, for .
connection. :
FCC DATA: 21-1503A
TRADE NAME
REALISTIC: tRC-422A
40 CH CITIZENS BAND TRANSCEIVER
THE TRANSMITTER PORTION OF THIS
EQUIPMENT {S TYPE ACCEPTED IN
COMPLIANCE WITH FCC RULES AND
REGULATIONS PART 95 AND THE
\
anes)
\ Fe => RECEIVER PORTION DESIGN IS
La ed Z Ss. CERTIFIED TO COMPLY WITH FCC
Pf <=>" RULES AND REGULATIONS PART 15 IN
Ef EFFECT AS OF DATE OF MANUFACTURE
Obs OPERATION: 12.5V DC POS./NEG. GROUND =
CUSTOM MANUFACTURED IN KOREA FOR Z
RADIO SHACK A DIVISION OF TANDY CORPORATION
ORT WORTH. TEXAS 76102
Power Cables
Connect these cables to a
source of 12 volts DC. Connect
the Red wire to the + side and
the Black wire to the — side.
USING YOUR TRANSCEIVER
Do not Transmit without a suitable antenna or load connected to
the ANTenna connector. For Installation, refer to that section.
TO RECEIVE
1. Check that 12 volts is applied to the Transceiver (through the in-line
fuse and red wire).
. Check that an antenna is attached.
. Connect the Mic plug to Mic Jack.
. Set CB-PA-MON Switch to CB position.
. Set Emergency Switch to the center position.
. Set SQUELCH control to maximum counterclockwise position.
Turn power “on” by rotating VOLUME clockwise to click ‘‘on”.
Set Channel Selector to the desired channel.
. Adjust VOLUME for a suitable listening level.
. Adjust SQUELCH to cut out annoying background noise when no
signal is being received. To do this, set Channel Selector to 4a
channel where no signals are present (or wait till signals cease on your
channel).
Then,
rotate
SQUELCH
in
a
clockwise
direction
to
the
point
where the background noise just stops. Now, when a signal is present,
you will hear it, but will not be disturbed by noise on the channel in -
between signals.
ANTenna Connector
Connect your CB Antenna to
this. It accepts a PL-259 male-
type coaxial connector.
