RTL8852BE User’s Manual
Installing the Wireless PCIe NGFF2230 module
Hardware

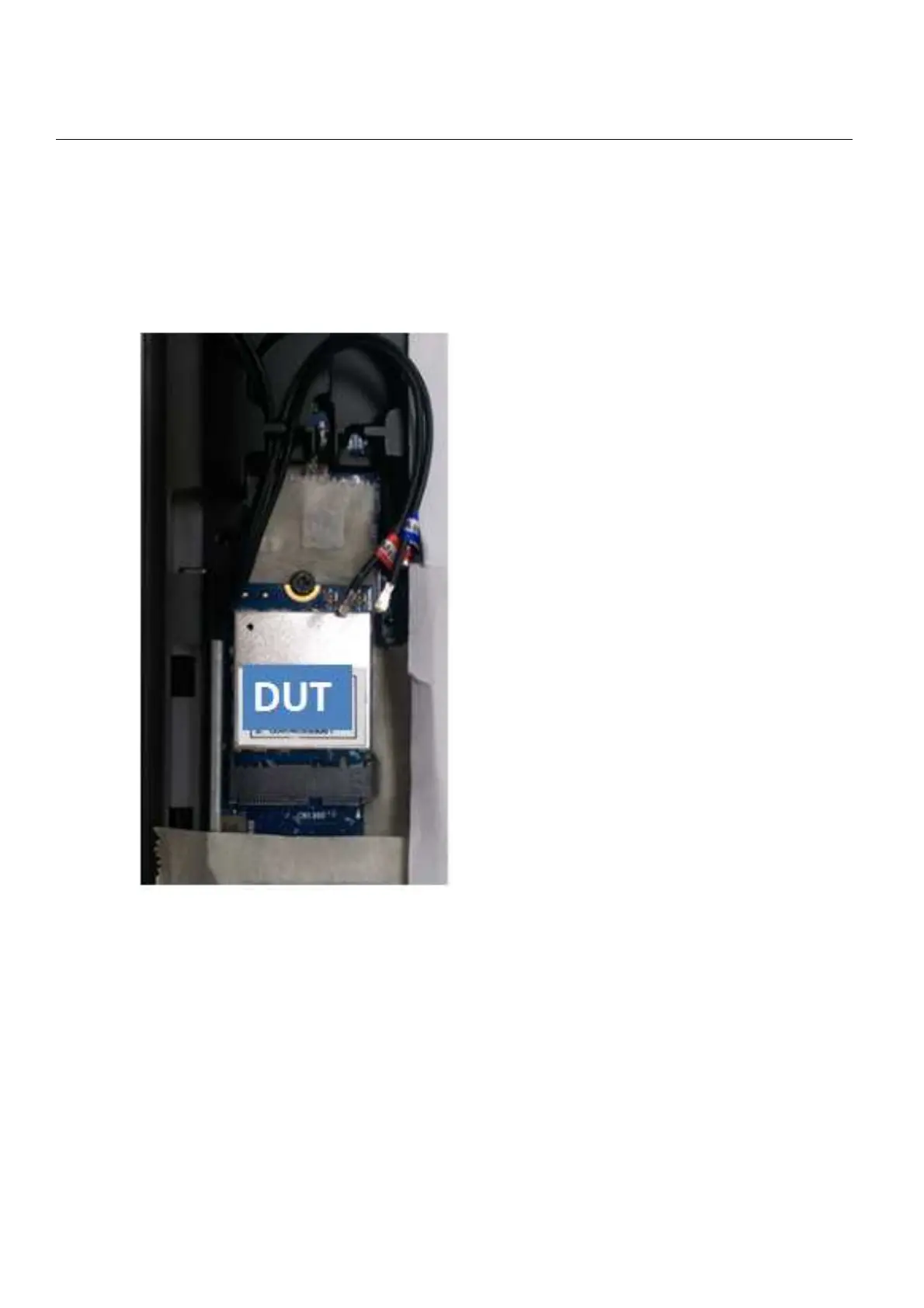

Installing PCIe NGFF2230 module to PCIe NGFF2230 connector and connect two
external Wi-Fi antennas on I-PEX connectors.
