SECTION
KEY PRESS HOLD
Left
Move cursor left (if applicable)
Go up one menu level
Exit back to main status display screen
(1 second)
Right
Move cursor right (if applicable) N/A
Up
Increment value
Go to previous item in list
N/A
Down
Decrement value
Go to next item in list
N/A
OK
Validate selection N/A
Boost
Change input type
(Wi-Fi password entry menu only)
N/A
1
1.2 INTERFACE
The user interface consists of a 2x16 backlit LCD with
4 indicator arrows. There are 4 navigation buttons,
1 Enter button and 1 Boost button, as shown below.
The controller has 6 main buttons.
1. OK button
a. It is used to bring on the main menu or to
accept the settings.
2. Boost button
a. It is used to activate one shot boost function.
3. Navigation buttons
a. > to move forward in the menu
b. < to move backward in the menu
i. if this is held for 1 second, it acts as an
exit and the initial display will appear.
c. Up and down arrows are to increase/decrease
the numbers/values in settings
or navigate through the menu
During status display, the following actions are available. Note: key presses are not registered when the
LCD backlight is turned off. If the backlight if OFF, press any key to turn it on.

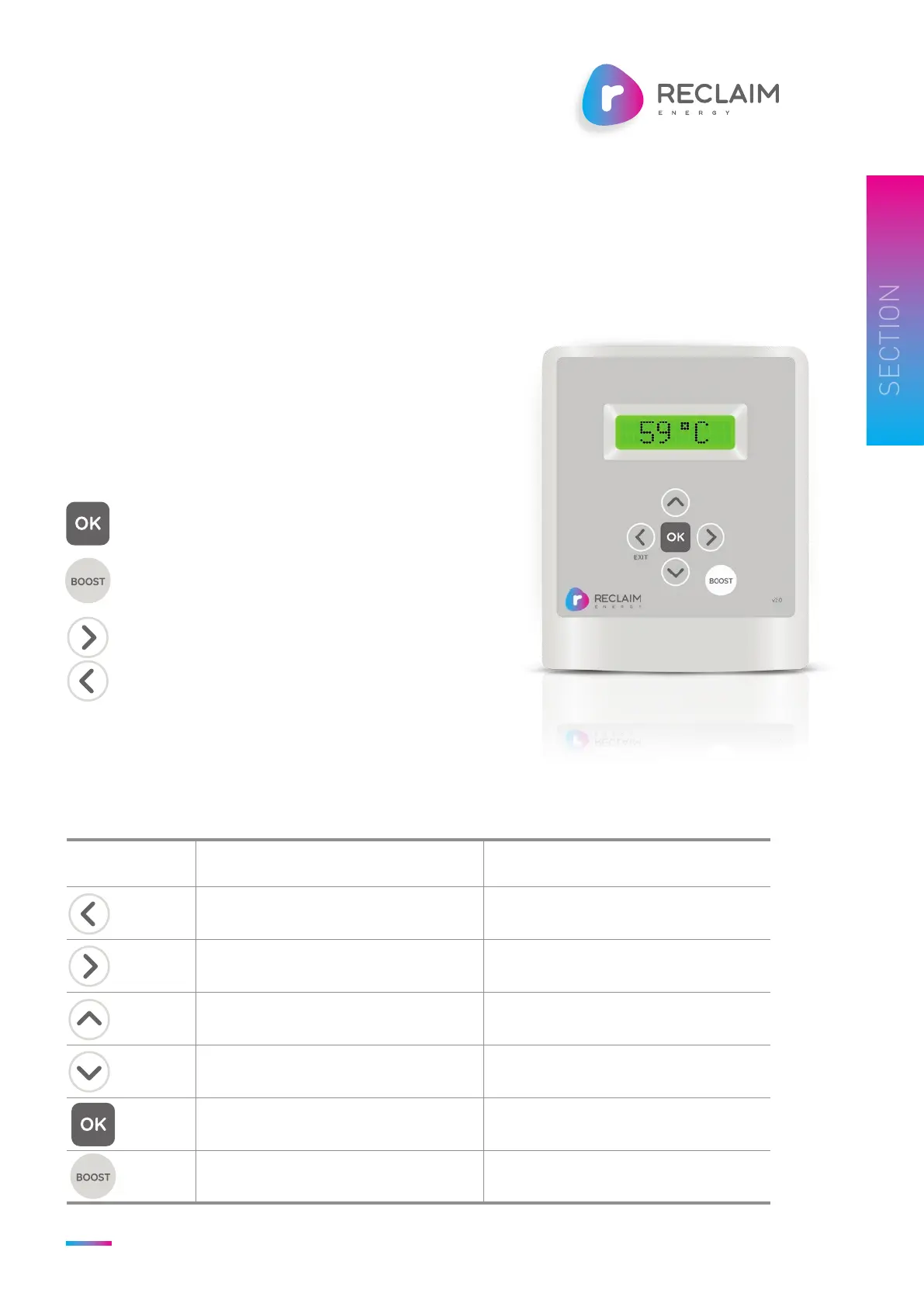

Figure 1-1: LCD & Buttons
Table 11: Usage of keys in setup menus
