Owners/Installation Manual – Controller v2 | Reclaim Energy
RECLAIMENERGY.COM.AU
19
SECTION
3
3. WI-FISETUP

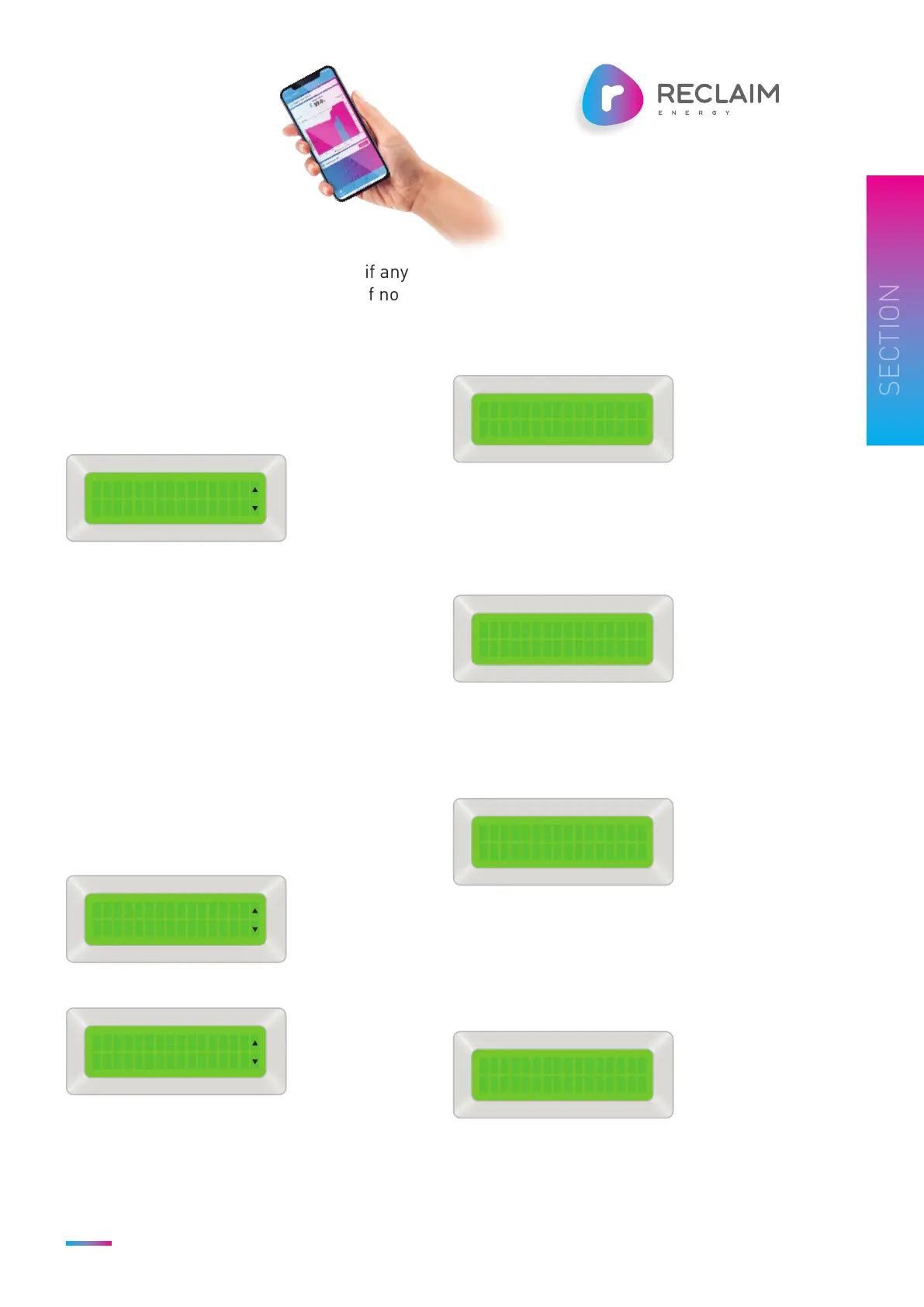

Figure 3-1: Setup Wi-Fi prompt
SETUP WIFISETUP WIFI
YESYES
Figure 3-2: Wi-Fi setup mode using App
WIFI SETUP MODEWIFI SETUP MODE
APPAPP
Figure 3-3: Wi-Fi setup mode using LCD/keypad
WIFI SETUP MODEWIFI SETUP MODE
MANUALMANUAL
Figure 3-4: Starting Wi-Fi setup using App
WIFI SETUPWIFI SETUP
STARTINGSTARTING
Figure 3-5: Connect to controller’s access point
CONNECT TO WIFICONNECT TO WIFI
RECLAIMV2_NNNNNNRECLAIMV2_NNNNNN
Figure 3-6: Wi-Fi setup not successful
WIFI NOTWIFI NOT
CONFIGUREDCONFIGURED
Figure 3-7: Wi-Fi password incorrect
WIFI PASSWORDWIFI PASSWORD
INCORRECTINCORRECT
After boot-up, the controller checks if any
Wi-Fi network has been configured. If no
Wi-Fi setup is found, the controller prompts
whether to proceed with the Wi-Fi setup.
3.1 WIFI SETUP PROMPT
If no Wi-Fi setup is found, the controller prompts whether
to proceed with the Wi-Fi setup.
3.2 WIFI SETUP MODE
Wi-Fi can be setup either using the App or manually using
the LCD/keypad interface. Press the ▲ / ▼ keys to select
between App and Manual, and press ENTER to confirm.
3.2.1 WIFI SETUP USING APP
If ‘APP’ is selected, the controller goes into Wi-Fi
Configuration Mode – the user can then use a mobile
device to configure the Wi-Fi network information to the
controller.
The controller will display it’s Wi-Fi network name on the
following screen – the format is ‘RECLAIMV2_NNNNNN’
where ‘NNNNNN’ is the last 4 characters of the
controller’s MAC address.
• If ‘NO’ is selected, Wi-Fi is turned OFF and the
controller proceeds to Status Display.
- The above prompt will not be shown on subsequent
boot-up until Wi-Fi is turned back ON in the setup
menu.
- The controller will then operate in OFFLINE mode.
- Wi-Fi can be configured at any time in the setup menu.
• If ‘YES’ is selected, the controller prompts for the
Wi-Fi setup mode as in section 3.2.
• If the controller does not receive the Wi-Fi network
information from the App after 3 minutes, the following
message is displayed.
The controller then operates in OFFLINE mode. Wi-Fi can
be setup later in the setup menu.
• If an error occurs during password authentication with
the Wi-Fi network, the following message is displayed.
The controller then operates in OFFLINE mode.
Wi-Fi can be setup later in the setup menu.
