Owners/Installation Manual – Controller v2 | Reclaim Energy
RECLAIMENERGY.COM.AU
13
2
SECTION
2. SETUP MENU

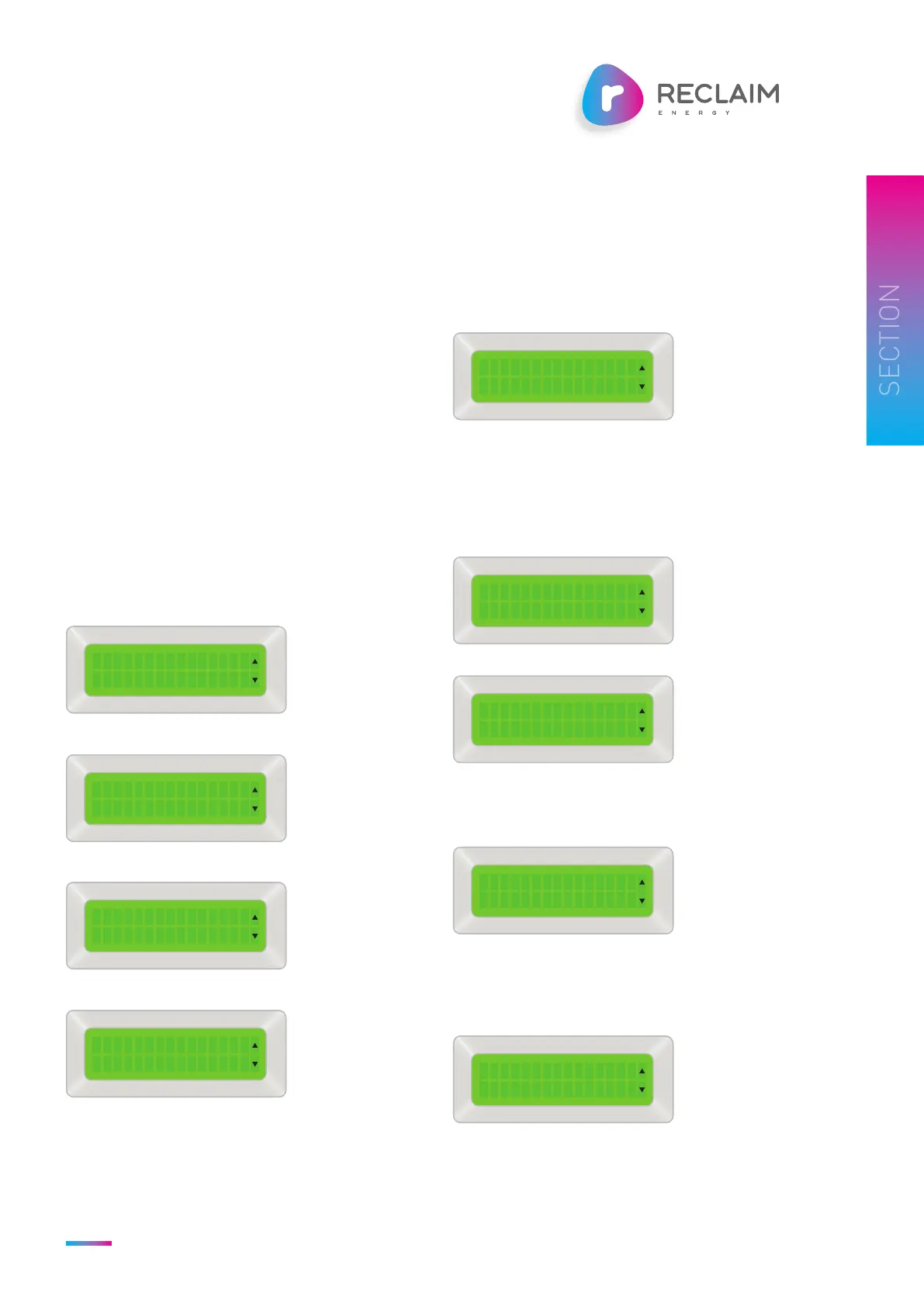

Figure 2-1: Setup operation to mode 1 – 24H
OPERATION MODEOPERATION MODE
1.24H1.24H
Figure 2-5: Setup operation to mode 5 – timers
OPERATION MODEOPERATION MODE
5.TIMERS5.TIMERS
Figure 2-6: Mode 5, set timer 1 start time and run time
OPERATN MODE 5OPERATN MODE 5
1:11PM TO 5AM1:11PM TO 5AM
Figure 2-7: Mode 5, set timer 2 off
1:11PM TO 5AM1:11PM TO 5AM
2:OFF2:OFF
Figure 2-8: Mode 5, set timer 1 for 6 hours,
set timer 2 for 2 hours
1:11PM TO 5AM1:11PM TO 5AM
2:1PM TO 3PM2:1PM TO 3PM
Figure 2-9: Mode 5, set timer 2 T-On temperature
2:1PM TO 3PM2:1PM TO 3PM
2:TON=422:TON=42
¯¯
Figure 2-2: Setup operation to mode 2 – 10PM to 7AM
OPERATION MODEOPERATION MODE
2.10PM TO 7AM2.10PM TO 7AM
Figure 2-3: Setup operation to mode 3 – 12AM to 6AM
OPERATION MODEOPERATION MODE
3.12AM TO 6AM3.12AM TO 6AM
Figure 2-4: Setup operation to mode 4 – 10AM to 4PM
OPERATION MODEOPERATION MODE
4.10AM TO 4PM4.10AM TO 4PM
The setup menu allows to view and/or change the
following items:
• Operation Mode
• Clock
• Wi-Fi
• Service Menu
• About
• Operational parameters
2.1 OPERATION MODE
This menu allows setup of the operation mode. Press
the ▼ / ▲ keys to choose the operation mode and press
ENTER to confirm.
2.1.1 PRESET MODES 14
Modes 1-4 are pre-sets with pre-defined timers.
• Note that for operation modes 2, 3 & 4, the default
times can be changed in the Service Menu and the
new times will be reflected in the menus above.
2.1.2 MODE 5  TIMERS
When option 5 is selected, the following menus are then
displayed to enter the timer start times and stop times.
The input cursor will blink on the timer 1 start hour; press
the ▲ / ▼ keys to change the time and press ENTER to
confirm. The cursor will then move to the stop hour and so
on to timer 2. The ▲ / ▼ keys can be used to move the
cursor between the start hour and stop hour.
If timer 2 is OFF, press the ▲ key to set it to on and
proceed to setting the start time and stop time.
Press the ENTER key to confirm the start time and stop
time. The timer 2 T-On temperature can then be set.
The input cursor will blink on the temperature; press
the ▲ / ▼ keys to change the temperature and press
ENTER to confirm.
