Record Power Coronet Envoy - Advanced Chisel Use and Speeds

8
Voltage: 230 V
Frequency: 50 Hz
Motor input P1: 2 kW
Motor output P2: 1.5 kW
Motor speed: 1400 rpm
Full load current: 6 A
Max. bowl diameter: 1000 mm (39”)
Max. between centres: 610 mm (24”)
Max. swing over bed: 460 mm (18”)
Spindle speeds: 250 - 3800 rpm
Taper: 2 Morse Taper
Spindle Thread: M33 x 3.5
Quill travel: 90 mm
Size: W1450 x D540 x H1215 mm
Weight: 145 kg
Sound Pressure Level: No load < 83 dB(A)
Sound Power Level: No load < 83 dB(A)
Weight: 145 kg
5. Specifications

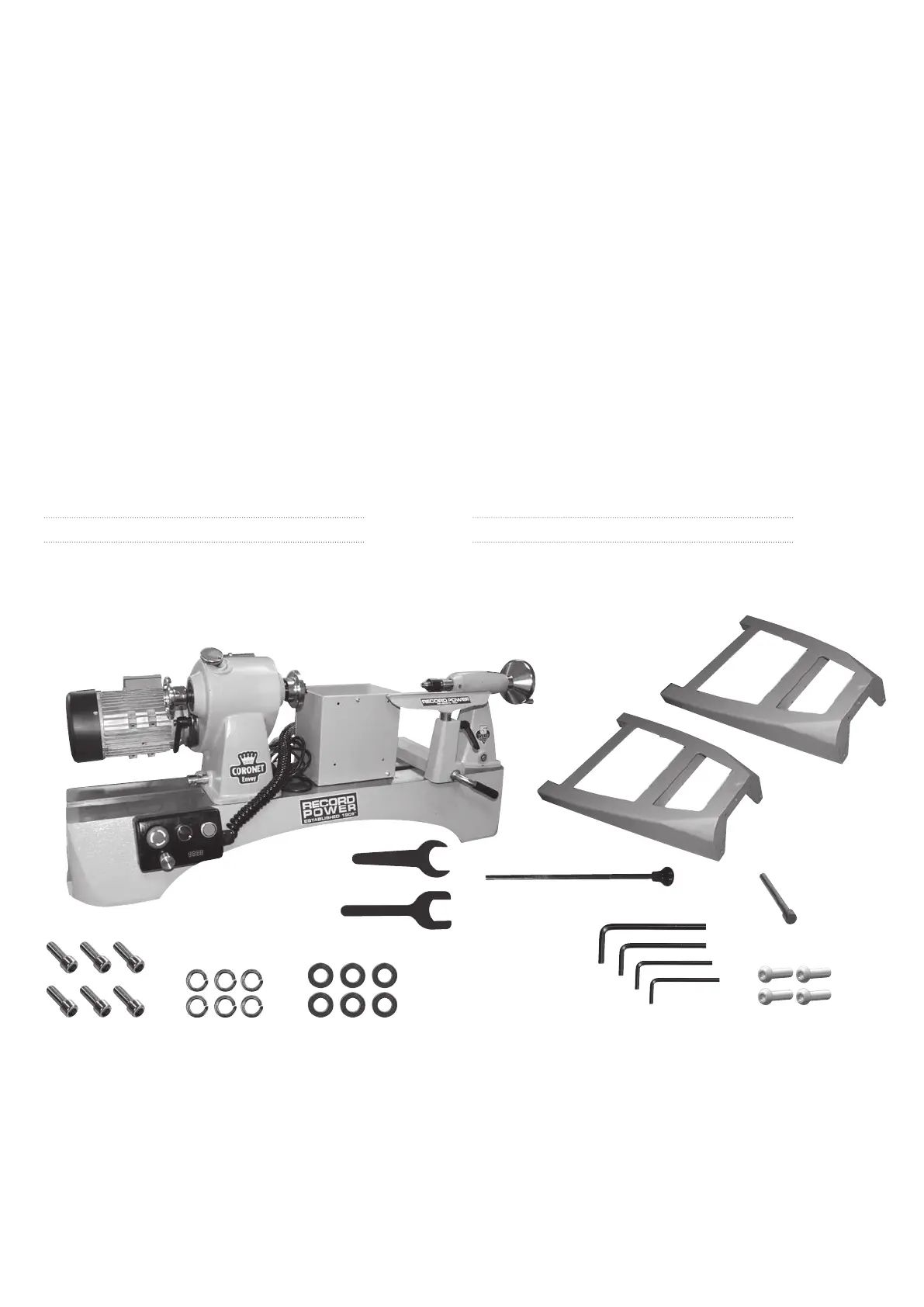

6. Contents of the Package
Voltage: 230 V
Frequency: 50 Hz
Motor input P1: 1.5 kW
Motor output P2: 1.1 kW
Motor speed: 1400 rpm
Full load current: 4.5 A
Max. bowl diameter: 1000 mm (39”)
Max. between centres: 610 mm (24”)
Max. swing over bed: 410 mm (16”)
Spindle speeds: 250 - 3800 rpm
Taper: 2 Morse Taper
Spindle Thread: M33 x 3.5
Quill travel: 90 mm
Size: W1435 x D540 x H1190 mm
Weight: 140 kg
Sound Pressure Level: No load < 83 dB(A)
Sound Power Level: No load < 83 dB(A)
Weight: 140 kg
Coronet Envoy
Coronet Regent
1 Coronet Envoy / Regent with headstock, tailstock, 1
tool rest holder, tool rest, faceplate, 4-prong drive centre
and live centre pre-assembled
2 Legs 2
3 46 mm wrench 1
4 38 mm wrench 1
5 Operating Bar 1
6 M10 x 30 mm hex head socket screws 6
7 M10 washers 6
8 M10 spring washers 6
9 8 mm hex wrench 1
10 4 mm hex wrench 1
11 3 mm hex wrench 1
12 2.5 mm hex wrench 1
13 Drive centre knockout bar 1
14 M6 x 25 mm socket pan head screws 4
Item Description Quantity Item Description Quantity
1
2
5
6 7 8
9
10
11
12
3
4
13
14
Coronet Envoy Gear Torque (Newton-Meter)
High speed Medium speed Low speed
High gear 19.6 48.1 62.8
Low gear 15.2 47.1 66.7
Coronet Regent Gear Torque (Newton-Meter)
High speed Medium speed Low speed
High gear 18.5 43.6 77.5
Low gear 18.1 42.7 76.5
