9
4
3
76
5
1
20
2
8 9 10 11 12 13 1514
17
1619
18
Unpacking and Cleaning
1. Carefully lift the lathe from the carton and check that all of the components and contents have been
included. Place parts on a protected surface.
2. Clean all rust protected surfaces with white spirit. Do not use gasoline, paint thinner, mineral spirits,
etc. These may damage painted surfaces. Make sure the area is well ventilated and that there are no
naked flames or sources of ignition.
3. Set packaging materials aside and do not discard until the machine has been set up and is
running correctly.
Tools Needed for Assembly
(Not supplied)
24 mm wrench
6. Contents of the Package

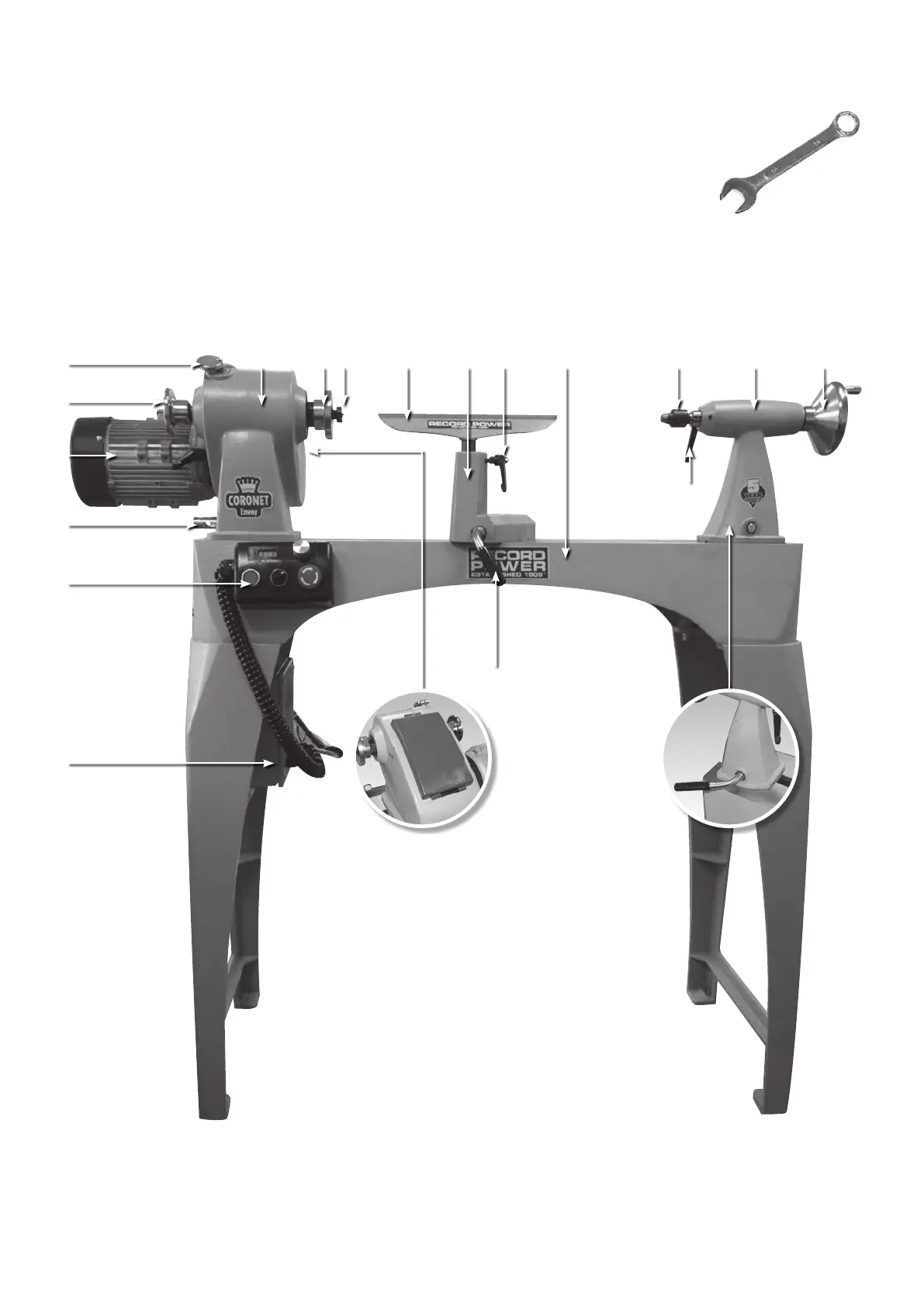

7. Getting to Know Your Lathe
1 Control unit
2 Headstock locking shaft
3 Motor
4 Hand wheel
5 Indexing dial
6 Headstock
7 Faceplate
8 4-prong drive centre
9 Tool rest
10 Tool rest holder
11 Tool rest locking lever
12 Lathe bed
13 Revolving centre
14 Tailstock
15 Tailstock hand wheel
16 Tailstock locking lever
17 Tailstock quill locking lever
18 Tool rest holder locking lever
19 Pulley access hatch
20 Electrical enclosure box
Coronet Envoy shown
