12. Adjustments & Maintenance

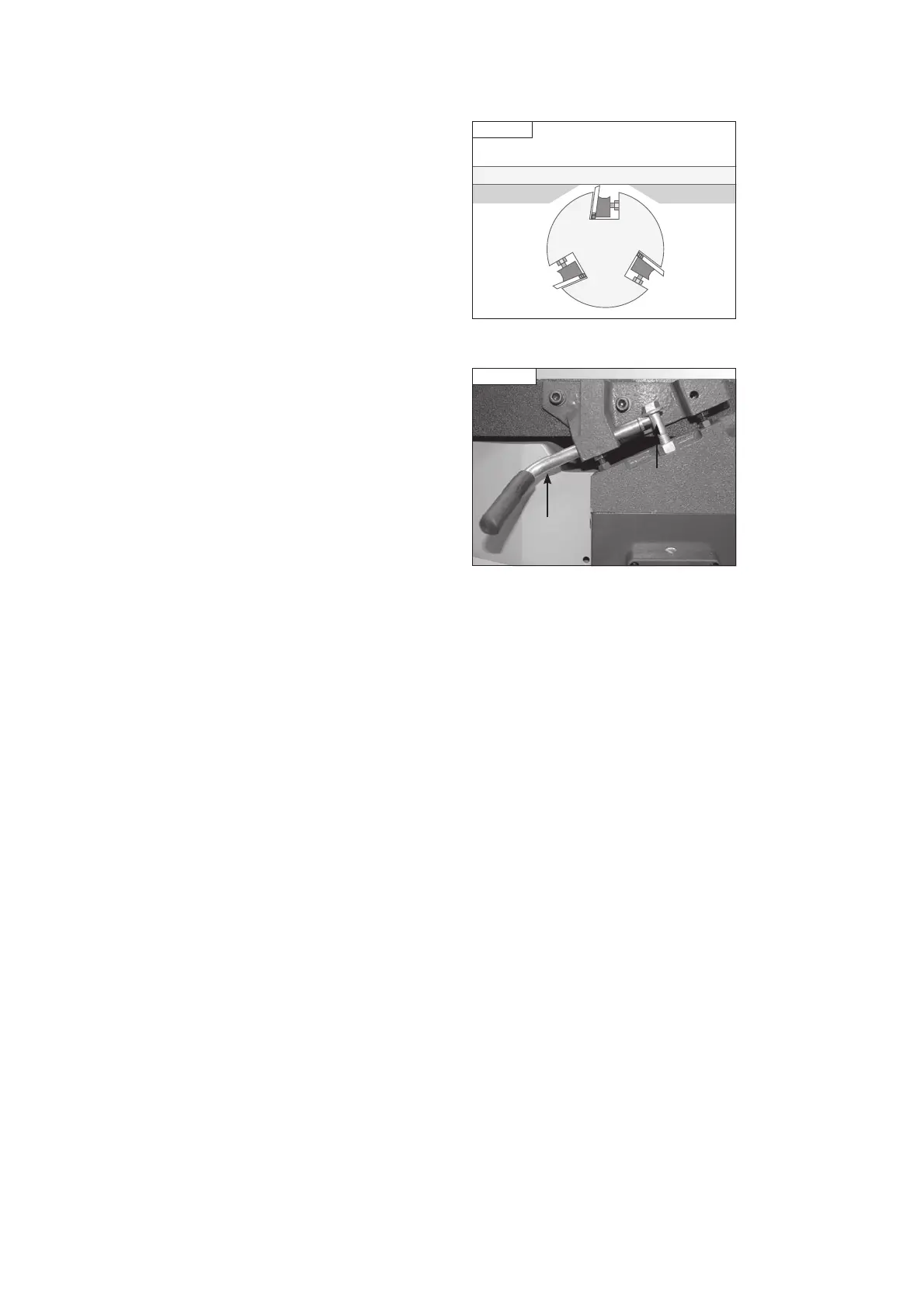

Fig 12.11
Outfeed
table
Infeed
table
Straight edge
Aligning the In Feed Table with the Cutter Block
Once the out feed table is aligned correctly, use a straight edge as shown in
Fig. 12.11 to align the in feed table along its full width to be flush with the
out feed table. The in feed table also features levelling bolts which can be
used to adjust the alignment in the same way as the out feed table.
Adjusting the Table Cam Locking Mechanism
Both the in feed and out feed tables have an adjustable cam lock
mechanism to ensure correct pressure can always be applied to keep the
tables in position.
To lock the table in position, push the handle in and turn clockwise.
If the cam lock handle is too difficult to apply, raise the stop bolt as shown
in Fig. 12.12.
If the cam lock handle can be turned with ease but does not lock the table
in position, lower the stop bolt until the table can be secured with
the handle.
Cam lock
handle
Stop
bolt
Fig 12.12
