1 SC3 Geared Scroll Chuck
2 Standard Jaws 50 mm (2”)
3 Deep wood screw
4 M6 x 10 mm countersunk head hex socket screws x 8
5 4 mm hex wrench
6 3 mm hex wrench
7 Pinion key
8 M6 x 6 mm blind set screw
9 Protective leather disc
1
2
3
7
4
5
8 9

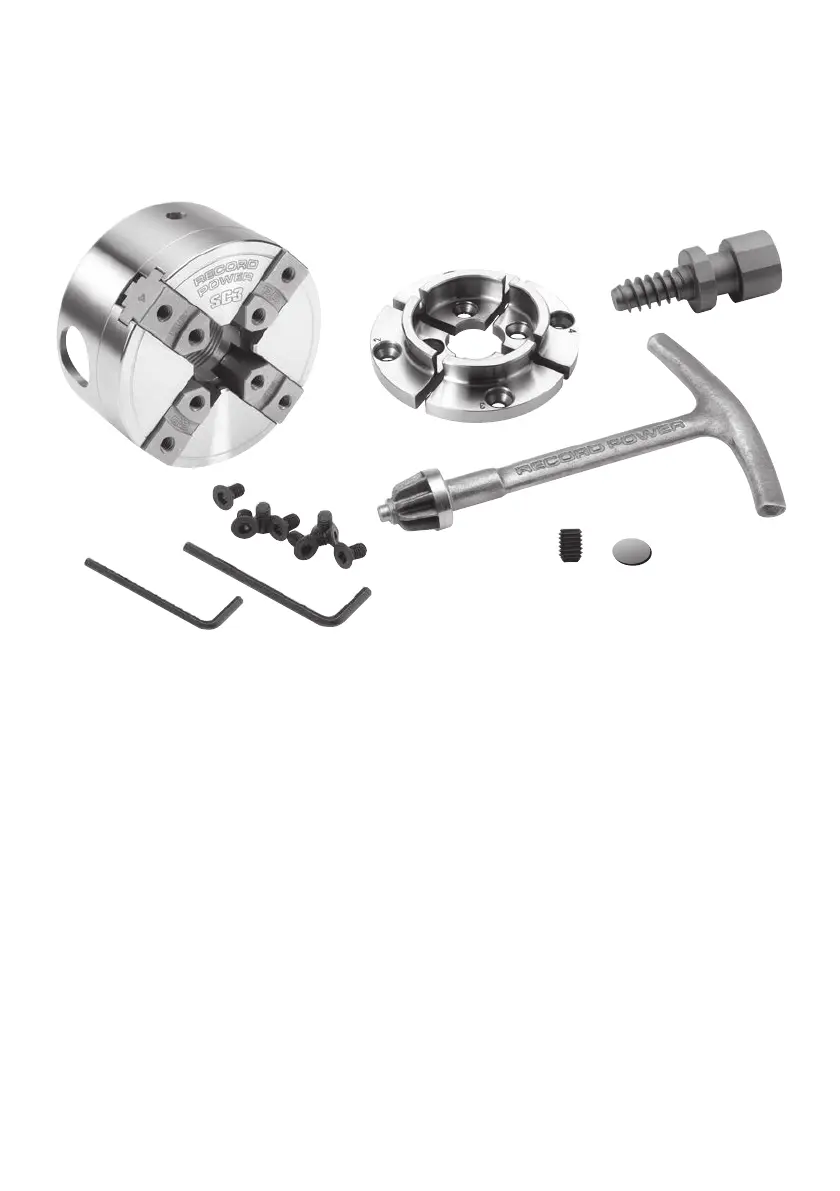

SC3 Geared Scroll Chuck Package
7. Contents of the Packages
6
