Record Power SC3 - Parts Lists & Diagrams; SC3 Geared Scroll Chuck

30
Part Number Description Quantity
1 61028 Chuck body RH 3/4” 16 TPI UNF 1
61025 Chuck body RH M33 x 3.5 ISO 1
61033 Chuck body RH 1” 8 TPI UNC 1
2 66032 Scroll gear 1
3 61016 Pinion chuck key 1
4 62023 Jaw slide 1 1
5 62024 Jaw slide 2 1
6 62025 Jaw slide 3 1
7 62026 Jaw slide 4 1
8 EC50 Circlip 1
9 GC0606 M6 x 6 mm blind set screw 1
10 3379 Protective leather disc 1
11 CH0610 M6 x 10 mm countersunk head hex socket screws 8
12 62313 Standard jaw set 1
13 62833 Deep wood screw 1
14 AK03 3 mm hex wrench 1
15 AK04 4 mm hex wrench 1
10. Parts Lists & Diagrams
11
14 9 5 82
3
4
1
7
1213
15
6
10

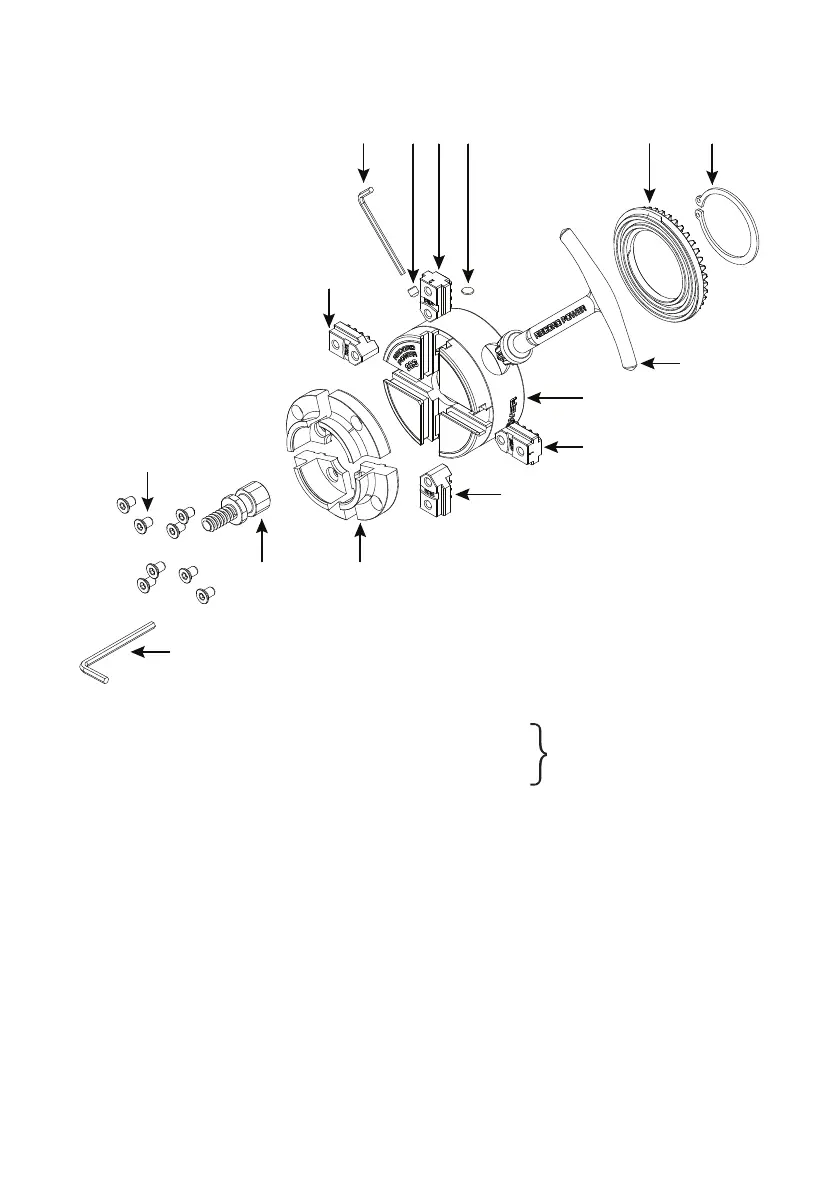

SC3 Geared Scroll Chuck
One version only supplied
