Record Power SC3 - SC4 Professional Geared Scroll Chuck

31
SC4 Professional
Geared Scroll Chuck

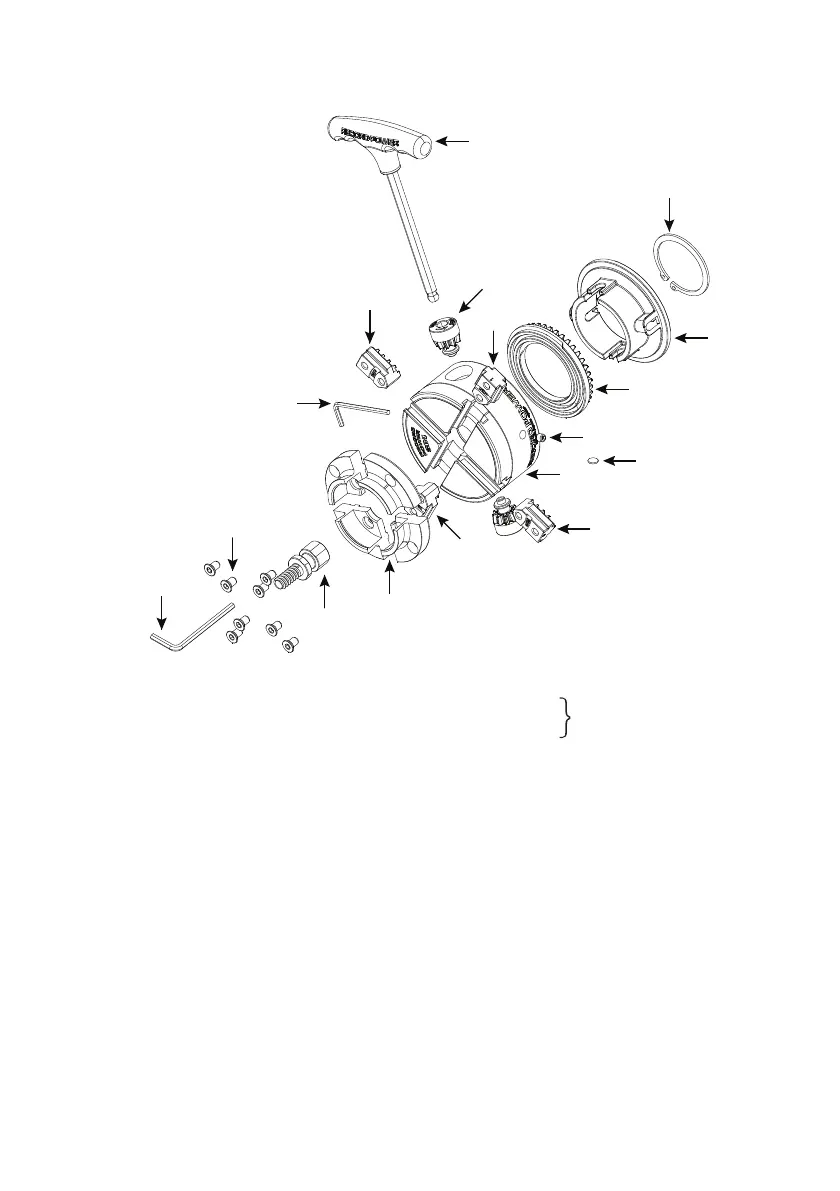

10. Parts Lists & Diagrams
Part Number Description Quantity
1 66035 Chuck body 1
62065 Chuck body RH M33 x 3.5 ISO 1
2 66032 Scroll gear 1
3 66016 Pinion 2
4 62023 Jaw slide 1 1
5 62024 Jaw slide 2 1
6 62025 Jaw slide 3 1
7 62026 Jaw slide 4 1
8 EC50 Circlip 1
9 GC0606 M6 x 6 mm blind set screw 1
10 3379 Protective leather disc 1
11 3326 8 mm T handle hex wrench 1
12 3313 Backing plate 1
13 62833 Deep wood screw 1
14 AK03 3 mm hex wrench 1
15 62313 Standard jaw set 1
16 AK04 4 mm hex wrench 1
17 CH0610 M6 x 10 mm countersunk head hex socket screws 8
14
5
11
3
8
12
2
4
9
1
7
6
15
13
16
17
10
One version only supplied
