DSMC 1.8" SSD SIDE MODULE
The DSMC 1.8" SSD SIDE MODULE attaches to the DSMC so that you can mount a REDMAG 1.8" SSD to your
camera. The DSMC 1.8" SSD SIDE MODULE has the same EVF/LCD LEMO connector, user keys, and REC
button as the RED MINI-MAG SIDE SSD.
The following SSDs mounts to the DSMC 1.8" SSD SIDE MODULE:
REDMAG 1.8" SSD (48GB)
REDMAG 1.8" SSD (64GB)
REDMAG 1.8" SSD (128GB)
REDMAG 1.8" SSD (256GB)
REDMAG 1.8" SSD (512GB)
SIDE SSD MODULE CONTROLS
The RED MINI-MAG SIDE SSD and DSMC 1.8" SSD SIDE MODULE have the control buttons described in the
tabled below.
CONTROL DESCRIPTION
User Key 1 Programmable key
User Key 1 + 2 Press: Eject Media
User Key 2 Programmable key
User Key 1 + 2 Press: Eject Media
REC button Programmable key
Full Press: Record Toggle
Half Press: AF Start

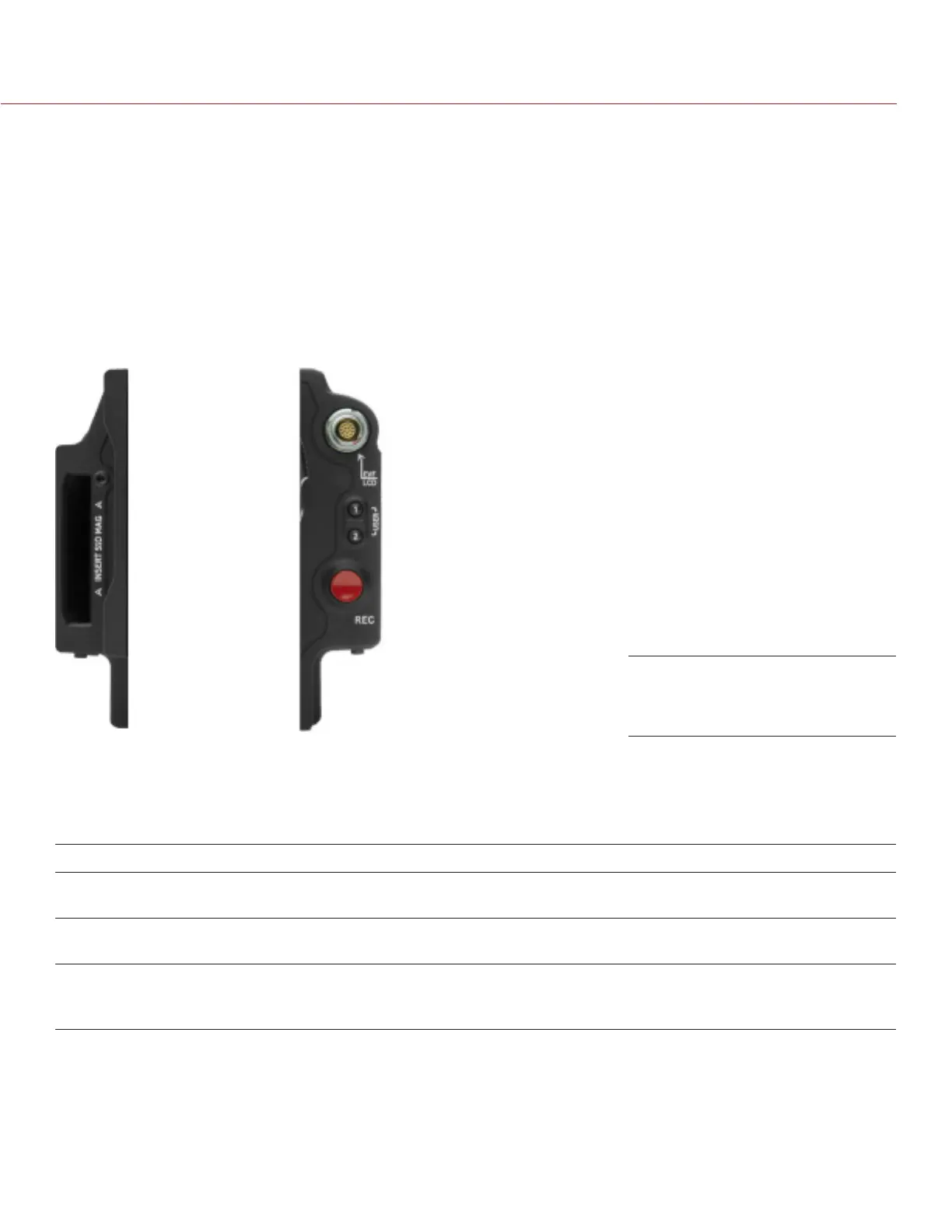

DSMC 1.8" SSD SIDE MODULE
(Rear and Front)
