QUAD BATTERY MODULE: REDVOLT AND REDVOLT XL
The optional QUAD BATTERY MODULE accepts up to four REDVOLT or up to two REDVOLT XL batteries, which
can power the camera and typical accessories.
When multiple batteries are installed in the QUAD BATTERY MODULE, the power management circuit will select
the lowest charged battery to supply power to the camera. When the current battery reaches 4% charge, the
battery module automatically selects the next lowest charged battery to supply power to the camera.
QUAD BATTERY MODULE LEDS
Each battery compartment of the QUAD BATTERY MODULE has an LED above the battery eject button that
shows the status of the corresponding battery. The table below describes what each LED color/flashing mode
means.
COLOR/FLASHING DESCRIPTION
Off No battery
Green Battery is charged, but is not in use
Green flashing Battery in use
Yellow flashing Battery has 10 minutes of run time remaining
Red flashing Battery has 5 minutes of run time remaining
Red Battery Discharged
Yellow flashing Accessing media (for example, when formatting)

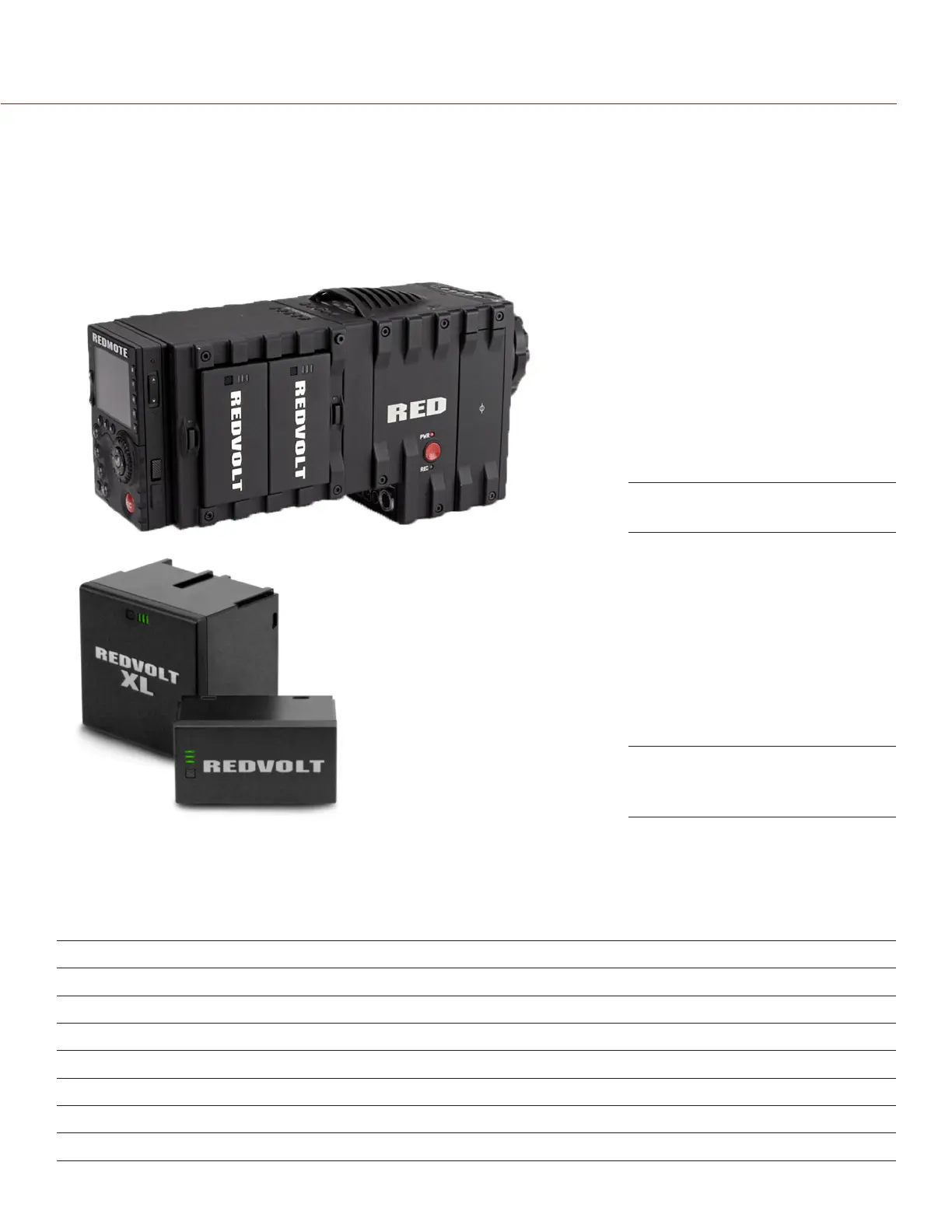

QUAD BATTERY MODULE
REDVOLT XL (left), REDVOLT
(right)
