red lion CUB5 Series User Manual

9
The Security Code determines the programming mode and the accessibility
of programming parameters. This code can be used along with the Program
Mode Lock-out (P-Loc) in the User Input Function parameter (Module 1).
Two programming modes are available. Full Programming mode allows all
parameters to be viewed and modified. Quick Programming mode permits only
the Setpoint value to be modified, but allows direct access to this value without
having to enter Full Programming mode.
Programming a Security Code other than 0, requires this code to be entered
at the CodE prompt in order to access Full Programming mode. Depending on the
code value, Quick Programming may be accessible before the CodE prompt
appears (see chart).
PROGRAMMING SECURITY CODE
000 to 999
USER INPUT
FUNCTION
USER INPUT
STATE
SECURITY
CODE
MODE WHEN “SEL”
BUTTON IS PRESSED
FULL PROGRAMMING
MODE ACCESS
0 Full Programming Immediate Access
not P-Loc
______
1-99 Quick Programming
100-999
CodE prompt
With correct code entry
at
CodE prompt *
0 Programming Lock No Access
Active
1-99 Quick Programming No Access
P-Loc
100-999
CodE prompt
With correct code entry
at
CodE prompt *
Not Active 0-999 Full Programming Immediate Access
* Entering Code 222 allows access regardless of security code.

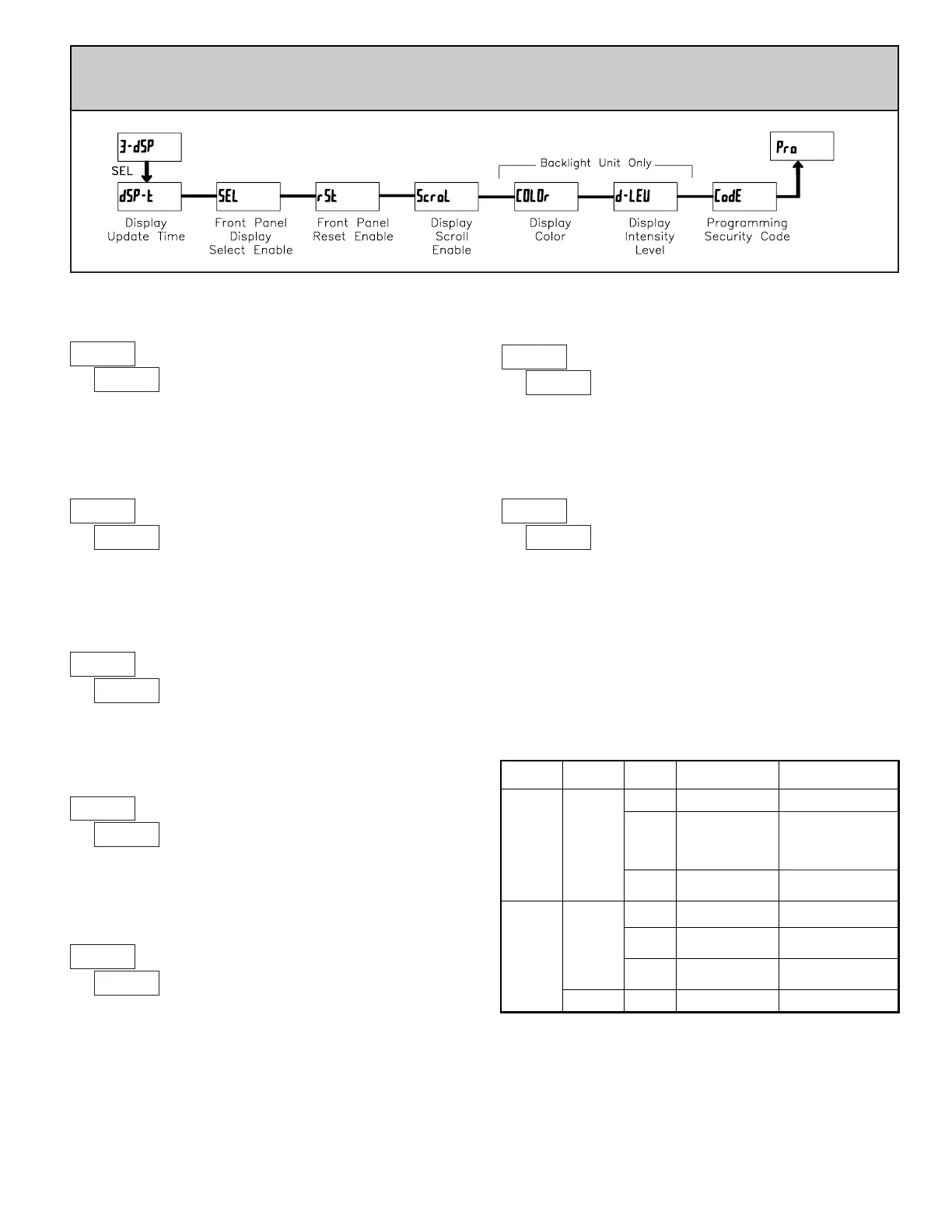

5.3 MODULE 3 - DISPLAY AND F
RONT PANEL B
UTTON
PARAMETERS (3-dSP)
PARAMETER MENU
The yES selection allows the SEL button to toggle through the enabled
displays.
FRONT PANEL DISPLAY SELECT ENABLE (SEL)
This selection allows the RST button to reset the selected value(s).
FRONT PANEL RESET ENABLE (RST)
The yES selection allows the display to automatically scroll through the
enabled displays. The scroll rate is every 4 seconds.
DISPLAY SCROLL ENABLE
NOyES
dSPNO
HI
LO
HI-LO
NOyES
Enter the desired display color, red or green. This parameter is active for
backlight units only.
DISPLAY COLOR (BACKLIGHT UNIT ONLY)
6rnrEd
Enter the desired Display Intensity Level (1-5). The display will actively dim
or brighten as levels are changed. This parameter is active for backlight units only.
DISPLAY INTENSITY LEVEL (BACKLIGHT UNIT ONLY)
1 to 5
ª
«
1
dSP-t
ª
«
yES
SEL
ª
«
dSP
rSt
ª
«
NO
ScroL
ª
«
rEd
COLOr
ª
«
5
d-LEV
ª
«
000
CodE
DISPLAY UPDATE TIME
This parameter sets the display update time in seconds.
10.5 2
seconds
After Quick
Programming with
correct code entry at
CodE prompt *

red lion CUB5 Series Specifications

General

Display Type	LCD
Operating Temperature	0 to 50°C
Mounting	Panel Mount
Input Types	Thermocouple, RTD, Frequency, Pulse
Storage Temperature	-40 to 60 °C
Bezel	IP65 rated
Communication Interface	RS-485
