6 Installation of Rear Sump Components
The MAX
®
E-Series aquariums are divided into 2 parts, Aquarium and the Rear Sump that houses all of the filtration and circulation systems.
1. Detachable Surface Skimmer
2. Protein Skimmer
3. Media Rack
4. Carbon
5. Circulation Pump
6. Pump Outlet Nozzle
7. Filter Sponge
8. Multiport Bulkhead
9. Flow Grill / Plug
10. Accessory kit
11. Return pump outlet port (for upgrade)
12. Heater (not supplied)
13. Chiller Pump (not supplied)

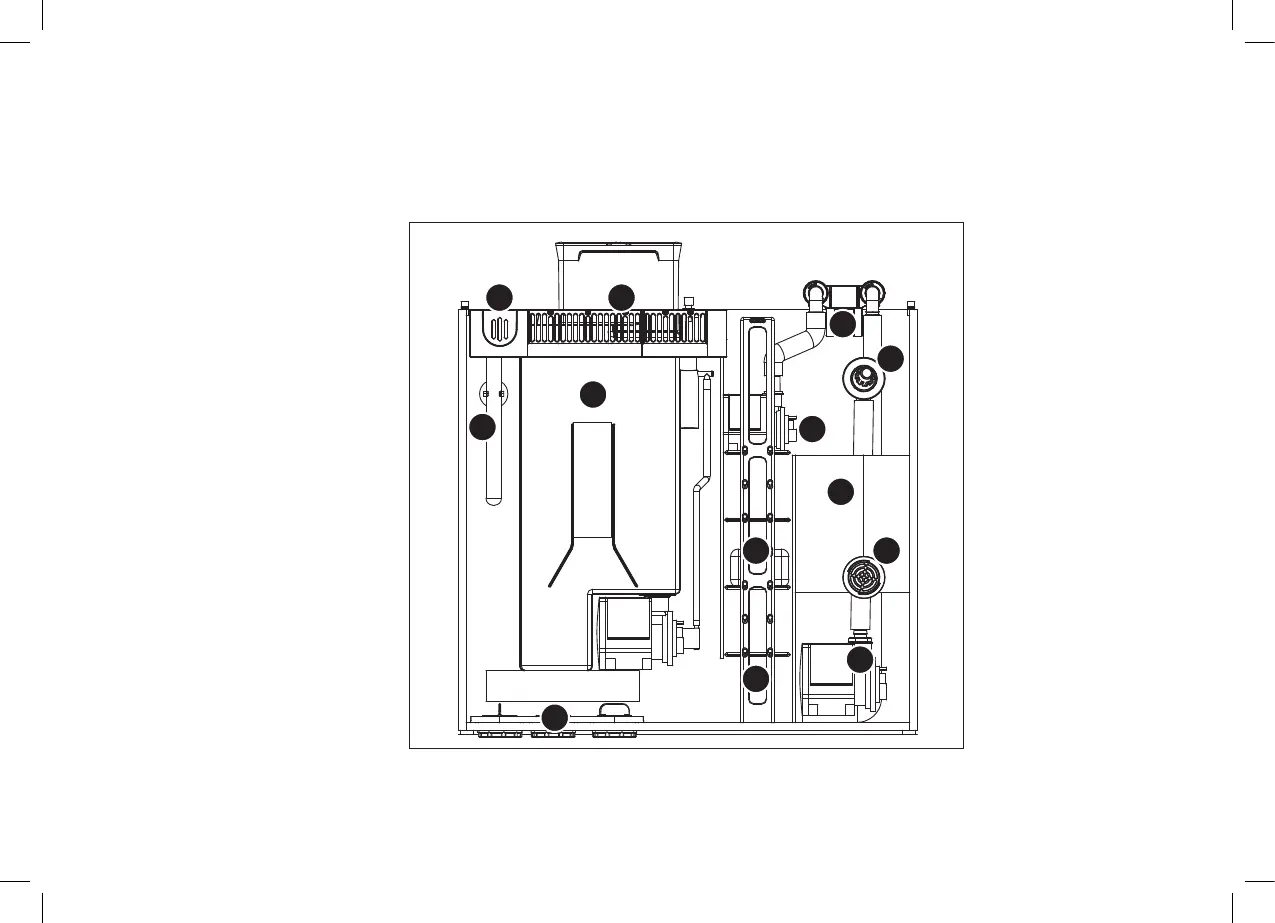

E-170 rear sump component assembly diagram shows
position of optional heater, chiller pump and piping
10
11
13
9
7
2
5
6
3
1
8
4
12

Red Sea MAX E Series Specifications

General

Model	MAX E-170, MAX E-260
Skimmer	Included
Available Colors	Black, White
Integrated Power Center	Yes
Heater	Not included
Total System Volume	170 liters (45 gal), 260 liters (69 gal)
Display Tank Volume	Varies by model
Rear Sump Volume	Varies by model
Lighting	LED
Lighting Control	WiFi controlled ReefBeat app
Return Pump	2150 lph / 570 gph (MAX E-170), 2150 lph / 570 gph (MAX E-260)
Cabinet	Marine-Spec cabinet
Glass Thickness	12 mm (1/2")
Protein Skimmer	Included
Dimensions	57.5 cm x 57.5 cm x 142 cm / 22.6" x 22.6" x 56" (MAX E-170), 90 cm x 57.5 cm x 142 cm / 35.4" x 22.6" x 56" (MAX E-260)
