RED ONE Quick Start Guide

RIGHT HANDLE INSTALLED

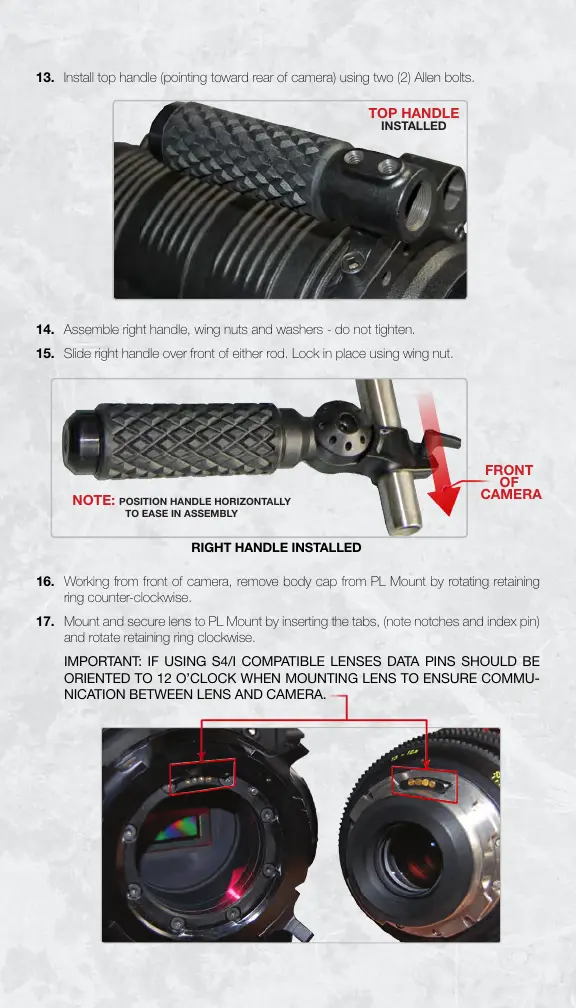

13. Install top handle (pointing toward rear of camera) using two (2) Allen bolts.
14. Assemble right handle, wing nuts and washers - do not tighten.
15. Slide right handle over front of either rod. Lock in place using wing nut.
16. Working from front of camera, remove body cap from PL Mount by rotating retaining
ring counter-clockwise.
17.
Mount and secure lens to PL Mount by inserting the tabs, (note notches and index pin)
and rotate retaining ring clockwise.
IMPORTANT: IF USING S4/I COMPATIBLE LENSES DATA PINS SHOULD BE
ORIENTED TO 12 O’CLOCK WHEN MOUNTING LENS TO ENSURE COMMU-
NICATION BETWEEN LENS AND CAMERA.
TOP HANDLE
INSTALLED
FRONT
OF
CAMERA
NOTE:
POSITION HANDLE HORIZONTALLY
TO EASE IN ASSEMBLY

RED ONE Specifications

General

Frame Rates	1-120 fps
Lens Mount	PL Mount
Recording Format	REDCODE RAW
Sensor Size	24.4mm x 13.7mm
Resolution (pixels)	4520 x 2540
Video Output	HD-SDI
Weight	10 lbs (body only)
Recording Media	CF card
