RED ONE Quick Start Guide

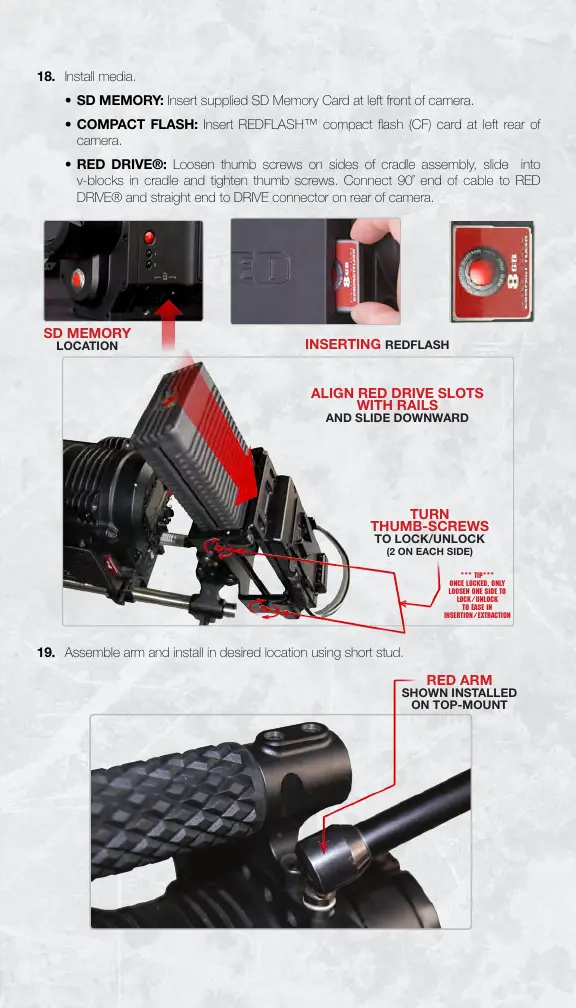

18. Install media.
• SD MEMORY: Insert supplied SD Memory Card at left front of camera.
• COMPACT FLASH: Insert REDFLASH™ compact ash (CF) card at left rear of
camera.
• RED DRIVE®: Loosen thumb screws on sides of cradle assembly, slide into
v-blocks in cradle and tighten thumb screws. Connect 90˚ end of cable to RED
DRIVE® and straight end to DRIVE connector on rear of camera.
19. Assemble arm and install in desired location using short stud.
SD MEMORY
LOCATION
INSERTING REDFLASH
ALIGN RED DRIVE SLOTS
WITH RAILS
AND SLIDE DOWNWARD
TURN
THUMB-SCREWS
TO LOCK/UNLOCK
(2 ON EACH SIDE)
RED ARM
SHOWN INSTALLED
ON TOP-MOUNT
*** TIP***
ONCE LOCKED, ONLY
LOOSEN ONE SIDE TO
LOCK/UNLOCK
TO EASE IN
INSERTION/EXTRACTION

RED ONE Specifications

General

Frame Rates	1-120 fps
Lens Mount	PL Mount
Recording Format	REDCODE RAW
Sensor Size	24.4mm x 13.7mm
Resolution (pixels)	4520 x 2540
Video Output	HD-SDI
Weight	10 lbs (body only)
Recording Media	CF card
