Electric / Hydraulic
System
Start Battery
Power Supply for
Electric/Hydraulic System
Output Wire (Blue)
Tow-Pro
Brake Signal
3 OPERATION
3.5 Electric / Hydraulic Brakes
The Tow-Pro
™
Elite is designed to operate both electric and electric / hydraulic braking
systems in both Proportional and User Controlled Modes. The unit requires no user input
to select the electric/hydraulic mode.

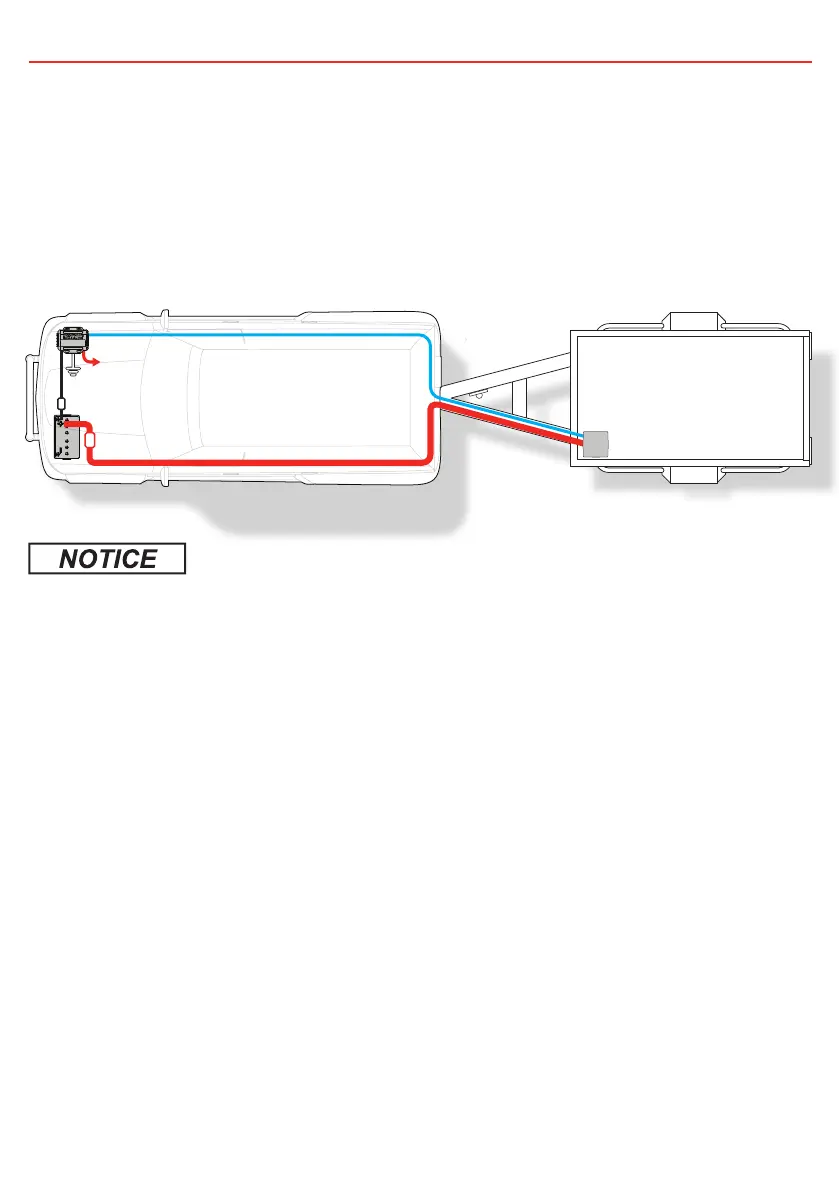

Most Electric / Hydraulic braking systems will require a separate 12V power feed for the
hydraulic pump. For example:
Always refer to the manufacturer’s specifications for your Electric / Hydraulic
Braking system prior to installation and usage of the Tow-Pro™ Elite.
3.6 24V Vehicle Systems
The Tow-Pro
™
Elite is designed to operate 12V trailer brakes from both 12V and 24V
vehicle electrical systems; The acceptable voltage input range is between 9V and 32V.
The Tow-Pro
™
Elite will operate from a 24V electrical system without the need for other
external devices.
For 24V installation, refer to section 2.2 ‘Wiring the brake controller’.
13
