Redarc EBRH-ACCV2 User Manual

2 INSTALLATION

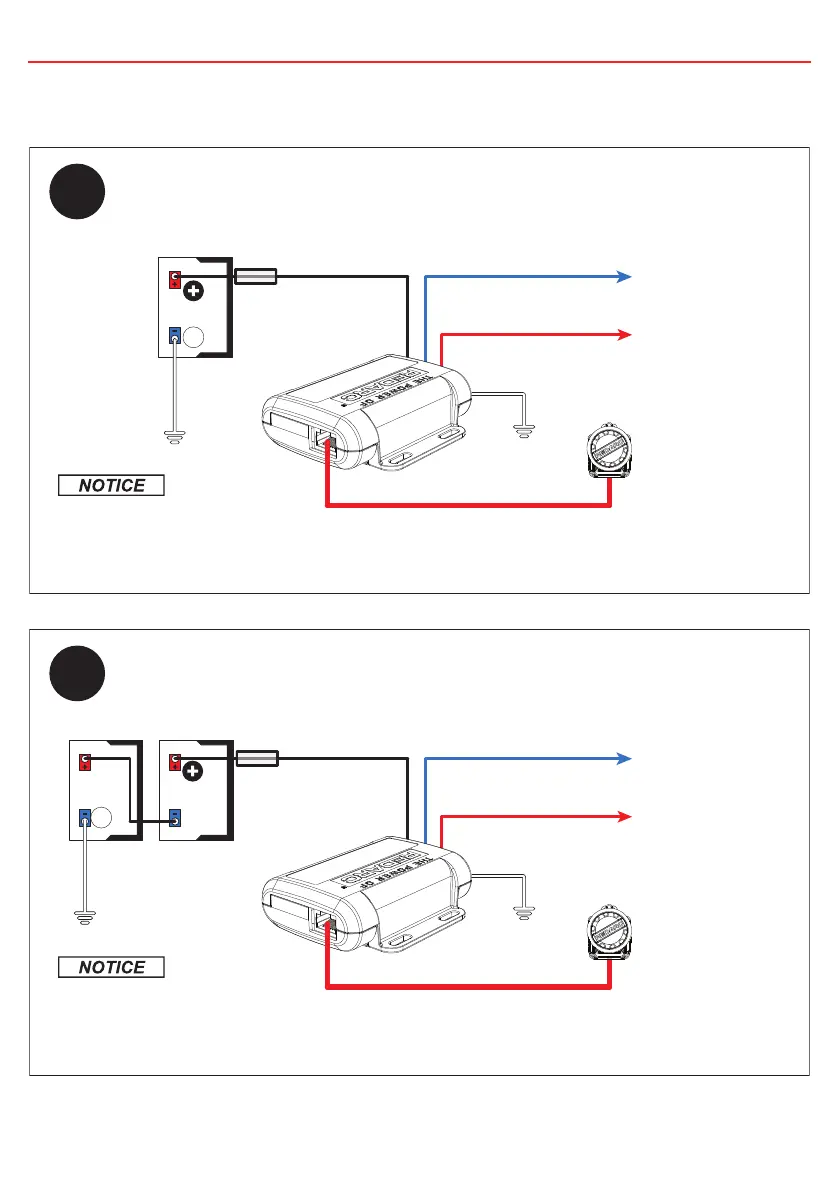

2.2.2 Wiring Diagrams
To 24V Vehicle
Brake Light trigger
(refer to section 2.2.1)
To 12V Trailer
Brakes
Blue
Red
25A Fuse or
30A Circuit Breaker
(CBK30-EB)
24V Vehicle
Start Battery
Ground
White
Black
-
Dash mount
controls for
Tow-pro.
24V
INPUT
1.25mm²
1.25mm²
3.0mm²
3.0mm²
The Input Power (Black) wire should be
connected directly to the positive terminal of
the start battery via a Fuse or Circuit Breaker
and not through an Ignition source.
To 12V Vehicle
Brake Light trigger
(refer to section 2.2.1)
To 12V Trailer
Brakes
Blue
Red
25A Fuse or
30A Circuit Breaker
(CBK30-EB)
12V Vehicle
Start Battery
Ground
White
Black
-
Dash mount
controls for
Tow-pro.
12V
INPUT
1.25mm²
1.25mm²
3.0mm²
3.0mm²
The Input Power (Black) wire should be
connected directly to the positive terminal of
the start battery via a Fuse or Circuit Breaker
and not through an Ignition source.
