3 OPERATION

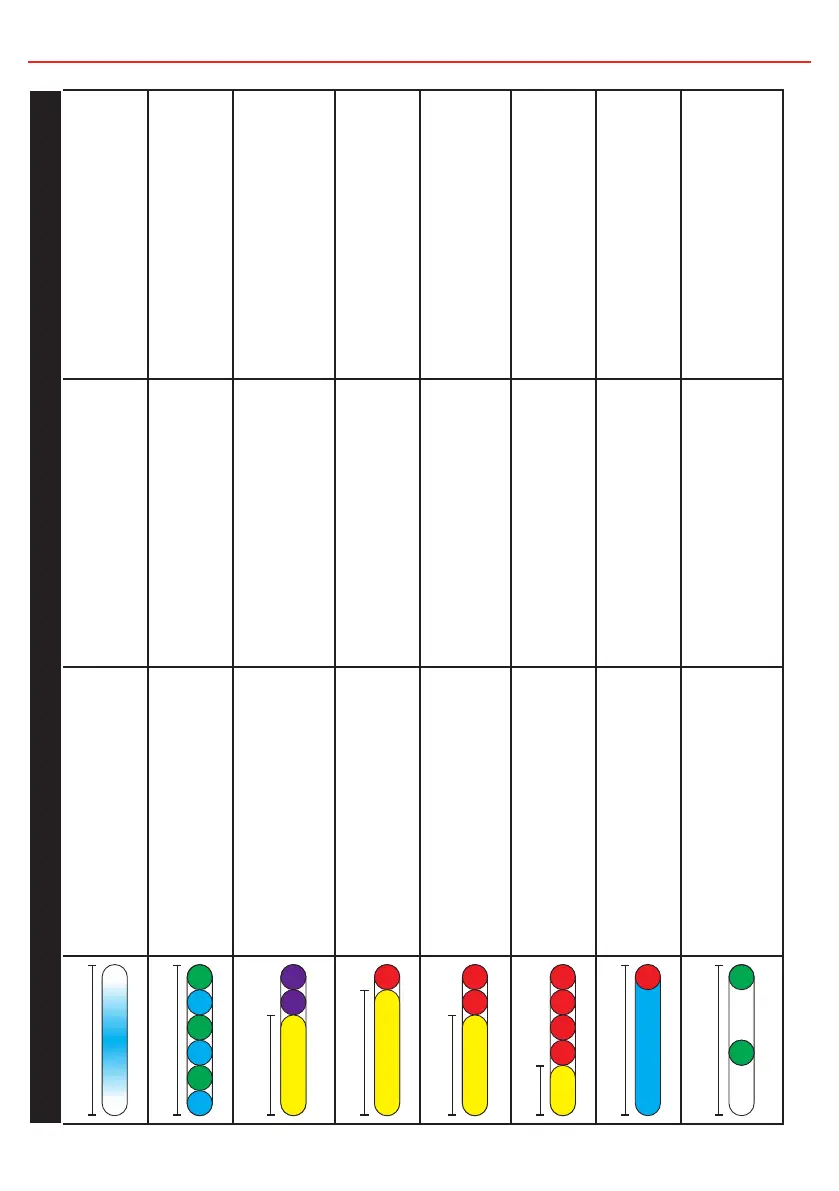

LED Sequence Symptom/Description Possible Cause Suggested Action
1 Second
BLUE Breathing when the Override button is pushed
The trailer brakes have not been detected
Check the trailer plug and all connections to the brake controller.
Time
Flashing a Blue/ Green sequence.
The unit is in the process of calibrating, this is NOT a fault.
Keep driving normally and the unit will calibrate
1 Second
The LED is YELLOW and flashes PURPLE twice
There is a fault with the unit and/or the installation.
Check and clean trailer plug connection. Please contact REDARC or visit your local auto-electrician for further assistance
1 Second
The LED is YELLOW and flashes RED once
There is a short circuit somewhere on the brake output line (BLUE wire)
Check all wiring from the unit to the trailer brakes for any wiring faults, including at trailer plug
1 Second
The LED is YELLOW and flashes RED twice
There is a short circuit somewhere on the brake light circuit (RED wire)
Check all wiring from the unit to the brake light trigger for any wiring faults
1 Second
The LED is YELLOW and flashes RED four times
There is a break/open circuit somewhere along the Tow-Pro
™
Elite’s
Ground circuit (WHITE wire)
Check all ground connections and associated wiring for any wiring faults
1 Second
The LED is BLUE and flashes RED once a second
The unit has detected that the Remote Cable is faulty
Check the Remote cable is fully plugged in, otherwise replace
1 Second
The LED is flashing GREEN only whilst braking
Loss of supply power or Circuit Breaker cycling
Check supply (BLACK) wire for connection problems and check circuit breaker/fuse is not blown and is the correct value
