3 USER GUIDE
It is recommended to set the SoC or Voltage Alarm level above the Load Disconnect Turn OFF level and below the Turn
ON level. This will ensure that, in the event the loads have been disconnected, when reconnection occurs the Alarm
does not sound.
The Set Alarm Voltage setting sets the Voltage at which the alarm will
sound. The Alarm Voltage can be set to OFF.
The Low Voltage Alarm setting will sound an alarm when the battery Voltage
reaches a particular setting.
The Low SOC Alarm setting will sound an alarm when the battery State-of-
Charge reaches a particular setting.
The Set Alarm SOC setting sets the percentage of State-of-Charge at
which the alarm will sound. The Alarm SOC can be set to from 0 - 100%.
The MaxCharge Current setting refers to the amount of current permitted by
The Manager30 to charge the battery, up to a maximum of 30 Amps.

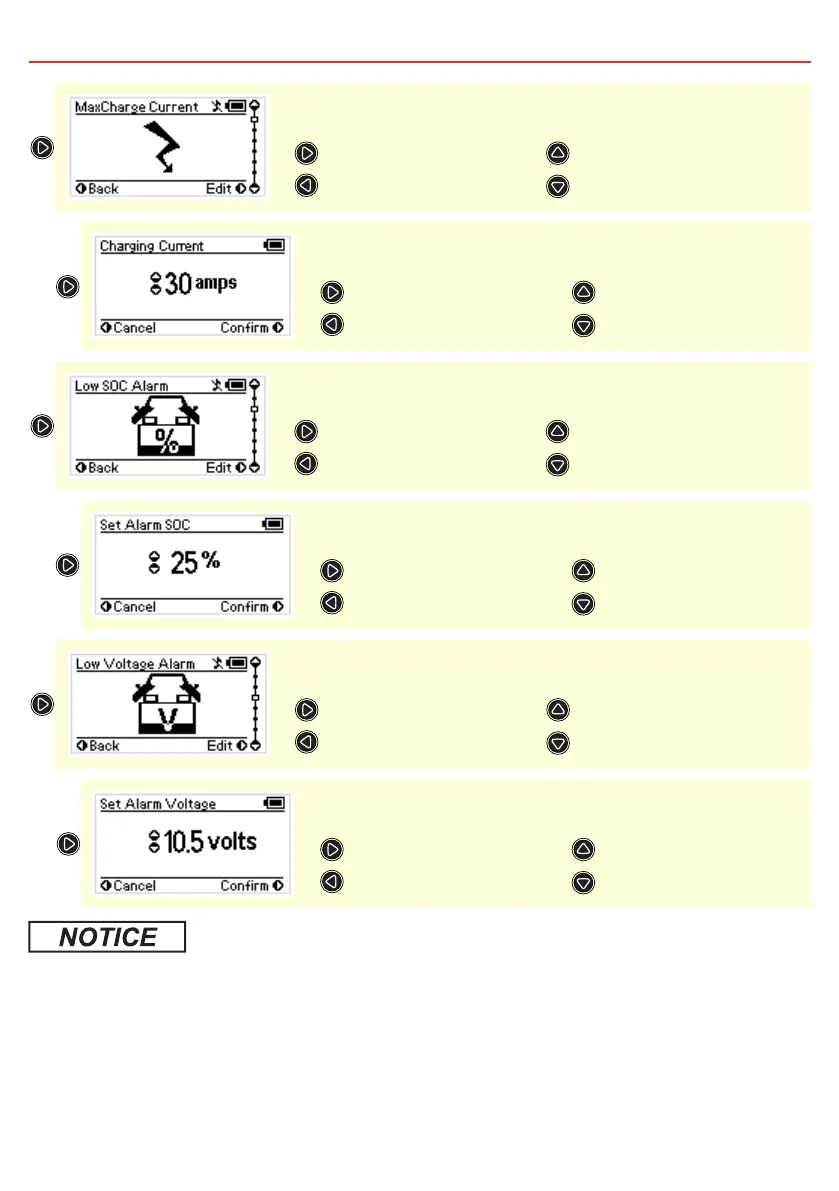

Set Charging Current Screen
Advanced Settings Screen
R-Bus Diagnostics Screen
Low SOC Alarm Screen
If the Charging Current setting is set lower than 30 Amps the excess current
will be used to supply the loads running from the battery under charge.
Conrm Setting
Cancel Setting
Increase Charging Current
Decrease Charging Current
Set Alarm SOC Screen
Advanced Settings Screen
MaxCharge Current Screen
Low Voltage Alarm Screen
Conrm Setting
Cancel Setting
Increase Alarm SOC
Decrease Alarm SOC
Set Alarm Voltage Screen
Advanced Settings Screen
Low SOC Alarm Screen
Load Disconnect Screen
Conrm Setting
Cancel Setting
Increase Alarm Voltage
Decrease Alarm Voltage

Redarc MANAGER 30 Specifications

General

Battery Charging Capacity	30A
Input Voltage Range	9-32V DC
Output Voltage	12V DC
Standby Current Draw	<100mA
DC Input Fuse Rating	40A
Efficiency	Up to 95%
Battery Types	AGM, Gel, Calcium, LiFePO4
Protection Features	Over-voltage, under-voltage, over-temperature, short-circuit, reverse polarity
