REDCORD AXIS - How to Use the Redcord Rope Lock

Page 7

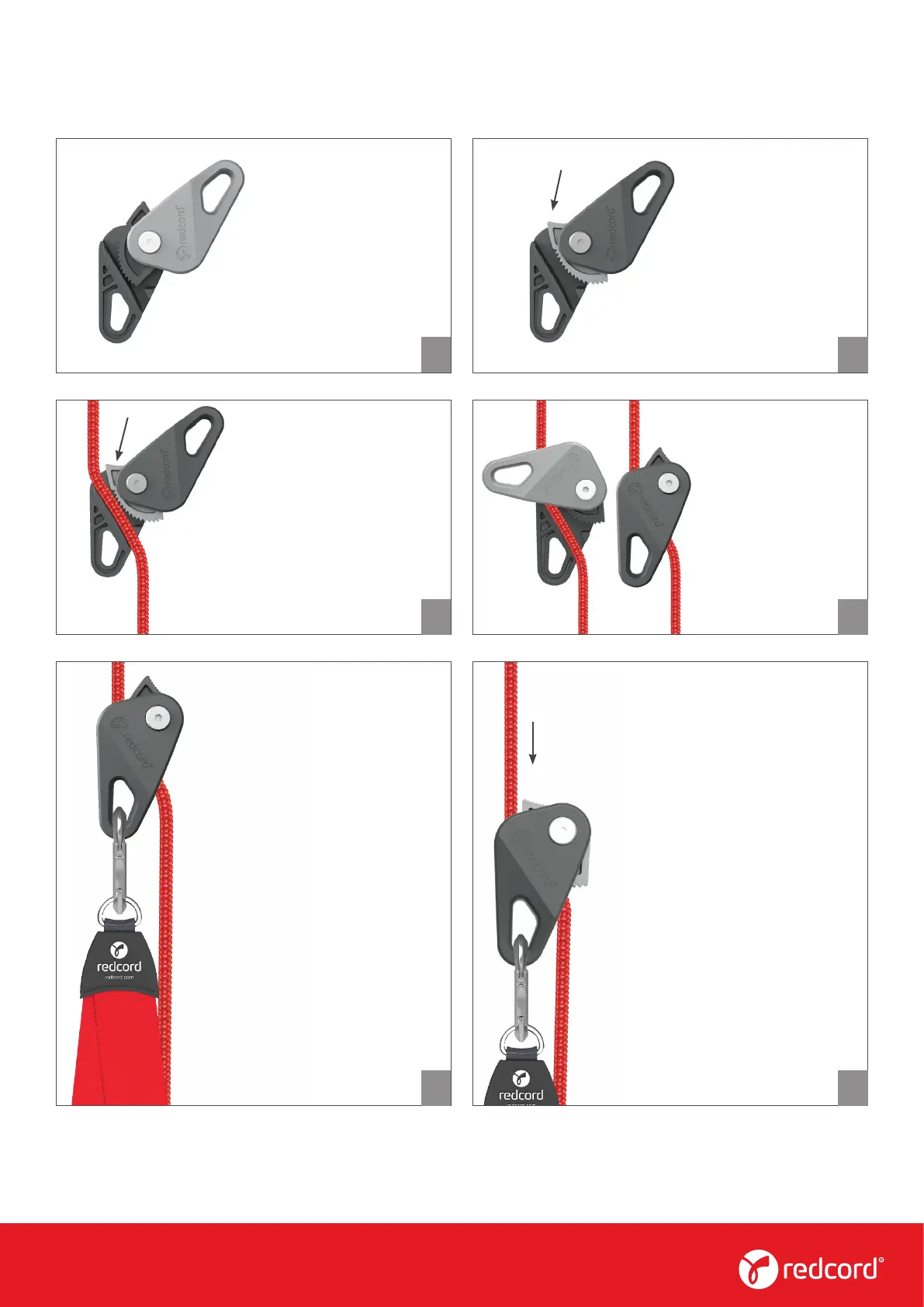

How to use the Redcord Rope Lock
Flip the front cover upwards. Press down the cam.
Twist the cover
back to its original
position.
1 2
4
6
3
5
Place the rope on the
inside of the rope lock,
while pushing the cam
down.
Attach the carabiner
to the rope lock, and
attach the straps to the
webbing.
To move the rope lock,
hold down the cam and
pull the rope lock up
down the rope.
WARNING:
Do not use upside down!
Check before use.
