2.0 FIRST SETUP, LIFTING MACHINE FROM PALLET
The machine stands vertically up on the pallet. To remove the pallet and get the machine horizontal on the
ground, handle as follows (see fig.1 ):
1. Open the rear cover
2. Connect a cable to lift point
* ensure the cable/crane/lift truck can lift minimum 4000 Kg.(9000 lbs).
3. Raise machine with pallet 50 mm (2")from the ground.
4. Remove pallet by sliding it over the bottom 3-point pins
* Do not crawl under the machine
5.Lower the machine gentle till 3-point connecting plates contact the ground.
6. Drop the machine further, enabling it to rotate on its front roller.
7. Gently lower the machine till it stands on the front and rear roller.
8. Connect the machine to a tractor.
* Use correct tractor; see specifications.
9. Lift the machine from the ground.
10. Remove the rear roller lock pins. Put pins in hole 4.
11. Lower the machine on the ground and adjust the angle of 90 degrees with top link
@ this angle is very important, see further.
12. Adjust tractor lower link stabilizers to limit sideways movement to about 100 mm (4”).
13. Fix tine angle adjustment lever to machine (separately packed with tines in box).
14. Assemble the tines. Use some grease on the shank.
15. PTO length, see 3.1
16. When machine is taken of the pallet, remove the upper plug of the gearbox and replace it with the
supplied breather.

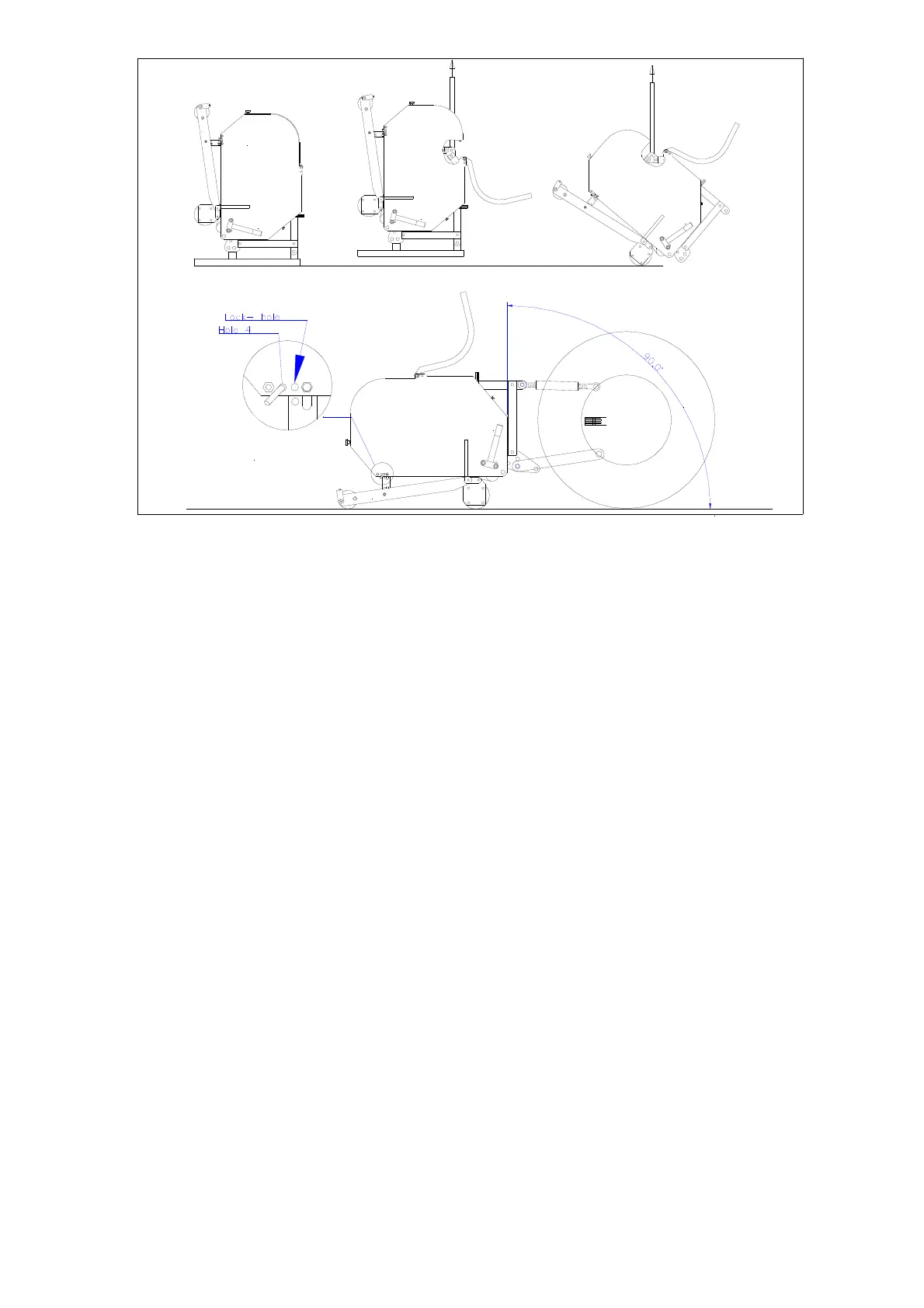

Fig.1.
