3.0 GENERAL CONTROLS

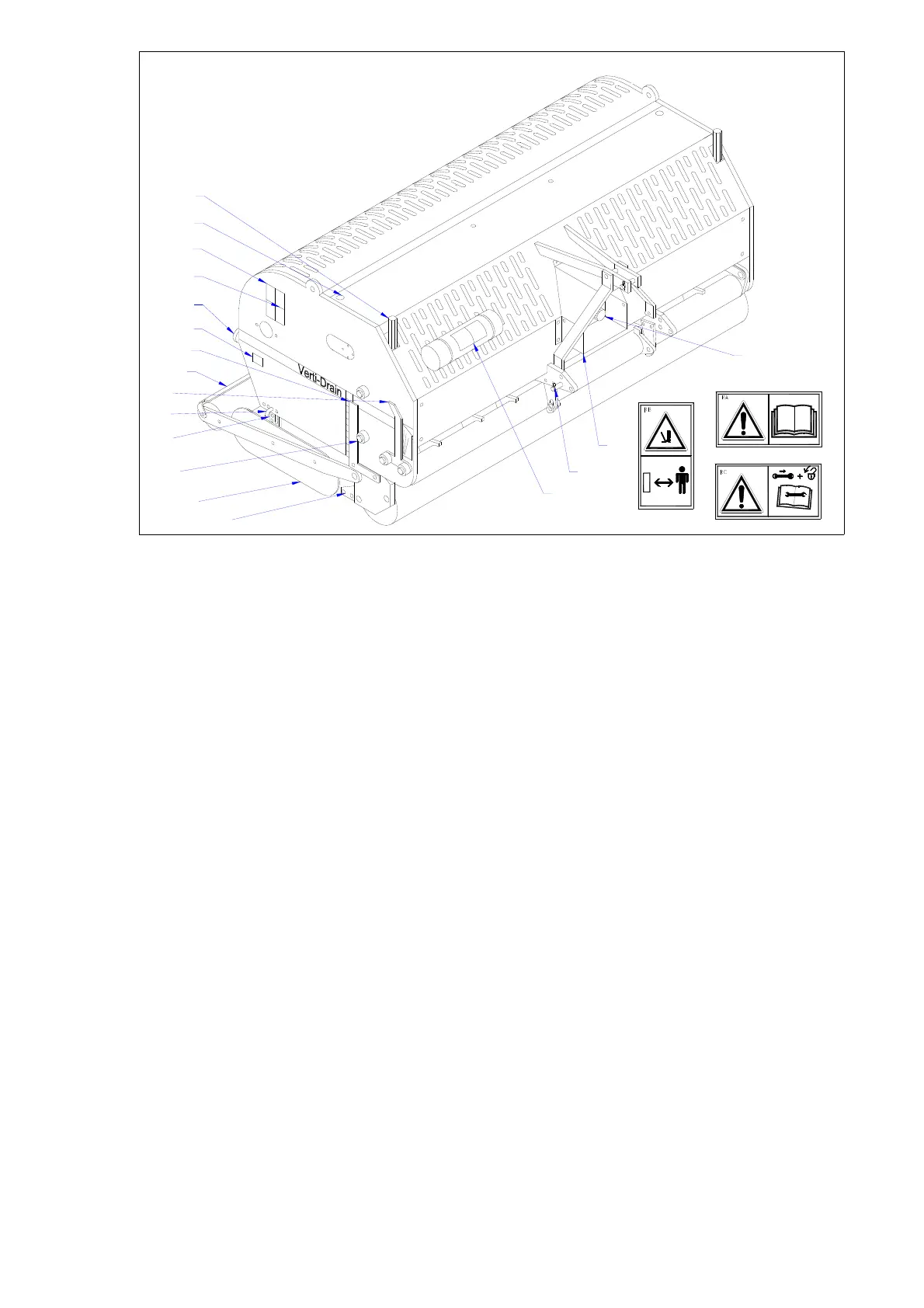

In fig.2. some key details of the machine are shown, as follows:
1. Safety decall RA, before using machine read manual. Decall is located at the toolbox with
manuals and combi-tool.
2. Safety decall RB, Keep 4 mtr (14') distance to the machine
3. Safety decall RC, turn engine off when maintaining or repairing machine
* All decalls should be on the machine and understood all the time
4. Serial number of machine can be found inside
5. Spindle to adjust working depth.
6. Working depth indicator. Note the indication is related to maximum tine length.
7. Tine angle adjustment lever.
8. Knurled nuts for securing the rear access door of the VERTI-DRAIN.
* rear access door should always be closed and free of any damage.
9. Rubber stops for supporting the rear access door when opened.
10. Rear roller support guide.
11. Rear roller lock pin. Lock only when machine is stored or roller is raised from the ground
with hollow coring tines
12. Front roller support lock nuts.
13. Lower 3-point linkage pins. May be re-positioned and facing in or out.
14. PTO protection covers at the machine. Top one can be removed for maintenance.
15. PTO input shaft. Slipclutch should be assembled at this shaft.
16. Rear roller scraper, can be adjusted.
17. Protection plate rear roller support. Should be adjusted at 30 mm (1”) from the ground.
18. Front roller scraper, can be adjusted and be used for turf hold down fingers( option).
2
3
4
6
7
8
10
11
12
16
17
18
1
13
14
5
9
15
Fig.2.
