WARNING:
KNOB ALIGNMENT IS VERY IMPORTANT DURING THE INSTALLATION OF
YOUR SHOWER AND MUST BE CORRECT FOR CORRECT OPERATION.

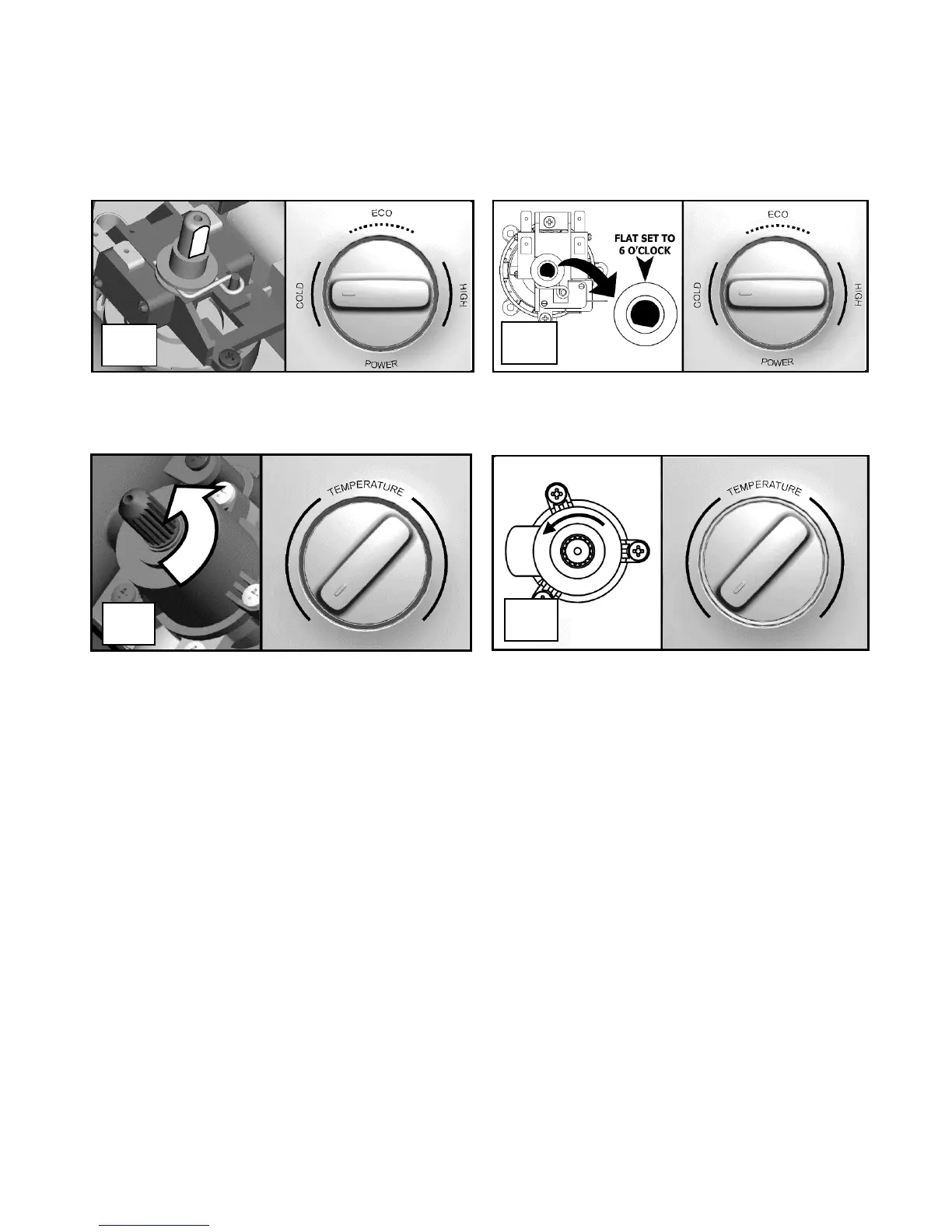

5.
Ensure
power select Knob is aligned to the ‘COLD’ (9 o‘clock position), whilst the ‘D-Shaft’ in
the product is aligned as shown (fig.10).
6.
Ensure
temperature Knob is aligned to the end of the blue arc as shown, whilst the ‘spindle’ in
the product is rotated
fully
anti-clockwise as shown (fig.11).
7. Fully tighten all wall fixing screws.
8. Refit the front cover, and secure by replacing the top and bottom fastening screws.
9.
Ensure
that power select knob has been correctly aligned by ensuring that all 3 power settings
can be selected.
10.
Ensure
that temperature knob has been correctly aligned by turning from minimum to maximum
flow (approximately 1 full turn) mid position should be at approximately 1 o’clock.
11. If you have not yet done so, assemble your ‘Smart-Fit Accessories’ (fig.12).
12. Set the power select knob to ‘COLD’ position and check the temperature knob is turned fully
anti-clockwise to allow the unit to fill with water prior to any heat settings being selected.
13. Place seal washer into the shower hose nut then tighten to the shower outlet pipe.
Operate the shower first without the handset to flush out particles.
Fit the seal washer into the other shower hose nut and then fit the handset.
Operate the shower as in ‘How to operate your shower’ section, then please check:
That the water gets to a satisfactory temperature and water flow can be adjusted by the
temperature knob.
That the power select knob operates in all 3 positions.
Check again for leaks.
That the holes in the shower handset are not blocked.
14.
DEMONSTRATE OPERATION TO USERS, AND LEAVE THIS BOOK WITH THEM FOR
FUTURE REFERENCE.
