2.2 Main Area Instruction

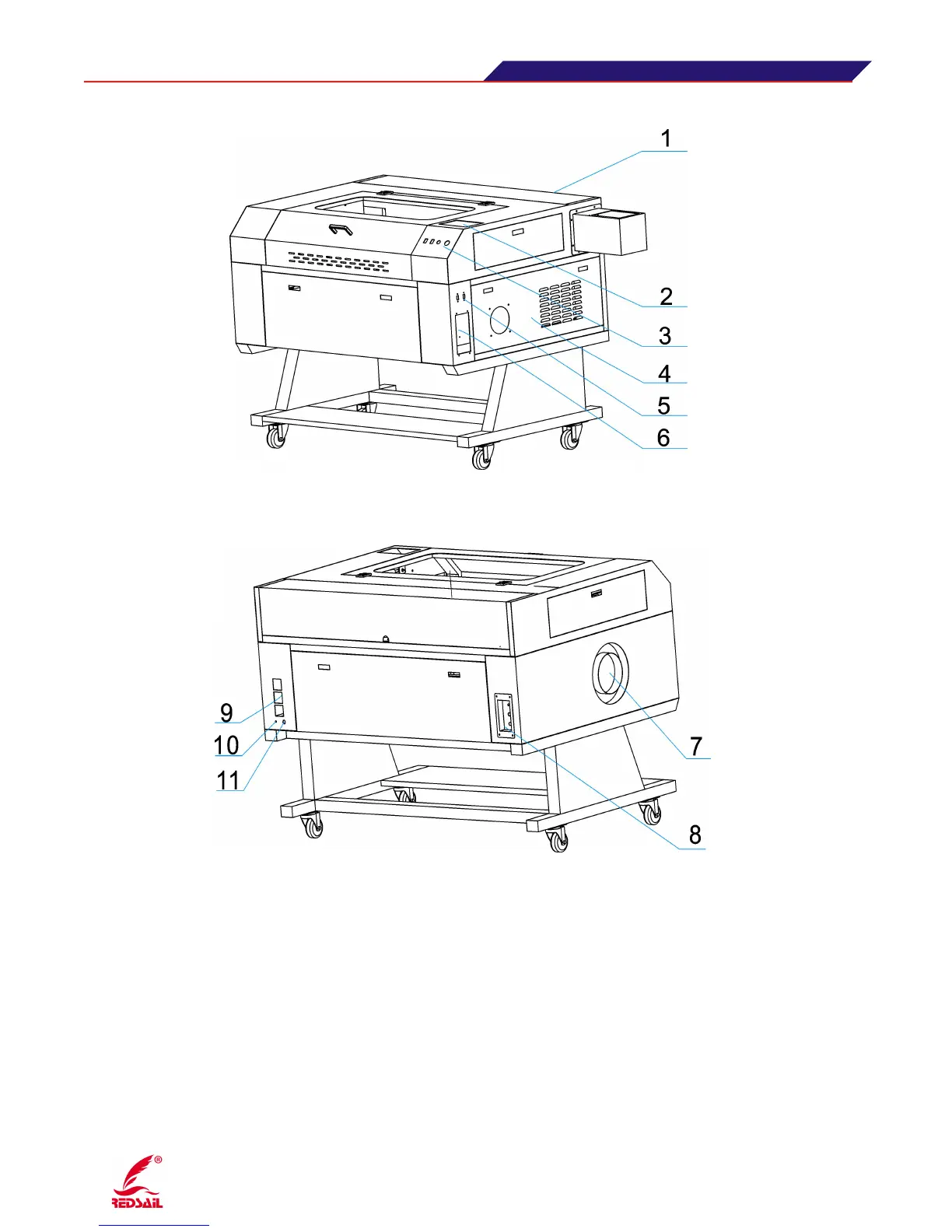

Note：1·Back Cover（For laser Tube, refer to 3.1), 2·Control Panel, 3·Auxiliary Control Area
4·Control Box， 5·USB output， 6·Main control area ， 7·Ventilator connection area
8·water pipe/air pipe installation， 9·Output socket， 10·port for ground wire， 11·Air plug
installation
