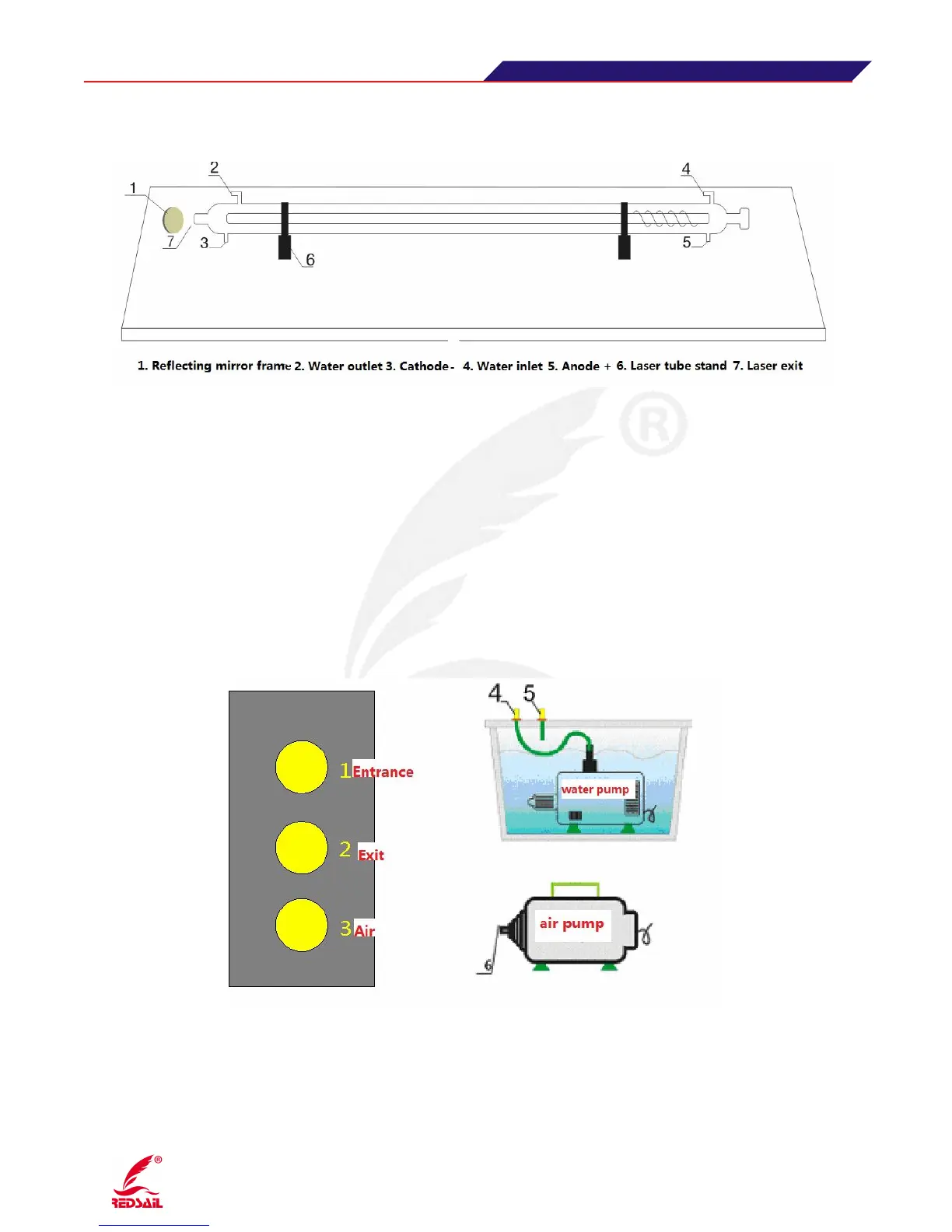

（Figure 1)
Please refer to Figure 1 when you install the laser tube. According to Figure 1, solder the
anode wire (pink /thick line), the cathode wire (black/ blue line) in the correct location of laser
tube.(While soldering, please don¡t keep the electric soldering iron touching the welding point
in so long a time in case it burn out the laser tube),poor soldering is not allowed. After finish
soldering, please package the welding point with high voltage tape. After soldering, connect
the in/out water pipe with the entrance/exit on the laser machine (The connection of laser tube must
complete with the principle water come in from the anode and out from the cathode).
3.2
Connection of water pipe, air pipe, air pump and water cooler
3.2.1.1 (If your machine is matched with water pump)
附图 2（2-1）
1.Water inlet 2. Water outlet 3. Air inlet 4. Water outlet 5. Water inlet 6. Air outlet
Step：1--4 2--5 3--6
