please pay attention to the water temperature, and keep the water temperature less than
35℃ during the machine working, if temperature too high or too low, the laser machine
may not work peoperly, even to damage the laser tube. In winter, when you use laser
machine, keep the water temperature in the water chiller not less than 2℃. After finish one
day work, you must blow away the water in the laser tube in case frosts crack the laser
tube.
3.3 Ventilator and Ventiduct Connection

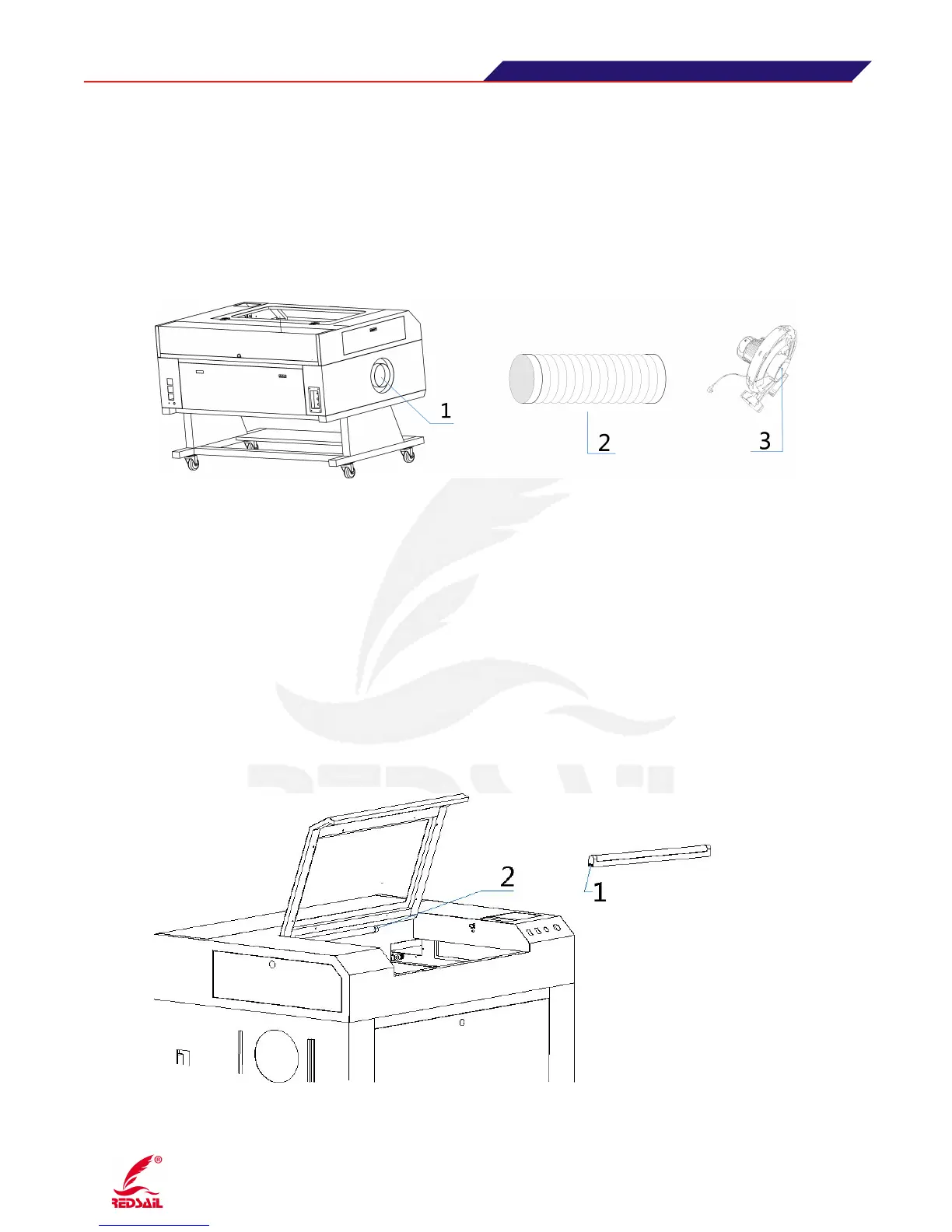

（Figure 3）
Note：1.Installation hole 2.Vent-Pipe 3.Exhausted Fan
Connection for the exhausted fan, Vent-pipe and machine:
(1)Put the air exhausted fan in well-ventilated place before connection(best placed out of the window),
for better exhaustsmoking。
(2) Following the above figure shows,put the ventiduct respectively connected with air exhaust fan
air inlet and machine’s air outlet, and for a reasonable Fixed,to improve the machine exhaust
efficiency
